Запчасти Bobcat 700s FUEL VALVE KIT (S/N 14084 & Below) ACCESSORIES & OPTIONS

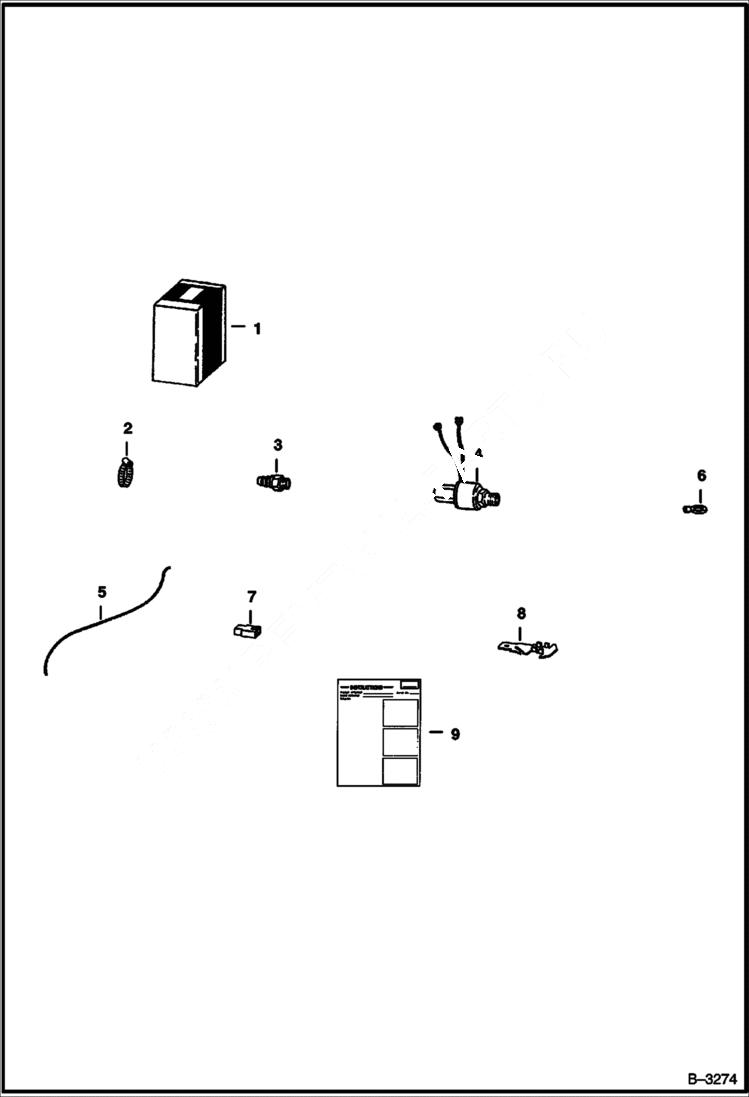

Схема запчастей Bobcat 700s - FUEL VALVE KIT (S/N 14084 & Below) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

6560569

KIT valve fuel - Ref. 2-9

2

42HS04

CLAMP, HOSE Was 6515575 - A

3

6505813

CONNECTOR

4

7024822

SOLENOID, FUEL Was 6559117

5

WIRE NSS

6

EYELET NSS

7

CONNECTOR NSS

8

TERMINAL NSS

9

6556562

INSTRUCTIONS

Выбрано товаров: 9
