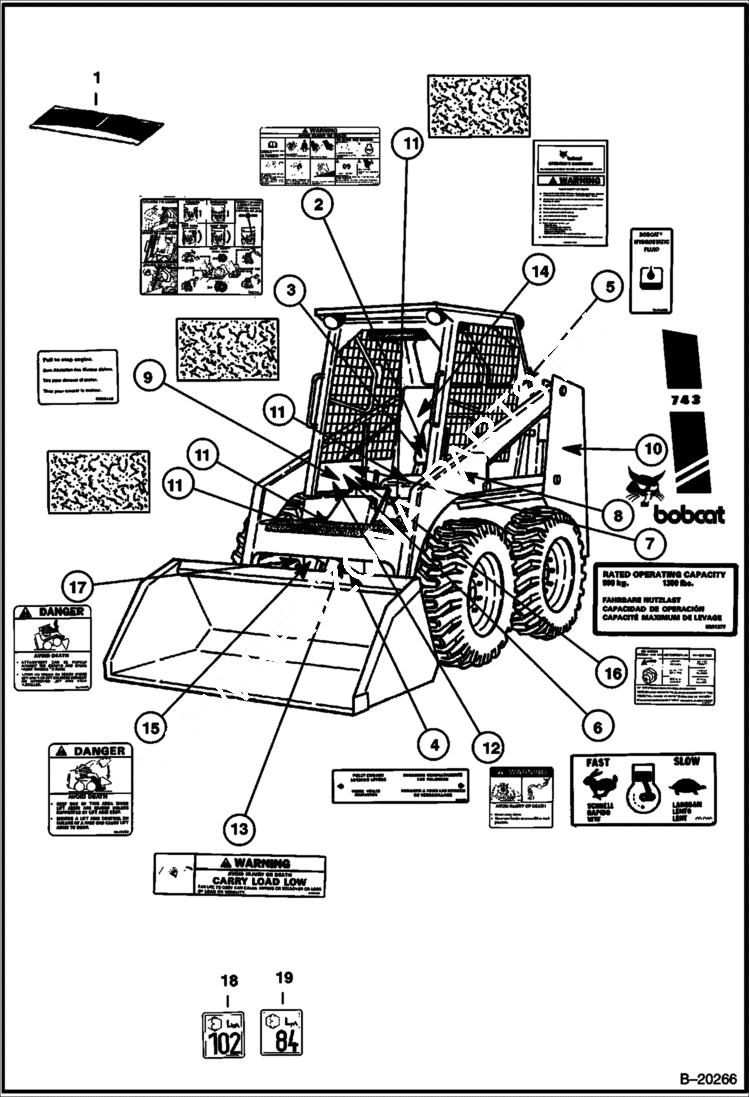

Запчасти Bobcat 700s DECALS ACCESSORIES & OPTIONS

1

6569281

KIT See Illustration DECALS/ B20265 See Illustration DECALS/ B20266 DECAL - REF. 2-9, 11-17 & REF. 2-6, 8, 9 & 17

2

6579510

DECAL warning

3

6708294

DECAL operating - Was 6708249 - B,D

4

6561383

DECAL, OPERATION 5 Bob-Tach locking levers

5

6565990

DECAL, OIL HYD 5 hydrostatic fluid fill

6

6735140

DECAL, THROTTLE Was 6557565 - A

7

6561377

DECAL capacity

8

6557413

DECAL LH - Bobcat head

8

6557412

DECAL RH - Bobcat head

9

6562448

DECAL engine stop

10

6569086

DECAL model no. - L.H. - Not in Decal Kit - shown

10

6569087

DECAL model no. - R.H. - Not in Decal Kit - not shown

11

6553976

SAFETY TREAD 127 x 203 mm (5 x 8'')

11

6577949

SAFETY TREAD 6.8'' x 8.75'' - Was 6553977 - A

11

6553978

SAFETY TREAD 35'' x 8''

11

6554100

TREAD 76,2 x 152,4 mm (3 x 6'')

12

6710358

DECAL warning

13

6579528

DECAL, WARNING carry load low - Was 6565254 - A

14

6567795

HANDBOOK, OPERATOR'S W/WIRE ROPE

14

6558309

WIRE ROPE bulk - sold per foot - Also Order (2) of 6558310 sleeve - Was 6558305 - A

14

6558310

SLEEVE wire rope

15

6579639

DECAL danger - Was 6702302 - A

16

6565927

DECAL preheat

17

6579509

DECAL danger - Was 6702301 - A

18

6579385

DECAL sound level warning

19

6579404

DECAL sound level warning
