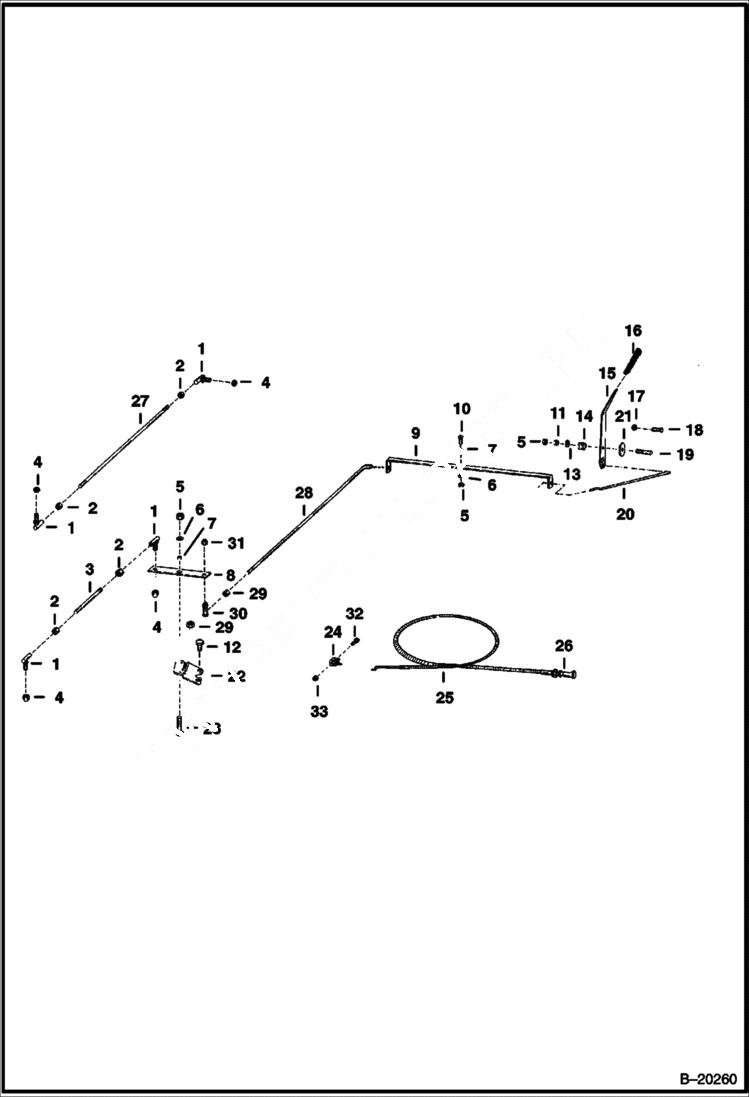

Запчасти Bobcat 700s THROTTLE & FUEL SHUT-OFF POWER UNIT

1

6554858

BALL JOINT ball joint - fine threads

2

62D4

NUT fine threads

3

6562494

ROD

4

86D4

NUT fine threads

5

85D6

NUT, 5

6

872229

WASHER

7

6544654

BUSHING

8

6563532

BELLCRANK

9

6562491

LEVER

9

6557196

LEVER

10

6557432

BOLT Was 3327196B - A

11

7D6

NUT

12

1CM620

BOLT Was 4CM620 - A

13

27E6

WASHER 5

14

6562126

SPRING

15

6563940

LEVER

16

6553557

GRIP

17

57D6

NUT 5

18

37C616

BOLT carriage - Was 6514537 - A

19

7C640

BOLT

20

6562490

ROD

21

6562127

WASHER

22

6562495

BRACKET

23

17C620

BOLT

24

6514780

CLAMP

25

6562496

CABLE fuel shut off - 52'' (1320,8 mm)

25

6564758

CABLE, THROTTLE fuel shut off - 70'' (1778 mm)

26

25E17

WASHER 5

27

6562817

ROD fine threads

28

6564371

ROD course threads

29

61D4

NUT 5 course threads

30

6557291

BALL JOINT ball joint - Course Threads

31

85D4

NUT 5

32

12D10

NUT Was 14D000010B - B

33

85G1008

SCREW Fuel Shut-Off Cable
