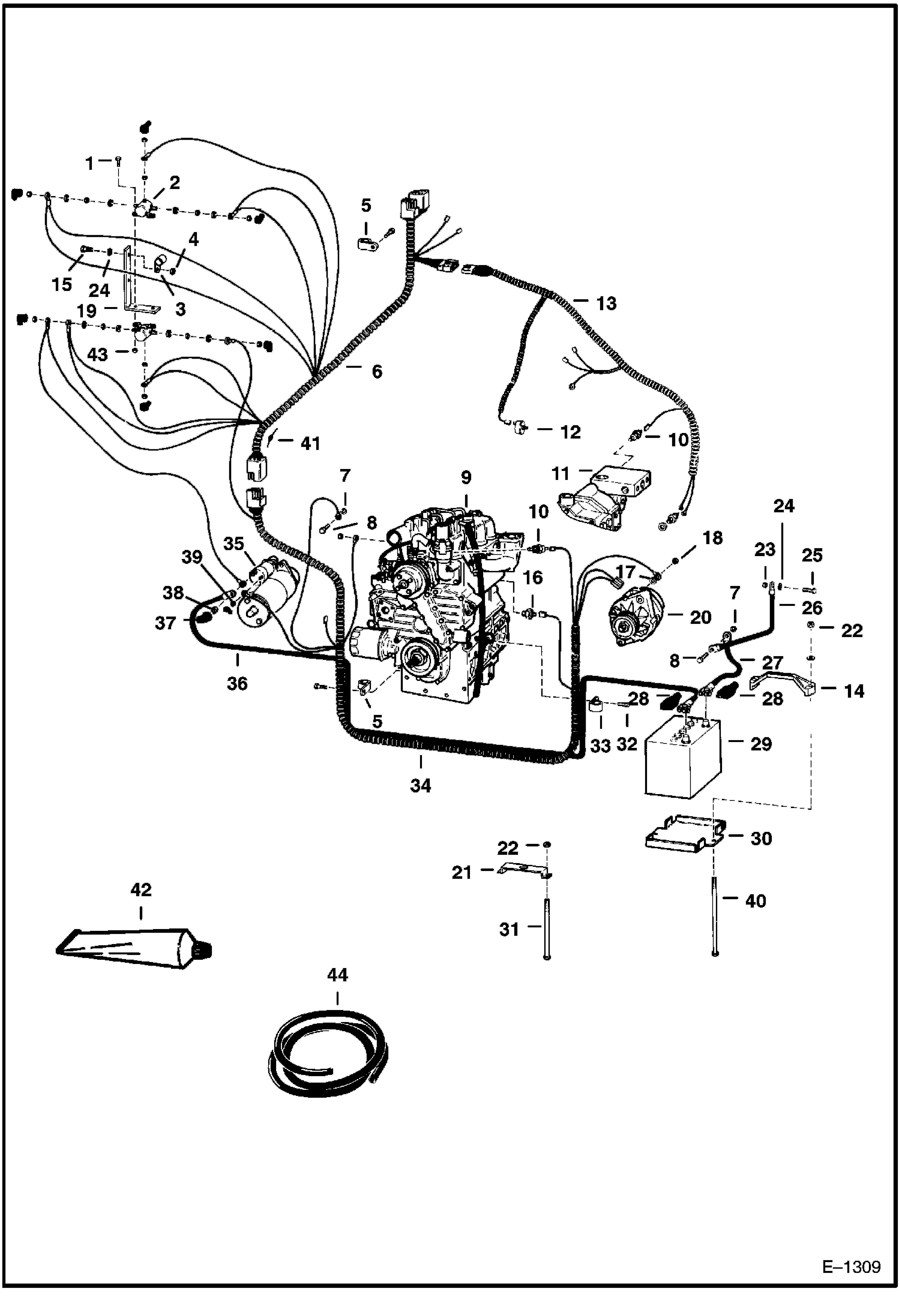

Запчасти Bobcat 700s ENGINE ELECTRICAL CIRCUITRY (S/N 14084 & Below) ELECTRICAL SYSTEM

1

17C412

BOLT 5

2

6659319

SOLENOID Was 6632186 - A

3

30H41

CLIP

4

61D5

NUT

5

30H42

CLAMP

6

6562260

HARNESS

7

6E6

WASHER

8

17C610

BOLT

9

ENGINE See Illustration ENGINE/ E1332

10

6598384

SWITCH eng. & hydro. temp.

11

PUMP See Illustration HYDROSTATIC PUMP/ D1392 HYDRO.

12

6631695

SWITCH hydrostatic oil pressure - Was 6519715 - A

13

6563038

HARNESS

14

6569203

CLAMP plastic

15

7C520

BOLT

16

6969775

SWITCH, OIL PRESSURE eng. oil pressure - Was 6652576 - A

17

6E4

WASHER 10

18

1DM6

NUT Was 4DM6 - A

19

6563483

BRACKET

20

ALTERNATOR See Illustration ALTERNATOR/ B18939

21

CLAMP NLA - Order Ref. 14 & 40

22

59D5

NUT 5

23

83D5

NUT 5

24

6E5

WASHER

25

35C512

BOLT Was 31C000512B - A

26

6563025

CABLE

27

6553094

CABLE Was 6562905 - A

28

2356058

BOOT

29

6665032

BATTERY, DRY 700 AMP Was 6665031 - A

29

6630153

BATTERY CAP

30

6561733

MOUNT

31

BOLT NLA - Order 6569203, clamp & 6569623, bolt - Was 6562473 - A

32

6CM1220

BOLT

33

30H48

CLIP

34

6563170

HARNESS

35

STARTER See Illustration STARTER/ B18466

36

6564991

CABLE W/Ref. 44

37

6560172

COVER

38

61D6

NUT 5

39

12D8

NUT

40

6569623

BOLT

41

3675725

DIODE

42

6599360

SEALANT, ELEC .3 OZ electrical - tube - 3 oz

43

61D4

NUT 5

44

6563505

CONDUIT bulk - Sold Per Foot
