Запчасти Bobcat 700s ENGINE & ATTACHING PARTS (Ford Engine) POWER UNIT

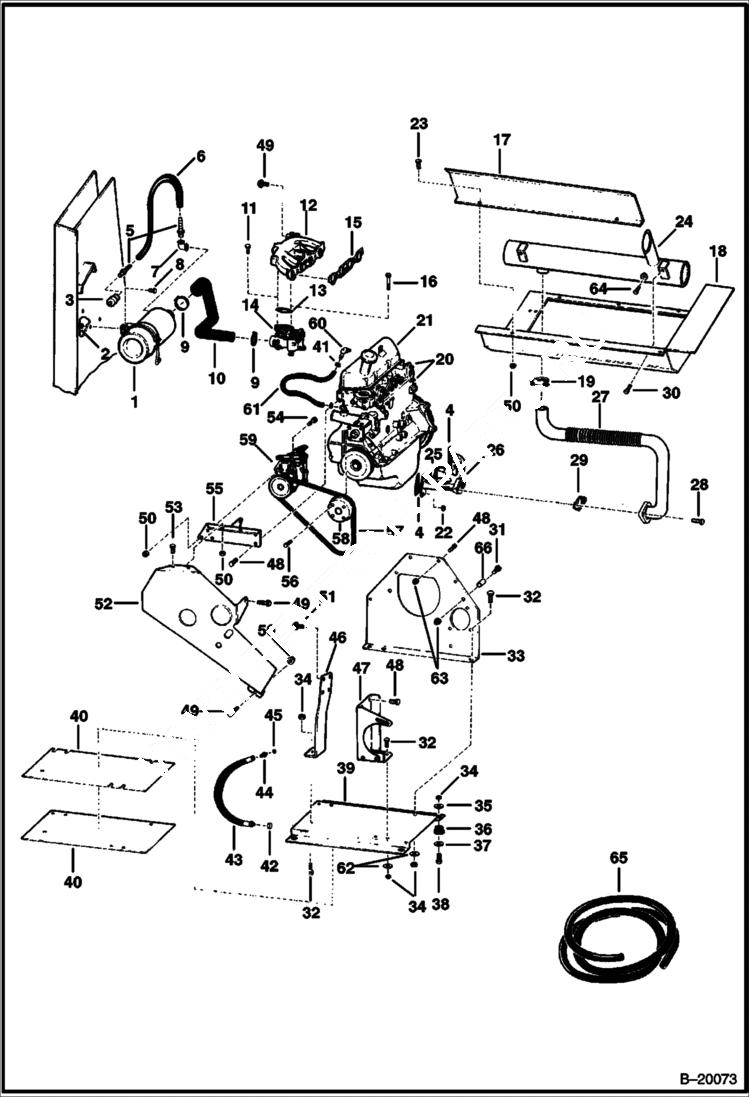

Схема запчастей Bobcat 700s - ENGINE & ATTACHING PARTS (Ford Engine) POWER UNIT

Артикул

Название

Примечание

Количество

1

CLEANER See Illustration AIR CLEANER/ B18366 AIR

2

57D5

NUT flange

3

1735188

INDICATR

4

6512509

GASKET

5

6505813

CONNECTOR

6

HOSE NLA - 24'' (609,6 mm) - Order Ref. 65

7

24F1

ELBOW

8

17C512

BOLT 5

9

42H32

HS CLAMP5 Was 42H000024B - B

10

6557457

HOSE

11

17C514

BOLT

12

MANIFOLD NLA - Was 6513491 - A

13

6562991

GASKET

14

CARBURETOR See Illustration CARBURETOR/ B20079

15

GASKET NLA - Was 6512507 - A

16

17C564

BOLT

17

6561285

HEAT SHIELD

18

6562851

MOUNT

19

6677363

CLAMP, FULL CIRCLE Was 657904B - A

20

6598274

STUD

21

ENGINE See Illustration ENGINE/ B18474 FORD

22

85D5

NUT 5

23

37C616

BOLT Was 6514537 - A

24

6514737

MUFFLER, SPARK ARRESTOR

25

GASKET NLA - Was 6512508 - A

26

6559799

MANIFOLD

27

6579371

PIPE Was 6562988 - A

28

6563005

BOLT

29

6559603

GASKET

30

35C610

BOLT 5

31

17C624

BOLT 5

32

31C832

BOLT

33

6562445

MOUNT motor

34

61D8

NUT 5

35

6515817

WASHER

36

6560633

DAMPENER shock

37

6560899

WASHER Front Mounts Only

38

17C836

BOLT

39

6562989

PLATE

40

6563464

COUNTERWEIGHT

41

42H12

CLAMP 10

42

36K6

CAP

43

6553204

HOSE

44

FITTING NLA - Use 1.5'' long, .75 flared end & .5 boss end - Was 6553537 - A

45

6515466

WASHER

46

6554701

BRACKET

47

6557156

BRACKET See BTI233

48

17C612

BOLT 5

49

35C612

BOLT

50

57D6

NUT 5

51

35C512

BOLT

52

6557159

COVER

53

84G3712

BOLT 5

54

35C616

BOLT 5

55

6554841

BRACKET

56

4CM810

BOLT

57

6554888

BELT

58

PULLEY See Illustration WATER PUMP/ B2361

59

GOVERNOR See Illustration HOOF GOVERNOR/ D1491

60

6649955

ELBOW Was 666841B - A

61

6555529

HOSE

62

25E21

WASHER 5

63

61D6

NUT 5

64

866104

PLUG Brass

65

6557720

HOSE bulk-Sold Per Foot

66

6512921

DOWEL

Выбрано товаров: 66
