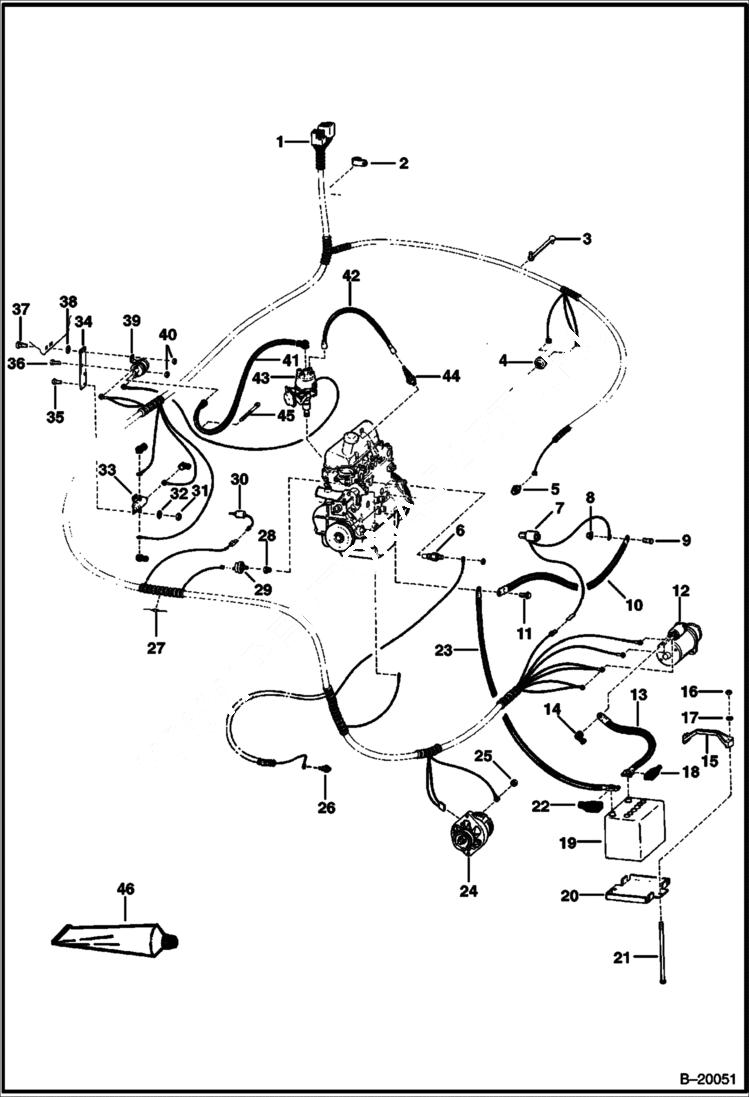

Запчасти Bobcat 700s ENGINE ELECTRICAL CIRCUITRY (S/N 12165 Thru 22999) ELECTRICAL SYSTEM

1

6565047

HARNESS Delco Alternator

1

6565636

HARNESS Delco Alternator

1

6571524

HARNESS Bobcat Alternator

2

30H42

CLAMP

3

6599701

CLAMP

4

6671062

SWITCH hydro. press. - Was 6664577 - A

5

6632633

SWITCH hyd temp - Was 6564560 - A

6

SWITCH See BTI259 NLA - eng. temp. - Was 6599492 - A

6

6658818

SENDER See BTI259 eng temp - threaded connector

7

7024822

SOLENOID, FUEL WAS 6559117

8

83D5

NUT 5

9

17C512

BOLT 5

10

6563025

CABLE Ground

11

BOLT NLA - hex head bolt - 5/16'' x 5/8'' - grade 5 - Was 31C000510B - A

12

STARTER See Illustration STARTER/ B17654 See Illustration STARTER/ B1192

13

6557450

CABLE Positive

14

6560172

COVER

15

7024123

CLAMP Was 6563462 - A

16

59D5

NUT 5

17

25E15

WASHER

18

2356058

BOOT

19

6674687

BATTERY, DRY 600 AMP Was 6669318 - A

19

6630152

CAP

20

6562877

MOUNT

21

6569623

BOLT

22

6599652

BOOT

23

6564716

CABLE Ground - Was 6563042 - A

24

ALTERNATOR See Illustration ALTERNATOR/ B18939 See Illustration ALTERNATOR/ C3312 See Illustration ALTERNATOR/ B18156 See Illustration ALTERNATOR/ B18939A

25

1DM6

NUT Use W/Delco Alternator - Was 4DM6 - A

26

SWITCH See Illustration HYDROSTATIC OIL FILTER/ C2818 FILTER

27

3675725

DIODE

28

19F1

BUSHING

29

6631010

SWITCH, PRESS OIL ENG eng. oil press.

30

6555915

SOLENOID, SHUTOFF FUEL carburetor

31

61D4

NUT 5

32

6E4

WASHER 10

33

6659319

SOLENOID Was 6631939 - A

34

6565055

MOUNT

35

17C410

BOLT 10

36

17C510

BOLT

37

7C516

BOLT

38

6E5

WASHER

39

881097

COIL ASY

40

61D5

NUT

41

WIRE See Illustration IGNITION SYSTEM/ C2144 COIL

42

WIRES See Illustration IGNITION SYSTEM/ C2144 SPARK PLUG

43

DISTRIBUTOR See Illustration IGNITION SYSTEM/ C2144

44

6512536

SPARK PLUG

45

6610510

TIE Was 1715312B - A

46

6599360

SEALANT, ELEC .3 OZ electrical - tube - 3 oz
