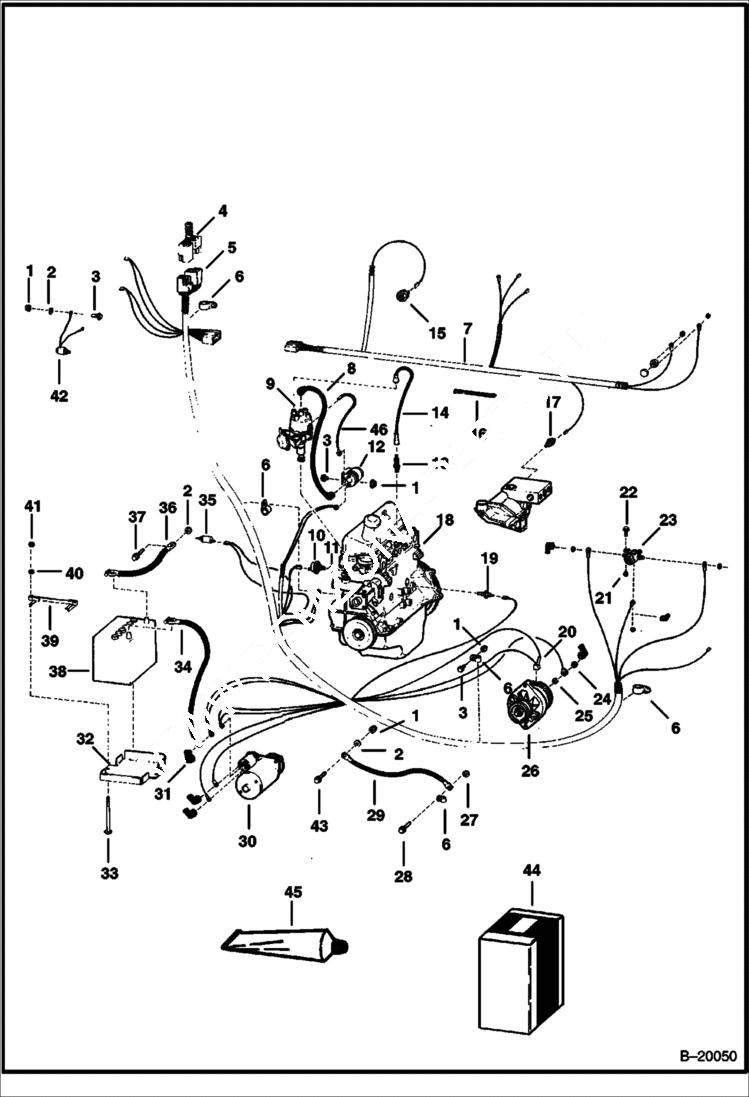

Запчасти Bobcat 700s ENGINE ELECTRICAL CIRCUITRY (S/N 12164 & Below) ELECTRICAL SYSTEM

1

83D5

NUT 5

2

6E5

WASHER

3

10C512

BOLT Was 6553808 - A

4

HARNESS See Illustration CAB ELECTRICAL CIRCUITRY/ B18938 CAB

5

6563013

HARNESS engine

6

30H46

CLIP

7

6563038

HARNESS

8

WIRE See Illustration IGNITION SYSTEM/ C2144 COIL

9

DISTRIBUTOR See Illustration IGNITION SYSTEM/ C2144

10

6631010

SWITCH, PRESS OIL ENG engine pressure

11

19F1

BUSHING

12

881097

COIL ASY

13

6512536

SPARK PLUG

14

WIRES See Illustration IGNITION SYSTEM/ C2144 SPARK PLUG

15

6631695

SWITCH hydrostatic oil pressure - Was 6519715 - A

16

6610510

TIE Was 1715312B - A

17

6598384

SWITCH hydrostatic temperature

18

ENGINE See Illustration ENGINE/ B18474

19

6630821

SWITCH engine temperature

20

3675725

DIODE

21

83D4

NUT 10

22

31C412

BOLT

23

6659319

SOLENOID Was 6632186 - A

24

1DM6

NUT Was 4DM6 - A

25

6E4

WASHER 10

26

ALTERNATOR See Illustration ALTERNATOR/ B18939 See Illustration ALTERNATOR/ C3312 See Illustration ALTERNATOR/ B18156 See Illustration ALTERNATOR/ B18939A

27

6E6

WASHER

28

84G3712

BOLT 5

29

6563025

CABLE ground

30

STARTER See Illustration STARTER/ B17654 See Illustration STARTER/ B1192

31

6560172

COVER

32

6562877

MOUNT

33

6569623

BOLT

34

6557450

CABLE positive

35

6555915

SOLENOID, SHUTOFF FUEL carburetor

36

6564716

CABLE ground

37

BOLT NLA - hex head bolt - 5/16'' x 5/8'' - grade 5 - Was 31C000510B - A

38

6649716

BATTERY Was 6515914 - A

38

6630152

CAP

39

7024123

CLAMP Was 6563462 - A

40

25E15

WASHER

41

59D5

NUT 5

42

7024822

SOLENOID, FUEL WAS 6559117

43

35C512

BOLT Was 31C000512B - A

44

KIT See Illustration IGNITION SYSTEM/ C2144 WIRE

45

6599360

SEALANT, ELEC .3 OZ electrical - tube - 3 oz

46

WIRE NLA - Purchase Locally
