Запчасти Bobcat 700s HYDROSTATIC CIRCUITRY (S/N 15001 & Above) HYDROSTATIC SYSTEM

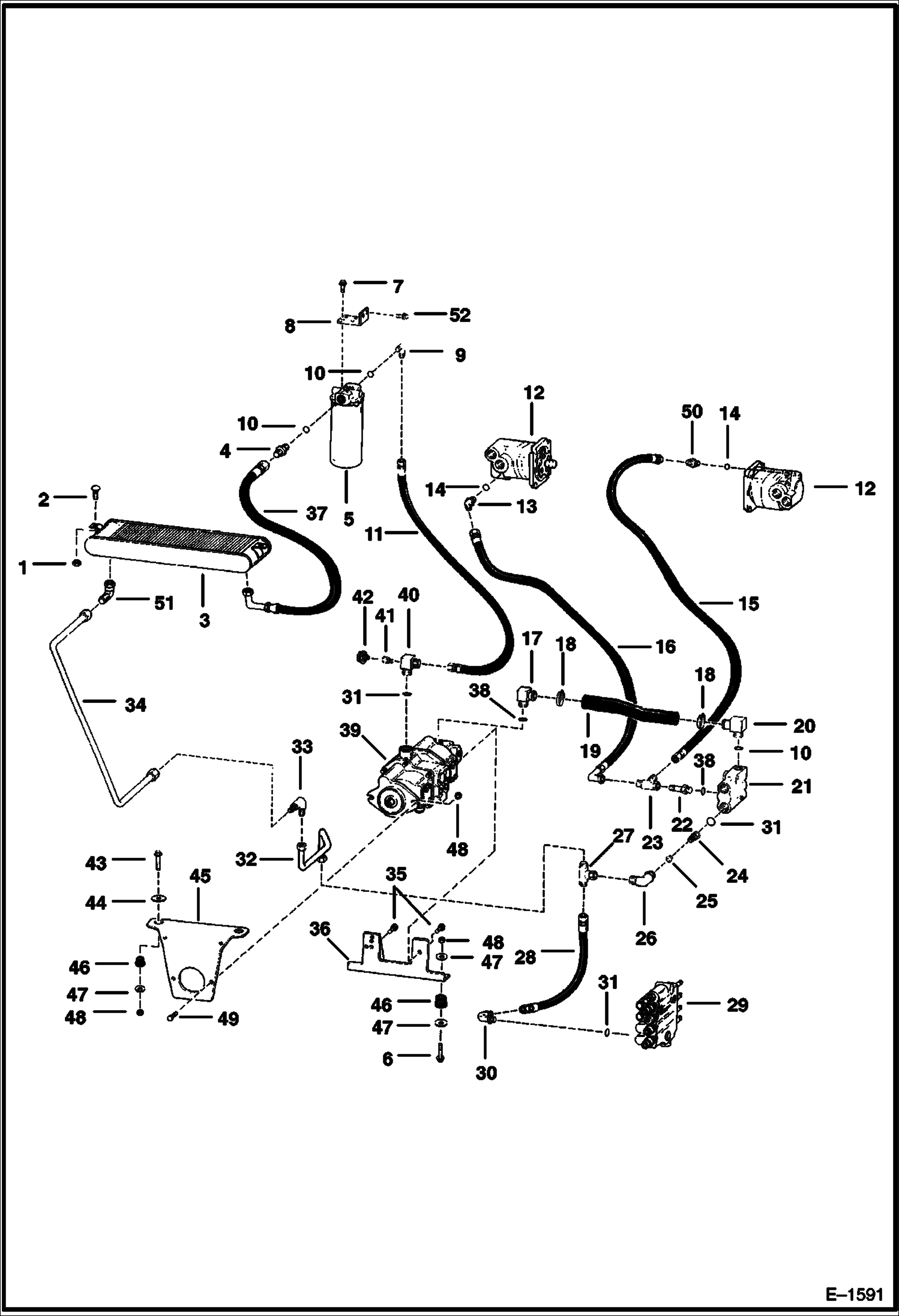

Схема запчастей Bobcat 700s - HYDROSTATIC CIRCUITRY (S/N 15001 & Above) HYDROSTATIC SYSTEM

Артикул

Название

Примечание

Количество

1

85D6

NUT, 5

2

37C616

BOLT Was 6514537 - A

3

6560954

OIL COOLER W/Flat tabs

3

6575655

OIL COOLER

4

17KB1012

FITTING, HYD ELBOW W/Ref. 10 - Was 1302104B - A

4

15KB1012

FITTING, HYD CONNECTOR Was 755055B - A

5

FILTER ASSY See Illustration HYDROSTATIC OIL FILTER/ C2818

6

17C836

BOLT

7

35C610

BOLT 5

8

6565336

BRACKET

9

17K8

FITTING W/Ref. 10

10

79K12

O RING 10

11

6702857

HOSE Was 2525543B - A

11

6571712

HOSE

12

MOTOR See Illustration HYDROSTATIC MOTOR/ D1443

13

18K5

ELBOW W/Ref. 14

14

79K6

O RING 10

15

1518597

HYD HOSE Use W/Elbow - Ref. 13

15

6542521

HOSE Use W/Straight Adapter - Ref. 50

16

6564714

HOSE

17

6567883

ELBOW W/Ref. 38

18

44H20

CLAMP Was 6666864 - A

19

6565344

HOSE

20

1321499

FITTING W/Ref. 10 - Was 6567884 - A

21

6565748

BLOCK port

22

731795

CONNECTR W/Ref. 38

23

13K5

TEE

24

6565425

SPRING

25

6515078

POPPET

26

6565701

ELBOW W/Ref. 31

27

14K7

TEE

28

TUBE NLA - Order 6567419 Hose

28

6567419

HOSE

29

VALVE See Illustration HYDRAULIC CONTROL VALVE/ B18925 BOBCAT

30

6532179

ELBOW W/Ref. 31 - Was 17K000007B - B

31

79K10

O RING 10

32

6565717

TUBE

33

87F7

UNION

33

77F7

ELBOW

34

6565718

TUBE

34

6575656

TUBE

34

6575682

TUBELINE

35

17C816

BOLT

36

6569553

BRACKET

37

6565719

TUBE

37

6567299

TUBE

37

6567026

HOSE

37

6701291

HOSE Was 6579695 - A

38

79K16

O RING 10

39

PUMP See Illustration HYDROSTATIC PUMP/ D1392

40

6565630

ELBOW W/Ref. 31

41

6563922

SNUBBER W/Filter

41

6563920

FILTER

42

6671062

SWITCH hyd. press. - Was 6664577 - A

43

35C840

BOLT

44

6560899

WASHER

45

6562697

MOUNT

46

6560633

DAMPENER rubber

47

6564692

WASHER

48

85D8

NUT, 5

49

17C824

BOLT 5

50

15K5

FITTING W/Ref. 14

51

11K7

ADAPTER

52

84G3712

BOLT 5

Выбрано товаров: 64
