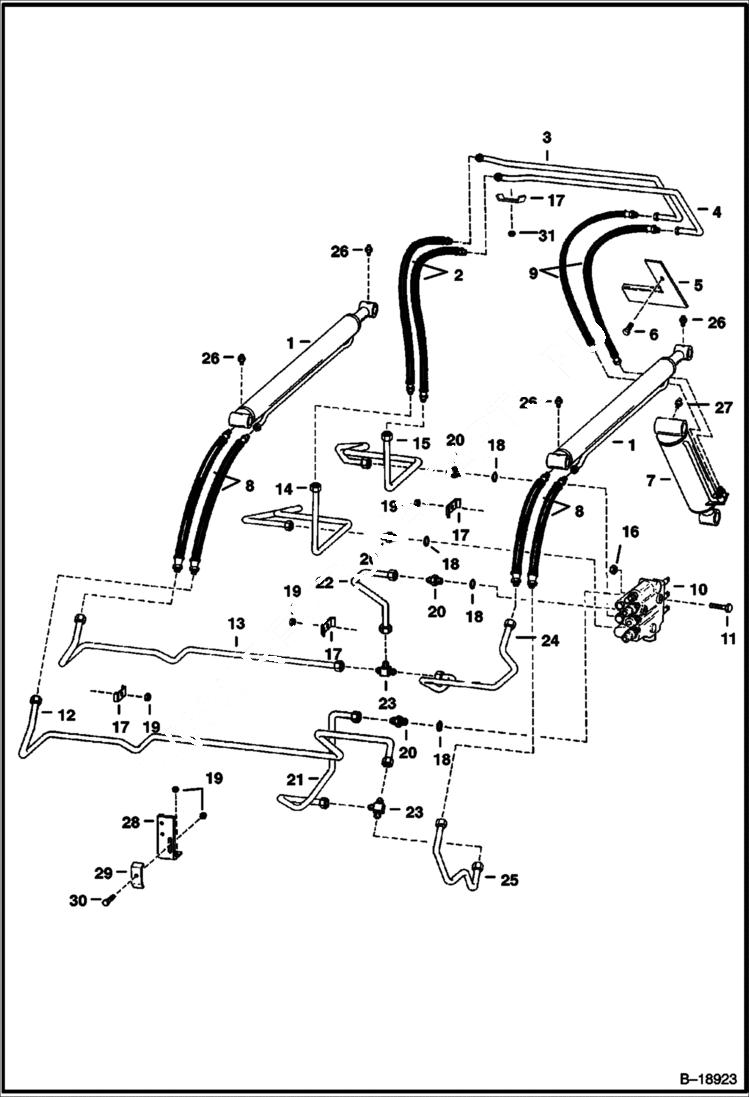

Запчасти Bobcat 700s HYDRAULIC CIRCUITRY (S/N 15001 & Above) HYDRAULIC SYSTEM

1

CYLINDER See Illustration LIFT CYLINDER/ B6942 See Illustration LIFT CYLINDER/ B2206 LIFT

2

6559199

HOSE

3

6557780

TUBE

4

6557781

TUBE

5

6553422

COVER

6

84G3724

BOLT Was 84G003720B - B

7

CYLINDER See Illustration TILT CYLINDER/ C2546 See Illustration TILT CYLINDER/ B18047 See Illustration TILT CYLINDER/ C2742 TILT

8

6563616

HOSE

9

6559200

HOSE

10

See Illustration HYDRAULIC CONTROL VALVE/ B18925 BOBCAT

11

17C560

BOLT

12

6564470

TUBELINE, HYD

13

6564469

TUBE

14

TUBE NLA - Order 6571690 & 6571691 - Was 6564477 - A

14

6571691

TUBE

15

TUBE NLA - Order 6571690 & 6571691 - Was 6564476 - A

15

6571690

TUBE

16

85D5

NUT 5

17

6502203

CLAMP

18

79K10

O RING 10

19

85D6

NUT, 5

20

15K7

FITTING W/Ref. 18

21

6704347

TUBE Was 6564472 - A

22

6564473

TUBE

23

6560136

TEE

24

6564468

TUBE

25

6564471

TUBE

26

11H15

GREASE FITTING

27

10H25

FITTING, GREASE 5

28

6568667

BRACKET

29

6569068

CLAMP

30

17C624

BOLT 5

31

59D6

NUT
