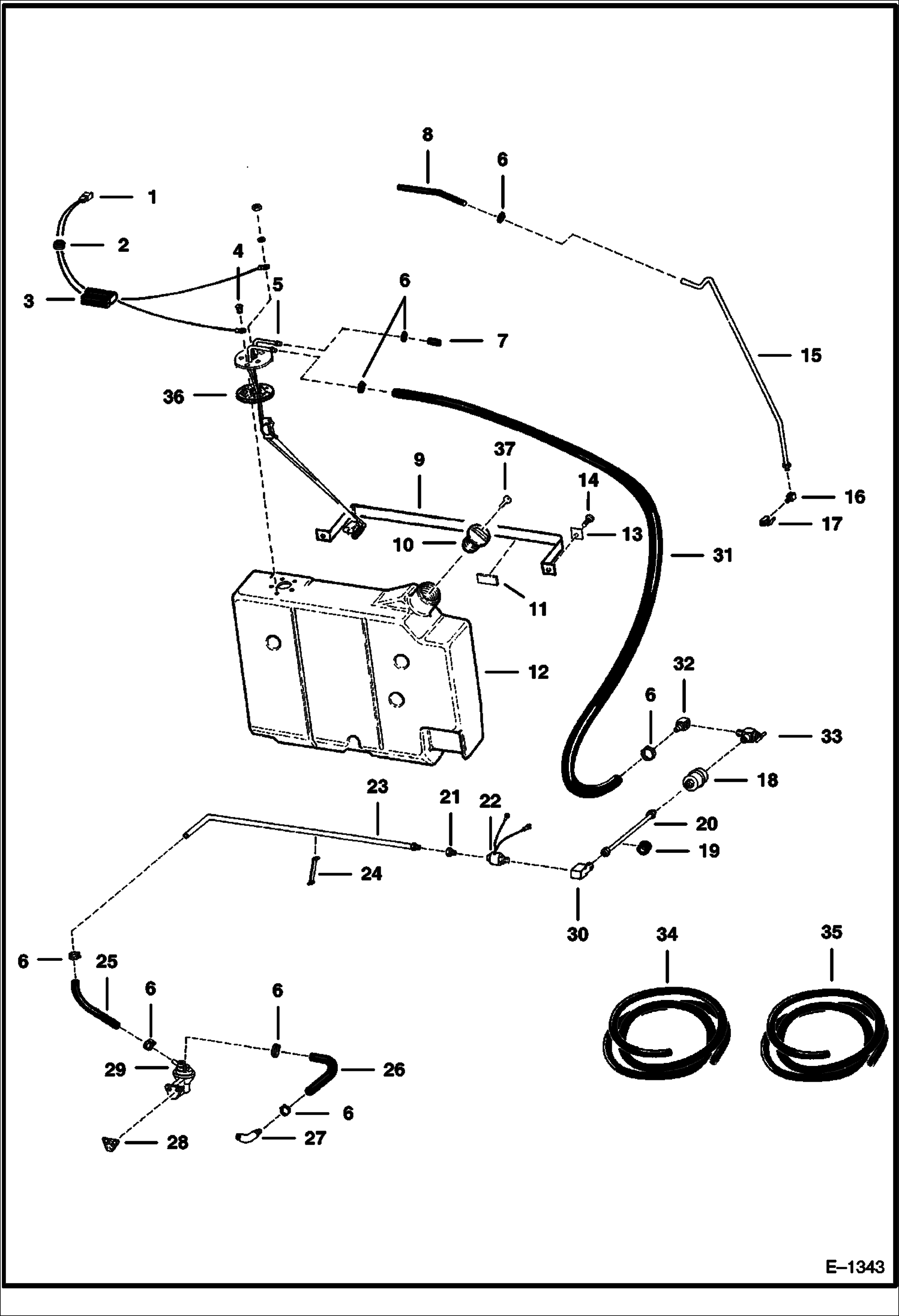

Запчасти Bobcat 700s FUEL SYSTEM (S/N 15251 & Below) MAIN FRAME

1

6560117

WIRE

2

742876

GROMMET

3

6562606

SEAL Use 3'' (76,2 mm) of 6513152

4

87G1010

SCREW Was 85G001010B - B

5

6563210

SENDER Fuel - includes gasket

6

42HS04

CLAMP, HOSE Was 6515575 - A

7

CAP NLA - Was 6562550 - A

8

HOSE NLA - 7'' (178 mm) - Order Ref. 35

9

6562559

BAND

10

6632468

CAP Was 6555717 - A

10

CAP NLA - locking W/Ref. 37 - Was 6654373 - A

10

6662770

CAP locking - W/Ref. 37 - Code PK510

11

6591273

STRIP rubber - Was 6563233 - A

12

TANK See BTI216 NLA

13

6559447

WASHER square

14

84G3716

SCREW 5

15

6562547

TUBE

16

62F4

ELBOW

17

6562553

VALVE shut off

18

6512106

ELEMENT

19

6515603

GROMMET

20

6562993

TUBE 2.83'' (71,8 mm)

20

TUBE NLA - Was 6563723 - A

21

CONNECTOR NLA - Was 59F000004B - A

22

7024822

SOLENOID, FUEL Was 6559117

23

6562994

TUBE 2 Bends

23

6563724

TUBE 1 Bend

24

CLIP NLA - Was 6513498 - A

25

HOSE NLA - 6'' (152,4 mm) - Order Ref. 35

26

HOSE NLA - 6'' (152,4 mm) - Order Ref. 34

27

6515156

CONNECTOR To Carburetor

28

6512519

GASKET spacer

28

6660165

GASKET

29

6512518

PUMP, FUEL

30

CONNECTOR NLA - Use W/6562993 Tube - Was 59F000004B - A

30

62F4

ELBOW Use W/6563723 Tube

31

HOSE NLA - 35'' (889 mm) - Order Ref. 35

32

6598753

ELBOW

33

6512138

VALVE shut-off

34

6577821

HOSE bulk - sold per foot - Was 672221 - A

35

6577822

HOSE bulk - Sold Per Foot Only - Was 6562515 - A

36

6630972

GASKET

37

6654374

KEY Code GC020

37

6587458

KEY Code PK510
