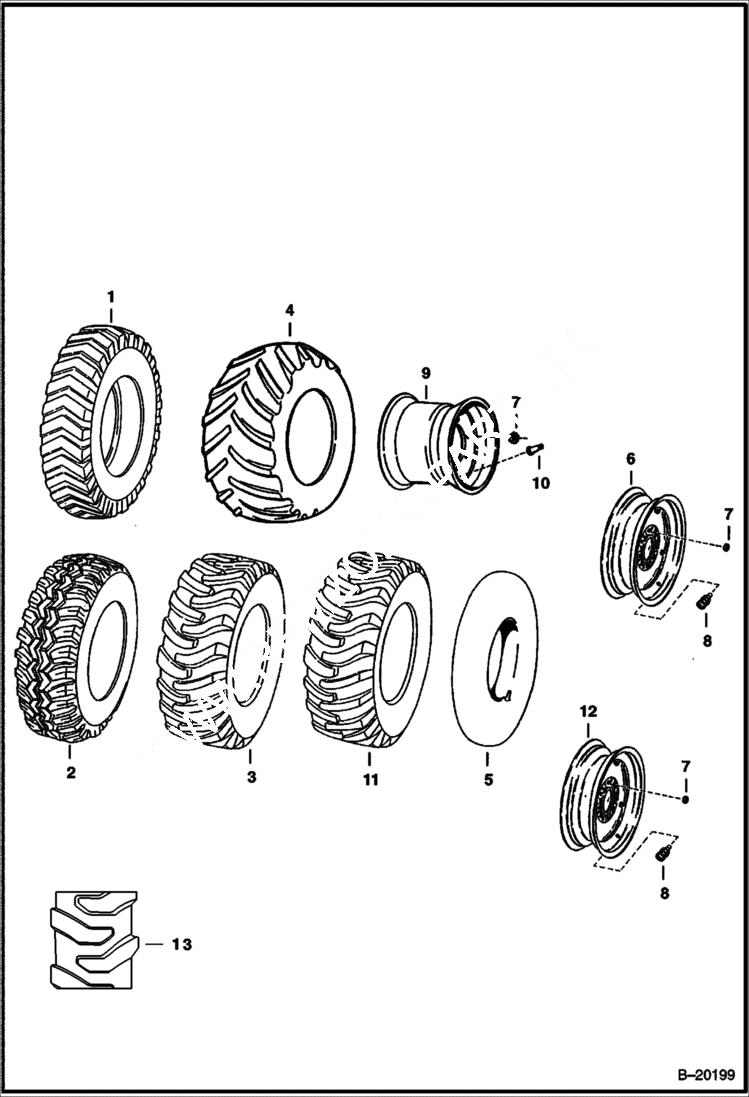

Запчасти Bobcat 700s TIRES & RIMS ACCESSORIES & OPTIONS

1

TIRE NLA - 7.00-15, 6 Ply Rating, Steel Cap Bar Lug - Firestone - Was 6515899 - A

1

TIRE NLA - 7.00 x 15, 6 Ply Rating, Steel Cap Bar Lug - Dico - Was 6659473 - A

1

TIRE NLA - 7.00 x 15, 6 Ply Rating Nylon Bar Lug - Dico - Was 6665724 - A

1

TIRE NLA - nylon 7:00 x 15, 6 ply - IDT (industrial deep tread) - Dico - Was 6665724 - A

2

TIRE NLA - 10.00-16.5, 6 PLY RATING, FLOTATION - FIRESTONE - Order Ref. 3

3

TIRE NLA - 10.00-16.5, 6 Ply Rating, Nylon Loader Lug - General - Was 6550826 - A

3

TIRE NLA - 10 x 16.5, 6 Ply Rating, Nylon Sure Grip - Goodyear - Order 6729896 - Was 6631613 - A

3

TIRE NLA - 10.00-16.5, 6 Ply Rating, Steel Cap Flo-Trac - Dico - Was 6550828 - A

3

TIRE NLA - 10 x 16.5 8 ply Rating, Heavy Duty - Dico - Order 6729896 - Was 6667889 - A

3

TIRE NLA - 10 x 16.5 6 ply Rating, Nylon Dico - Was 6653481 - A

3

TIRE NLA - 10 x 16.5, 6 Ply Rating, Nylon Super Traction - Firestone - Order 6729896 - Was 6646601 - A

3

TIRE NLA - 10 x 16.5, 8 Ply Rating, - Bobcat - Order 6729896 tire or 6729900 tire - Was 6661287 - A

3

6729896

TIRE, STANDARD 31X10X16.5, 8 PLY factory option - Bobcat - Was 7101734 - A

3

6729900

TIRE, HEAVY DUTY 31X10X16.5, 10 PLY factory option - Bobcat

4

TIRE NLA - 31-15, 8 Ply Rating, Terra Grip - purchase locally - Was 6513971 - A

5

6515045

TUBE Use W/Ref. 1

5

6516033

TUBE Use W/Ref. 2 & 3

6

7232566

WHEEL, RIM 16.5X8.25 See BTI197ldr - Use W/Ref. 1 & 3 - Was 6730771 - A

6

6562777

RIM See BTI197ldr - Use W/Ref. 1

7

6564669

NUT, 10 wheel

8

1614765

VALVE STEM, TIRE tubeless tire

9

6561095

WHEEL, RIM 15X13 See BTI197ldr - Use W/Ref. 4

10

6591447

VALVE STEM, TIRE Use W/Ref. 9

11

6704180

TIRE 10 x 16.5 Bar Lug Flotation Dico

12

7232568

WHEEL, RIM 16.5X8.25 See BTI197ldr - inverted - Use W/Ref. 3 for 1372 mm (54'') width - Was 6730775 - A

13

7024212

TIRE, HEAVY DUTY 10X16.5, 12 PLY EF
