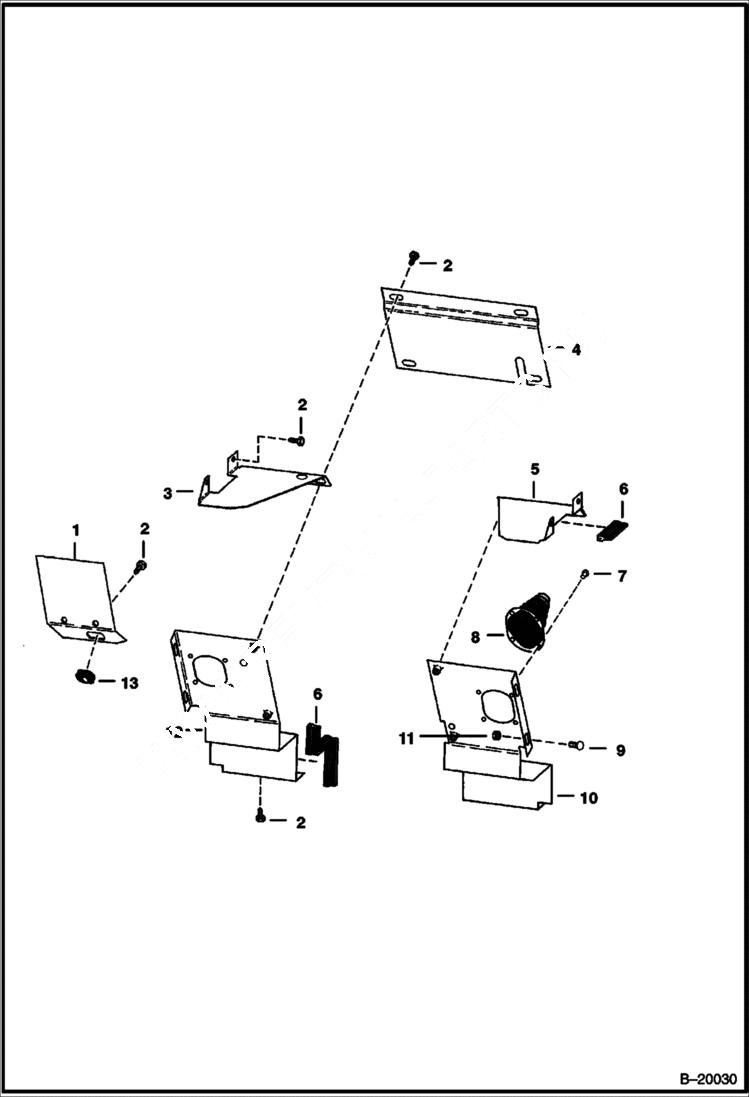

Запчасти Bobcat 700s PANELS (S/N 12089 & Below) MAIN FRAME

1

6562807

SHIELD Wire Harness

2

84G3716

SCREW 5

3

6562450

BRACE L.H.

4

6557172

PLATE

5

6562451

BRACE R.H.

6

4126590

MOULDING bulk - sold per foot

7

6630207

RIVET 5 Was 6513493 - A

8

6532127

BOOT Was 6563540 - A

9

37C616

BOLT carriage - Was 6514537 - A

10

6563537

PANEL R.H.

11

57D6

NUT 5

12

6563539

PANEL L.H.

13

6553653

GROMMET
