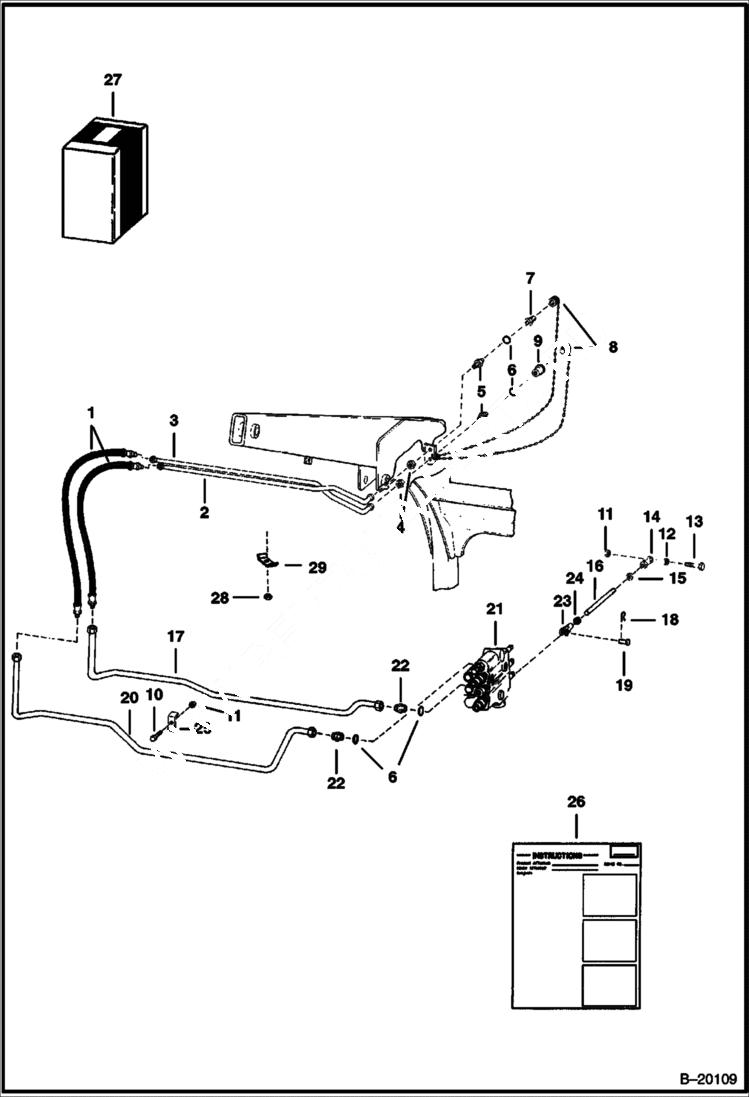

Запчасти Bobcat 700s AUXILIARY HYDRAULICS (Front) ACCESSORIES & OPTIONS

1

6559199

HOSE

2

6558414

TUBE

3

6558415

TUBE Was 6707041 - D

4

86F7

LOCK NUT

5

45K7

CONNECTR W/Ref. 6

6

79K10

O RING 10 not in kit

7

6598757

COUPLER, POPPET MALE straight

8

6513709

CAP PLUG assy - Rubber

8

6515167

PLUG Steel

8

6515168

CAP Steel

9

6598758

COUPLER, POPPET FEMALE straight

9

48K16

O RING 10

9

6665430

BACKUP RING

10

17C624

BOLT 5 not in kit

11

85D6

NUT, 5

12

6564535

SPACER

13

17C620

BOLT

14

6512955

SWIVEL L.H. threads

15

13D6

NUT

16

6557090

ROD

17

6569592

TUBE not in kit

18

6513495

COTTER PIN

19

6564654

PIN

20

6569593

TUBE not in kit - Was 6569592 - D

21

VALVE See Illustration HYDRAULIC CONTROL VALVE/ B20191 BOBCAT - NOT IN KIT

22

15K7

FITTING W/Ref. 6 - not in kit

23

6564655

CLEVIS

24

8D6

NUT 5

25

6569068

CLAMP not in kit

26

6720576

INSTRUCTIONS

27

6702835

KIT

28

59D6

NUT not in kit

29

6502203

CLAMP not in kit
