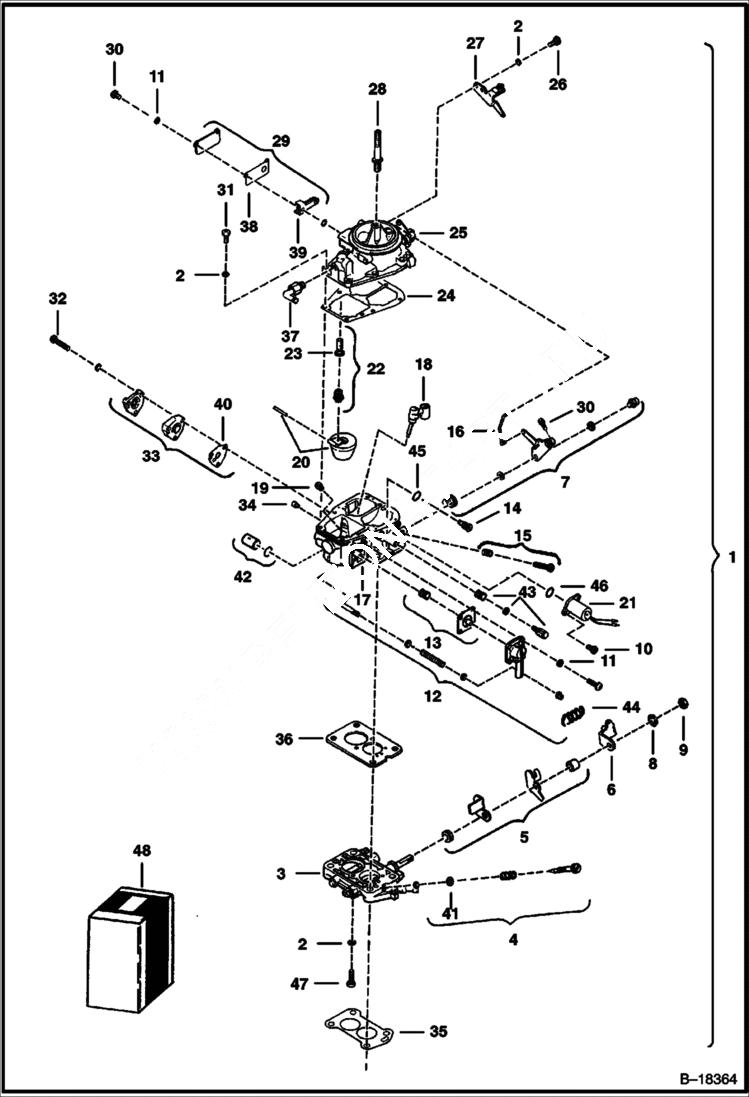

Запчасти Bobcat 700s CARBURETOR POWER UNIT

1

6632616

CARBURETOR

2

6EM50

LOCK-WSHR

3

MTG. PLATE NSS - bottom

4

6632801

SCREW KIT

5

6632866

LEVER KIT

6

6632868

LEVER throttle

7

6632808

LEVER KIT choke

8

6EM80

WASHER, SPRING

9

6632788

NUT

10

13GM4010

BOLT

11

6EM40

LOCKWHSR.

12

6632806

COVER ASSY pump

13

6632805

DIAPHRAGM KIT pump

14

6632786

JET pilot screw

15

6632807

SCREW speed adj.

16

6632789

ROD choke

17

BODY NSS

18

JET NSS

19

6632793

JET main

19

6665121

JET main - High Altitude

20

6632804

FLOAT & PIN

21

6632791

SOLENOID

22

6632803

KIT needle valve - screen - Also order Ref. 20

23

6632787

GASKET

24

7030191

GASKET Was 6632783 - A

25

6632865

COVER W/Ref. 37

26

13GM5010

SCREW

27

6632799

BRACKET

28

6632869

STUD

29

6632802

IDLE KIT compensator

30

13GM408

SCREW

31

13GM5016

BOLT

32

13GM4025

BOLT

33

6632784

VALVE ASSY enrichment

34

6632790

JET enrichment

35

6632676

GASKET carb.

36

GASKET NSS

37

ELBOW NSS

38

GASKET NSS

39

O-RING NSS

40

GASKET NSS

41

GASKET NSS

42

6632800

WEIGHT KIT check valve & weight

43

SCREW KIT NSS

44

SPRING NLA - throttle - Was 6658614 - A

45

O-RING NSS

46

O-RING NSS

47

13GM5022

SCREW

48

6632867

GASKET KIT Ref. 24, 35, 36 & 38, 40, 41
