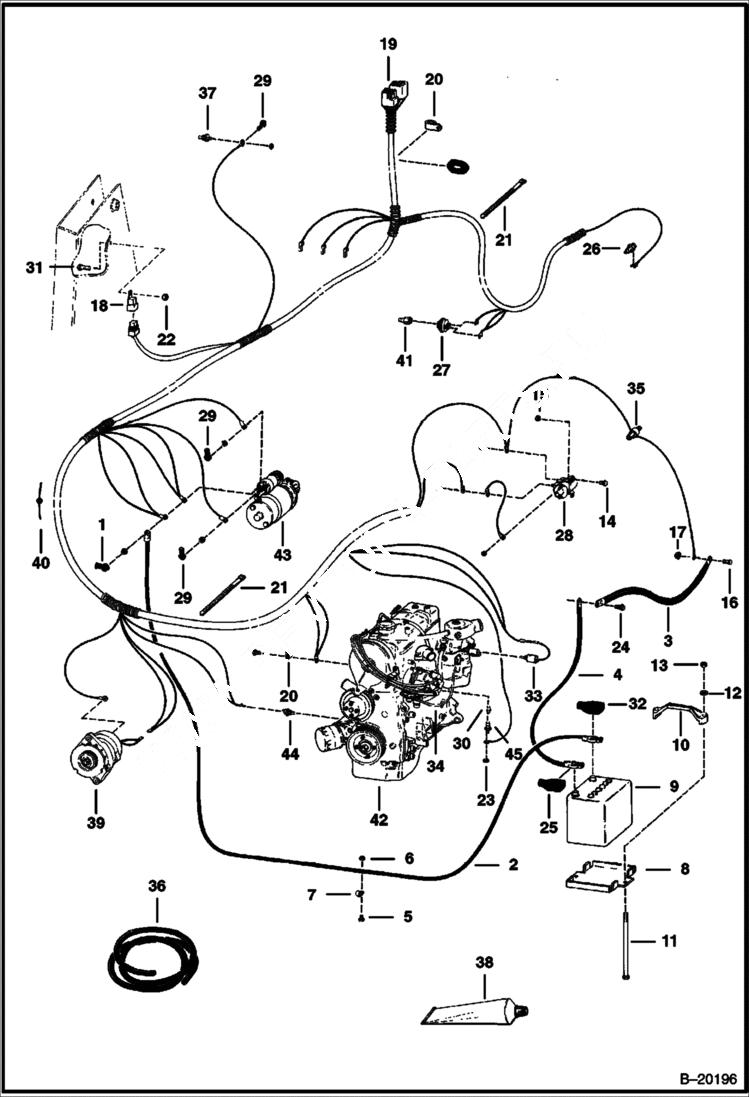

Запчасти Bobcat 700s ENGINE ELECTRICAL CIRCUITRY ELECTRICAL SYSTEM

1

6560172

COVER

2

6572081

CABLE Positive

3

6563025

CABLE Ground

4

6564716

CABLE Ground - Was 6563042 - A

5

35C820

BOLT

6

57D8

NUT 10

7

30H48

CLIP

8

6558826

MOUNT

9

6674687

BATTERY, DRY 600 AMP Was 6669318 - A

10

6569203

CLAMP

11

6569623

BOLT

12

25E15

WASHER

13

59D5

NUT 5

14

17C510

BOLT

15

61D5

NUT

16

17C512

BOLT 5

17

83D5

NUT 5

18

6651975

SWITCH starter relay

19

6703687

HARNESS

20

30H42

CLAMP

21

6610510

TIE Was 1715312B - A

22

55D4

NUT

23

14D10

NUT

24

1CM1016

SCREW

25

6599652

BOOT

26

6632633

SWITCH hyd temp

27

6671062

SWITCH hydro. pressure - Was 6664577 - A

28

COIL See Illustration PLUG WIRES/ C2992

29

616334

COVER

30

6564767

ADAPTER Use W/6599492 Sender

31

35C412

BOLT

32

2356058

BOOT

33

6632791

SOLENOID See Illustration CARBURETOR/ B18364 CARBURETOR

34

DISTRIBUTOR See Illustration DISTRIBUTOR/ C2989

35

7024822

SOLENOID, FUEL See Illustration THROTTLE & CHOKE/ C2990 WAS 6559117

36

6563505

CONDUIT cable - Bulk

37

6632053

SWITCH filter

38

6599360

SEALANT, ELEC .3 OZ electrical - tube - 3 oz

39

ALTERNATOR See Illustration ALTERNATOR/ B18156

40

3675725

DIODE

41

6563922

SNUBBER

42

ENGINE See Illustration ENGINE/ B18363 MITSUBISHI

43

STARTER See Illustration STARTER/ B1192

44

6632623

SWITCH eng. oil pressure

45

6658818

SENDER eng. temp. - threaded connector - Was 6599492 - A
