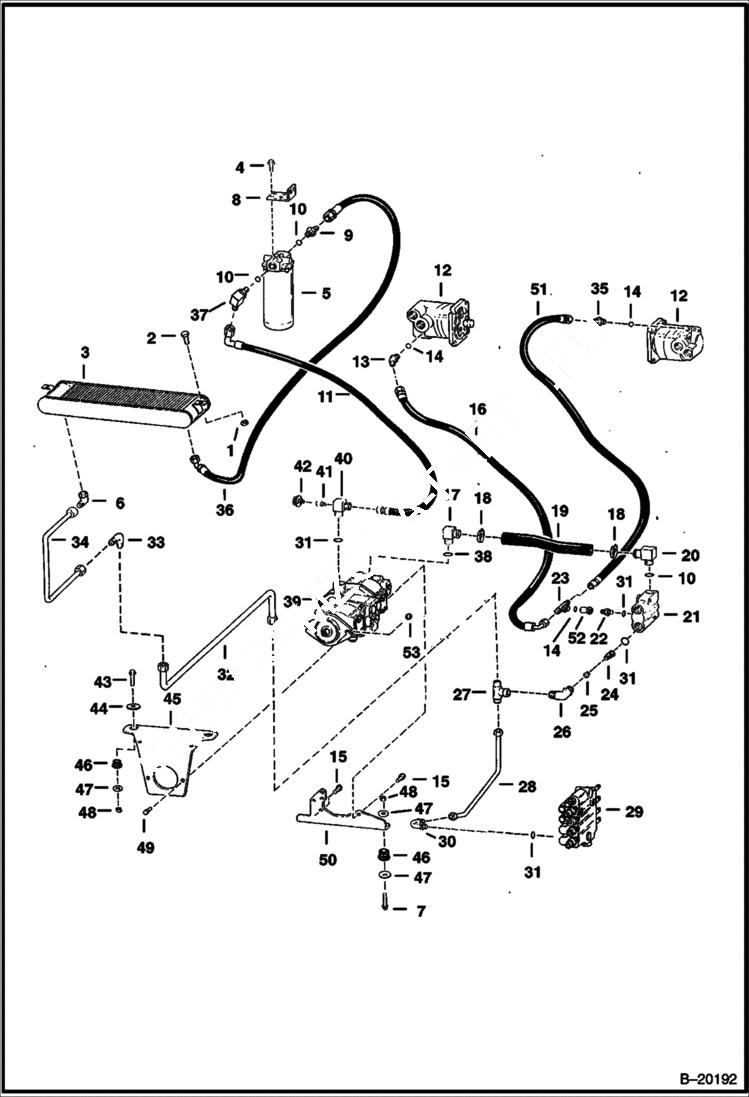

Запчасти Bobcat 700s HYDROSTATIC CIRCUITRY HYDROSTATIC SYSTEM

1

85D6

NUT, 5

2

37C616

BOLT Was 35C000612B - B,D

3

6575655

OIL COOLER

4

35C610

BOLT 5

5

FILTER ASSY See Illustration HYDROSTATIC OIL FILTER/ B13527

6

11K7

ADAPTER

7

17C840

BOLT

8

6565336

BRACKET

9

15KB1012

FITTING, HYD CONNECTOR W/Ref. 10 - Was 755055B - A

10

79K12

O RING 10

11

6571712

HOSE Was 6702857 - B,D

12

MOTOR See Illustration HYDROSTATIC MOTOR/ D1928

13

18K5

ELBOW W/Ref. 14

14

79K6

O RING 10

15

17C816

BOLT

16

6704830

HOSE

16

6578327

HOSE

17

6577888

ELBOW W/Ref. 38

18

44H20

CLAMP Was 6666864 - A

19

6565344

HOSE

20

1321499

FITTING W/Ref. 10 - Was 6567884 - A

21

6565748

BLOCK port

22

731795

CONNECTR W/Ref. 31

23

13K5

TEE

23

19K5

FITTING W/Ref. 14

24

6565425

SPRING

25

6515078

POPPET

26

6565701

ELBOW W/Ref. 31

27

14K7

TEE

28

6565337

TUBELINE Was 6567419 - B

29

VALVE See Illustration HYDRAULIC CONTROL VALVE/ B20191

30

6532179

ELBOW W/Ref. 31

31

79K10

O RING 10

32

6565717

TUBE

33

77F7

ELBOW

34

6575682

TUBELINE Was 6567313 - B,D

35

17K5

ELBOW W//Ref. 14

35

15K5

FITTING W//Ref. 14

36

6701291

HOSE Was 6567026 - B,D

37

17K8

FITTING W/Ref. 38 - Was 1302104B - B,D

38

79K16

O RING 10

39

PUMP

40

6565630

ELBOW W/Ref. 31

41

6563922

SNUBBER W/Filter

41

6563920

FILTER

42

6671062

SWITCH hydro. pressure - Was 6664577 - A

43

35C840

BOLT

44

6560899

WASHER

45

6562697

MOUNT

46

6560633

DAMPENER rubber

47

6564692

WASHER

48

85D8

NUT, 5

49

17C824

BOLT 5

50

6704179

BRACKET

51

6579946

HOSE

51

1518597

HYD HOSE

52

6661022

FILTER, OIL HYD IN-LINE See Illustration HYDROSTATIC OIL FILTER/ B13527

53

57D8

NUT 10
