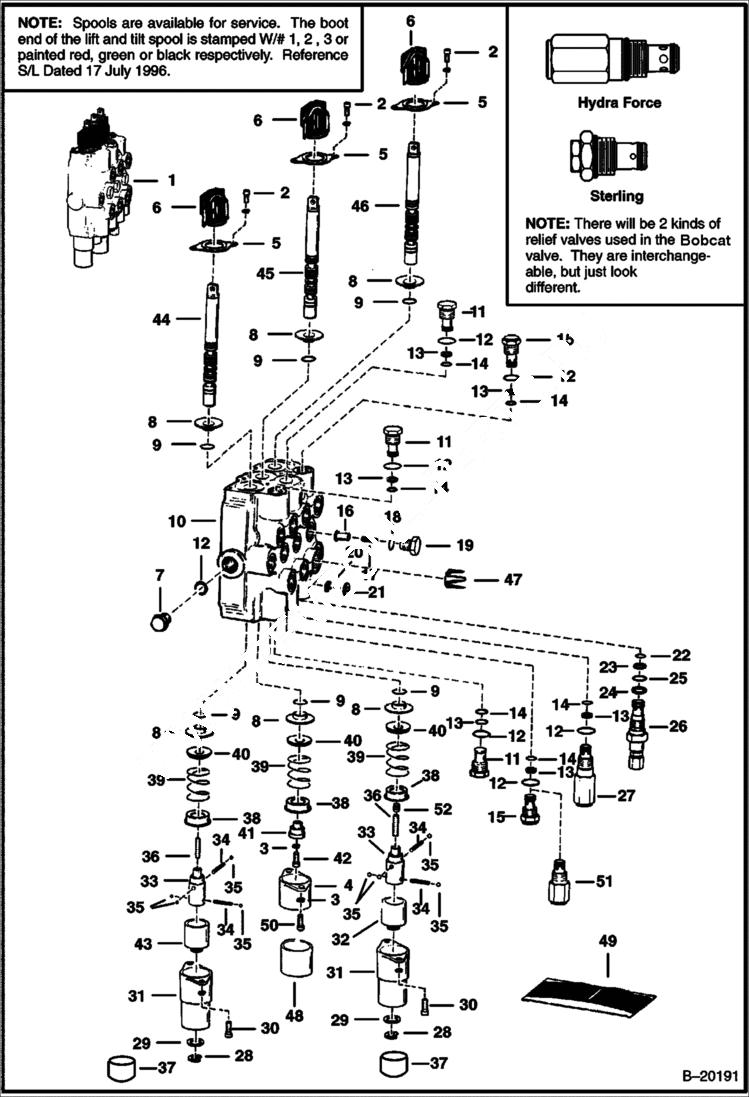

Запчасти Bobcat 700s HYDRAULIC CONTROL VALVE HYDRAULIC SYSTEM

1

NLA - Ref. 2-49 - Before ordering repair parts, make sure this is the correct style Valve. Valve shown here uses stamped boot retainers, which fit flush to valve body - Was 6587303 - A

1

SHORT BLOCK NLA - REF. 2-10 & 52 - See Note - Order Ref. 1

2

6588165

SCREW Was 73G000410B - B

3

22E4

WASHER

4

BONNET NLA - W/.25'' flange thickness - Order 6587633 Bonnet, 6662848 Cap & (2) of 6588164 Screws - Was 6592097 - A

4

7101345

BONNET, DETENT HYD VALVE W/.50'' flange thickness - Was 6587633 - A

5

6592123

RETAINER

6

6587763

BOOT Was 6583727 - A

7

47K7

PLUG

8

6592103

BUSHING

8

6538466

BUSHING With part # stamped on

9

6665089

SEAL See BTI374 lip seal - Was 6659554 - A

10

BODY NSS

11

6592720

PLUG W/Ref. 12-14

12

79K10

O RING 10

13

80K14

BACK-UP WASHER Was 73K000014B - B

14

58K014

O-RING 10 back-up washer required

14

6677106

O-RING back up washer not required

15

6667549

VALVE anti-cavitation - W/Ref. 12-14 - Was 6661345 - A

16

6592115

SEAT

17

6592117

SPRING, LOAD CHECK

18

79K8

O RING 10

19

6592116

NUT load check

20

ORIFICE NLA - .123/.130 - Was 6592110 - A

21

6593680

RETAINER

22

O-RING NSS

23

WASHER NSS - back-up

24

O-RING NSS

25

WASHER NSS - back-up

26

RELIEF VALVE NLA - main - W/Ref. 22-25 - pressure preset at factory - Was 6649321 - A

26

7219324

VALVE, RELIEF W/ O-rings - pressure to be set in field - Was 6686360 - A

27

6599161

RELIEF VALVE W/Ref. 12-14 - See Note

28

799119

RING

29

6592098

WASHER

30

6588163

SCREW 7/8'' - Was 69G000412B - B

30

29G416

BOLT 1'' - Was 6588982 - A

31

BONNET NLA - W/1.25 flange - Order 6589226 , 6631704 , 2 of 29G000416B - Was 6592094 - A

31

6589226

COVER, END 0.63'' flange

32

6592096

SLEEVE lift

33

6587575

ADAPTER Was 6592099 - A

34

6592107

SPRING

35

6592105

BALL

36

6586918

SCREW

37

6660644

CAP

38

6592100

COLLAR

39

6587580

SPRING Was 6592106 - A

40

7211397

WASHER, SPRING Was 6587523 - A

41

6592109

ADAPTER

42

6588166

SCREW Was 74G000416B - B

43

6593349

SLEEVE aux.

44

SPOOL NSS - aux.

45

SPOOL NSS - tilt

46

SPOOL NSS - lift

47

6587304

ORIFICE

48

6662848

CAP Use with 6587633 Bonnet

49

6816251

KIT, SEAL See BTI374 - Ref. 6, 9, 12-14, 18, 22-25 & 52 - Was 6803606 - A

49

6816250

KIT, SEAL See BTI374 - Ref. 2, 6, 9, 30 & 52 - for one spool - Was 6803605 - A

49

6661328

SEAL KIT main relief - Ref. 22-25 - A

49

6809425

SEAL KIT Upper Deck - Ref. 12-14 & 18 - Was 6586461 - A

50

6588164

SCREW

51

6664373

VALVE optional - port relief & anti-cav. - W/Ref. 12 - 2500 PSI - use in tilt cylinder base end port

52

PLUG NLA - plastic - Order 6596807 Plug & 54K020002B O-Ring - Was 6592752 - A

52

6596807

PLUG plastic - 0.46'' long

52

54K20002

O'RING 10
