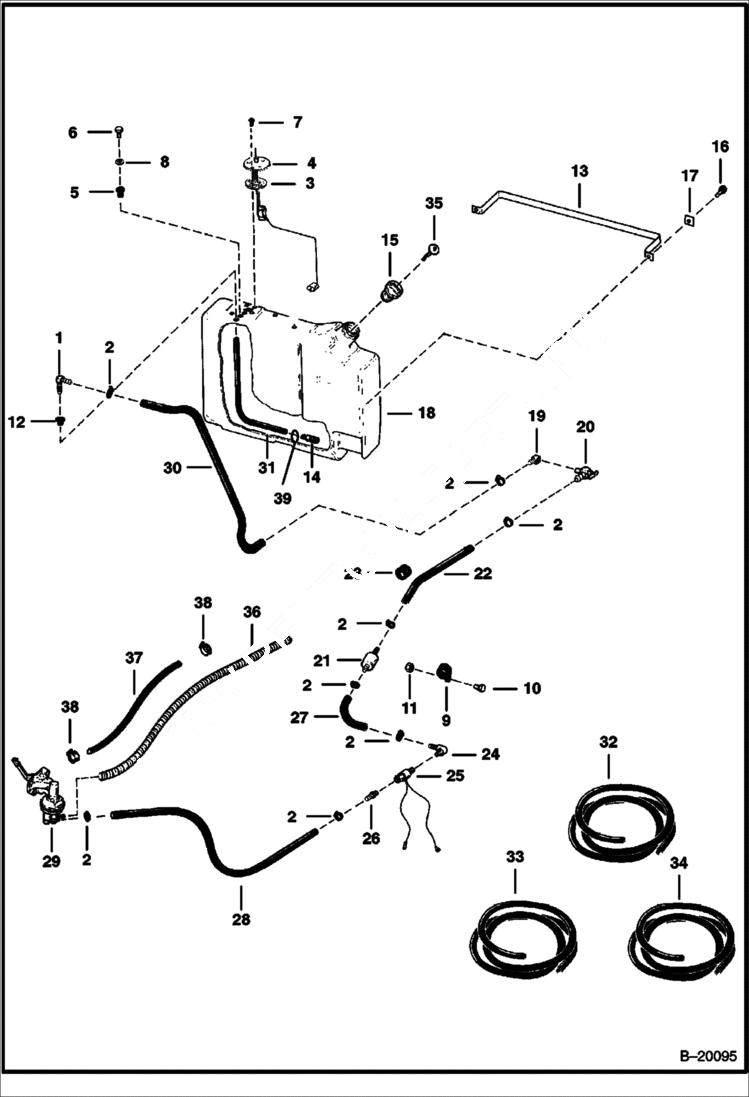

Запчасти Bobcat 700s FUEL SYSTEM MAIN FRAME

1

6598908

ELBOW

2

42HS04

CLAMP, HOSE Was 6515575 - A

3

6630972

GASKET

4

6568175

SENDER, FUEL

5

1308362

WELL NUT

6

17C414

BOLT

7

85G1010

SCREW

8

25E13

WASHER 5

9

30H57

CLAMP

10

7C512

SCREW

11

61D5

NUT

12

6553411

BUSHING 0.38'' ID

13

6562559

BAND

14

6650239

SCREEN, FUEL PICKUP

15

6632468

CAP

15

CAP NLA - locking - W/Ref. 35 - GC020 - Was 6654373 - A

15

6662770

CAP locking - W/Ref. 35 - PK510 - Was 6654373 - A

16

84G3720

BOLT

17

6559447

WASHER square

18

6567909

TANK

19

6598753

ELBOW

20

6632593

VALVE shut-off

21

6511393

FILTER

22

HOSE NLA - 3-1/2'' (88,9 mm) - Order Ref. 33

23

6515603

GROMMET

24

6515156

CONNECTOR Was 6592277 - A

25

7024822

SOLENOID, FUEL WAS 6559117

26

6505813

CONNECTOR

27

HOSE NLA - Order Ref. 33

28

HOSE NLA - 16'' (406,4 mm) - Order Ref. 32

29

FUEL PUMP See Illustration CYLINDER HEAD & FUEL PUMP/ D1773

30

HOSE NLA - 35'' (889 mm) - Order Ref. 32

31

HOSE NLA - 21'' (533,4 mm) - Order Ref. 32

32

6577822

HOSE bulk - sold per foot

33

6577821

HOSE bulk - sold per foot

34

6569752

HOSE BULK/FT bulk - sold per foot

35

6654374

KEY Code GC020

35

6587458

KEY Code PK510

36

6632875

HOSE

37

6563505

CONDUIT bulk - Sold Per Foot

38

42H6

HOSECLAM5 Was 17H000007B - A

39

6661213

RING, COMPRESSION
