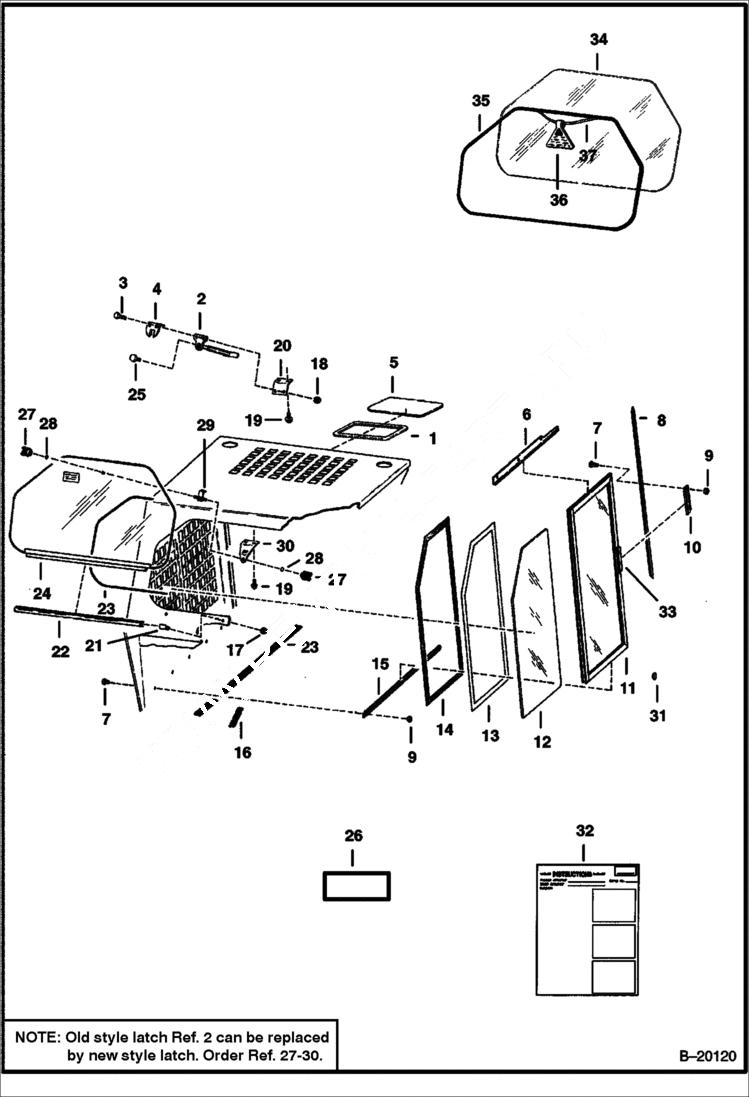

Запчасти Bobcat 700s CAB WINDOWS ACCESSORIES & OPTIONS

1

6664351

SEAL Use W/cab headliner

1

6665012

SEAL Use W/O cab headliner

2

6630929

LATCH W/Ref. 25

3

85G1014

SCREW

4

6630928

CLIP

5

6701986

WINDOW top - square - Was 6563391 - A

5

6705735

WINDOW top - oval

6

6703159

TRACK RH - Was 6630921 - A

6

6703160

TRACK LH - Was 6630920 - A

7

35C410

BOLT 5

8

6630918

TRACK L.H.

8

6630919

TRACK R.H.

9

83D4

NUT 10

10

6630924

BRACKET

11

6658143

WINDOW LH - Was 6630922 - A

11

6658142

WINDOW RH - Was 6630923 - A

12

6702731

WINDOW, CAB Was 6567750 - A

13

6631548

LOOP Scotchmate

14

6631549

HOOK Scotchmate

15

6661689

TRACK LH - Was 6630916 - A

15

6661690

TRACK RH - Was 6630917 - A

16

6513152

SEAL bulk - sold per foot

17

59D4

NUT 5

18

50D10

LOCKNUT

19

84G3112

BOLT 5

20

6568540

MOUNT

21

6576513

BOLT

22

6630926

HINGE

23

6555351

SEAL bulk - sold per foot

24

6630925

WINDOW

25

KNOB NLA - Was 6631665 - A

26

6631625

DECAL For Old Style Latch - Ref. 2

27

6571529

KNOB

28

58K109

O RING 10

29

6571532

BRACKET

30

6571533

MOUNT

31

6632265

PLUG Button

32

6566957

INSTRUCTIONS Side Window

32

6566955

INSTRUCTIONS Rear Window

33

6659949

LATCH

34

6704891

WINDOW Was 6703021 - A

35

6658352

MOULDING bulk - sold per foot - Was 6554221

36

6731478

EXIT TAG Was 6559515 - A

37

6554149

CORD, BULK/FT bulk - sold per foot - Also Order Ref. 36 (6731478 exit tag) - Was 6554223
