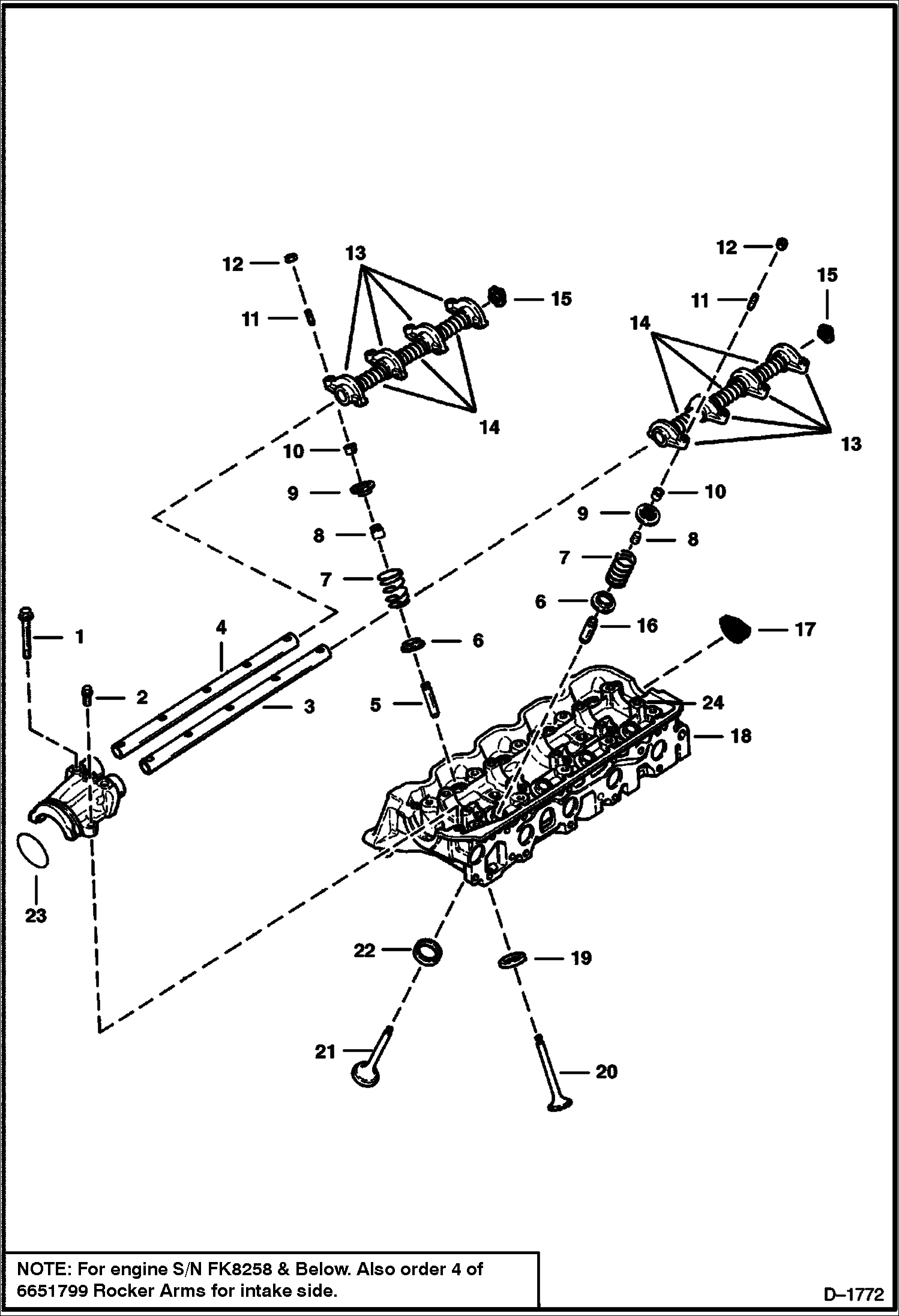

Запчасти Bobcat 700s VALVES POWER UNIT

1

6632728

BOLT Head

2

29CM620

SCREW

3

6632696

SHAFT Rocker - L.H.

4

6632697

SHAFT Rocker - R.H.

5

6632660

VALVE GUIDE Exhaust - O.S. - 0.05 mm

5

6632661

VALVE GUIDE Exhaust - O.S. - 0.25 mm

5

6632662

VALVE GUIDE Exhaust - O.S. - 0.50 mm

6

6632663

RETAINER Spring

7

6632860

SPRING Valve

8

6632664

SEAL

9

6632757

RETAINER

10

6632753

KEEPERS

11

6632755

BOLT

12

6632673

NUT

13

6651799

ROCKER ARM Also order 4 of 6651799 Rocker Arms for intake side

14

6632674

SPRING

15

6632675

WASHER Waved

16

6632657

VALVE GUIDE Intake - O.S. - 0.05 mm

16

6632658

VALVE GUIDE Intake - O.S. - 0.25 mm

16

6632659

VALVE GUIDE Intake - O.S. - 0.50 mm

17

6632739

PACKING

18

HEAD See Illustration CYLINDER HEAD & FUEL PUMP/ D1773 NLA - cylinder - W/Ref. 1, 2, 5, 16, 19, 22 & Refs. 1-4, 7, 8 & 22 on Ill. D1773 - Was 6632847 - A

19

6632774

VALVE SEAT Exhaust - O.S. - 0.30

19

6632775

VALVE SEAT Exhaust - O.S. - 0.60

20

6632768

VALVE Exhaust

21

6632767

VALVE Intake

22

6632655

VALVE SEAT Intake - O.S. - 0.30

22

6632656

VALVE SEAT Intake - O.S. - 0.60

23

6632698

SEAL

24

BRACKET NSS - Rocker Arm & Camshaft - W/Ref. 18
