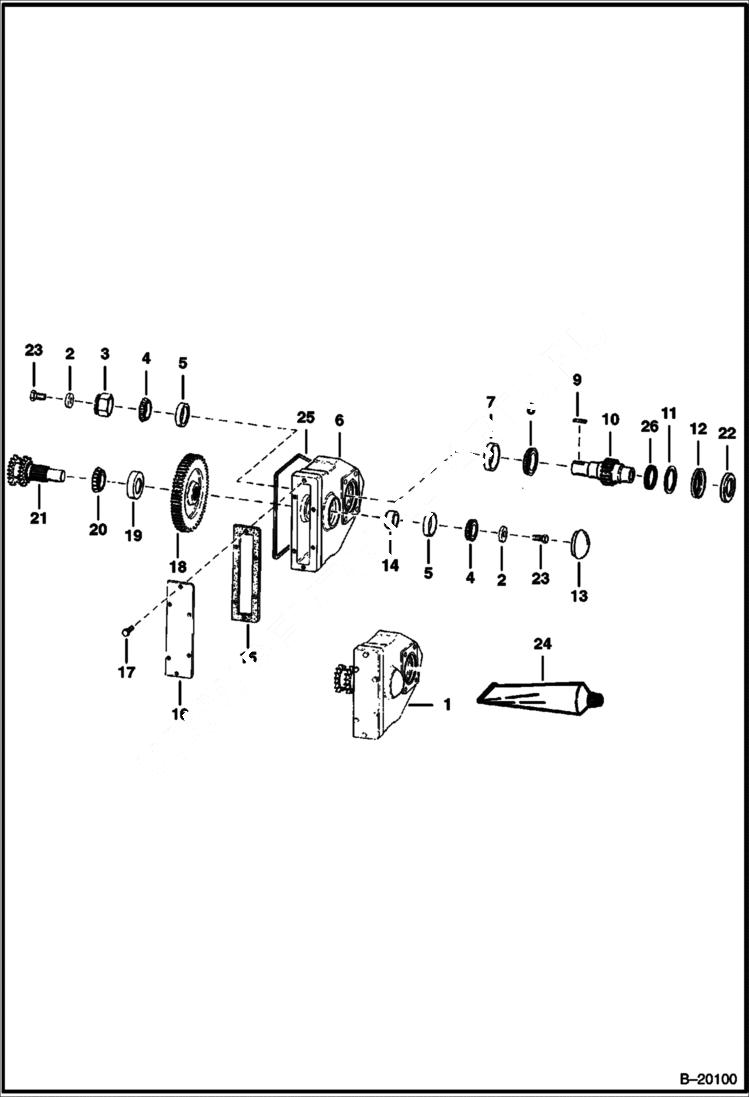

Запчасти Bobcat 700s GEARCASE DRIVE TRAIN

1

6558307

GEARCASE Ref. 2-23

2

6558234

WASHER

3

6558208

HUB

4

6648774

BEARING Was 743778B - A

5

6648776

RACE Was 743777B - A

6

6563577

HOUSING

7

1320905

CUP

8

1320904

CONE

9

6708255

KEY Was 7J006012B - A

10

6558272

SHAFT

11

6559619

WASHER

12

6513588

SEAL, OIL

13

6565289

CAP

14

6558276

COLLAR

15

6558273

GASKET

16

6558274

COVER

17

17C512

BOLT 5

18

6558270

GEAR, DRIVE

19

660181

CUP

20

731284

BEARING

21

6558277

SHAFT

22

6513681

BEARING Bronze

23

17C1220

BOLT

24

6561395

SEALANT Boretite

25

6563574

RETAINER

26

6515195

SEAL Quad Ring
