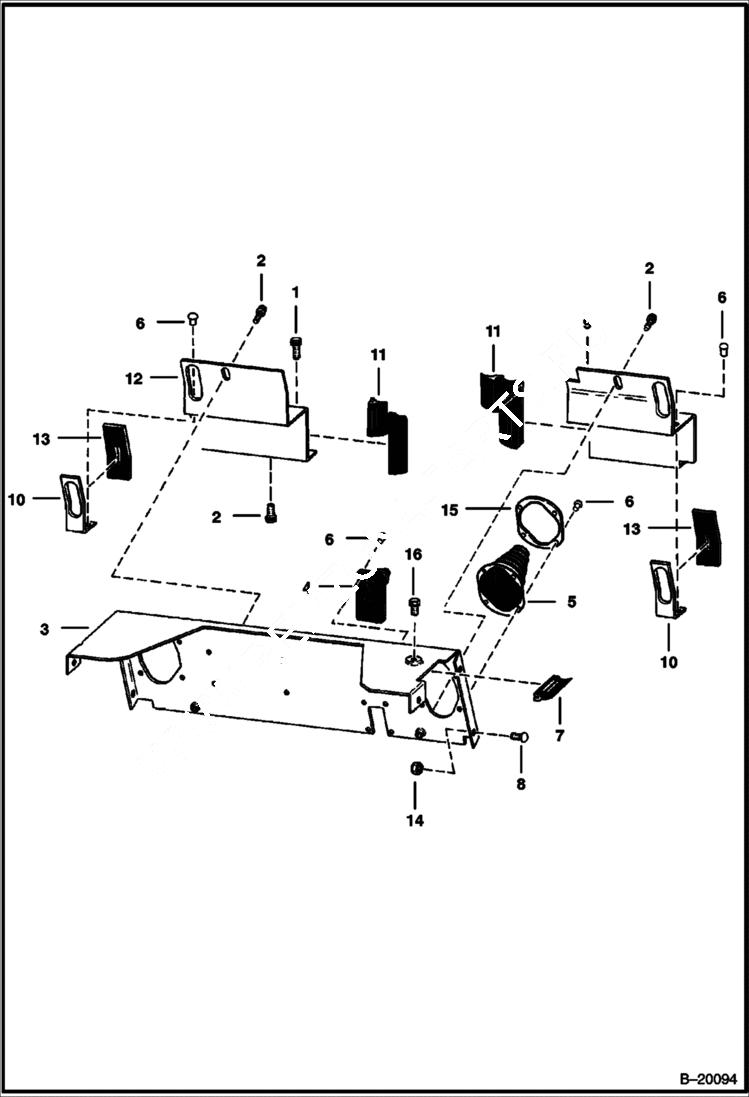

Запчасти Bobcat 700s PANELS MAIN FRAME

1

84G3712

BOLT 5

2

84G3716

SCREW 5

3

6564674

SHIELD Also Order Ref. 16

4

BOOT NLA - W/Metal Insert - Was 6571648 - A

5

6532127

BOOT Order Ref. 16 - Was 6655676 - A

6

6630207

RIVET 5 Was 6512797 - A

7

4126590

MOULDING bulk - sold per foot

8

37C616

BOLT Was 6514537 - A

9

6564670

SHIELD If both shield and floor plate are slotted, use bolt, washer and nut

10

6564982

RETAINER

11

6513152

SEAL bulk - sold per foot

12

6564671

SHIELD If both shield and floor plate are slotted, use bolt, washer and nut

13

6564976

SEAL Foam Block

14

57D6

NUT 5

15

PLATE NLA - Order Ref. 5 - Was 6536392 - A

16

6598805

PLUG
