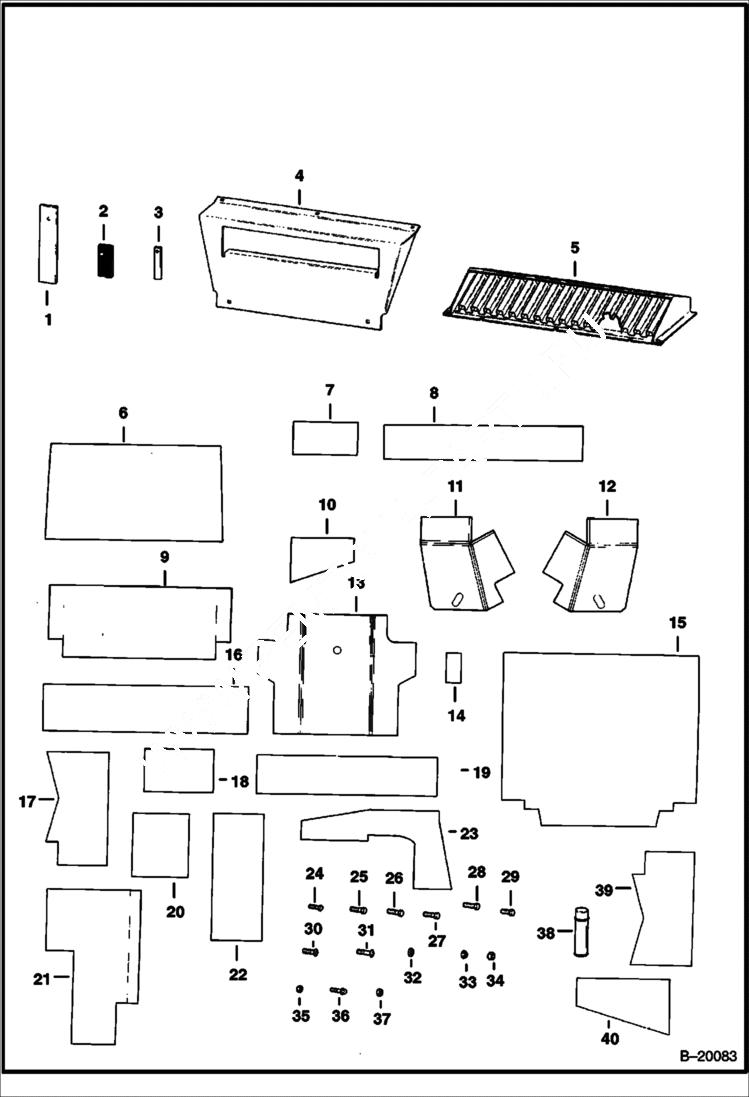

Запчасти Bobcat 700s SOUND OPTION ACCESSORIES & OPTIONS

1

6565134

COVER cylinder

2

6565141

COVER tie down slot - Rubber

3

6567664

COVER tie down slot - Metal

4

6579562

SHIELD tailgate

5

6579624

SHIELD radiator

6

6577264

INSULATION tailgate - Lower

7

6579418

INSULATION cab

8

6579420

INSULATION tailgate - Upper

9

6579422

INSULATION panel

10

6579423

INSULATION panel

11

6579487

INSULATION air inlet

12

6579488

INSULATION air inlet

13

6579495

INSULATION transmission

14

6579694

INSULATION steering lever

15

6579749

INSULATION cab back

16

6579750

INSULATION radiator shield

17

6579979

INSULATION

18

6579980

INSULATION blower housing - Front

19

6579981

INSULATION blower housing - Lower

20

6579982

INSULATION blower housing - Upper

21

6579984

INSULATION fendor

22

6579985

INSULATION fendor

23

6579986

INSULATION fendor

24

17C412

BOLT 5

25

17C614

BOLT

26

17C616

BOLT 5

27

17C620

BOLT

28

1CM1235

BOLT Was 4CM1235 - A

29

6CM1220

BOLT

30

7C620

BOLT Use W/Ref. 2

31

10C616

BOLT 10 Use W/Ref. 4

32

25E17

WASHER 5 Use W/Ref. 30

33

57D4

NUT Use W/Ref. 24

34

61D6

NUT 5

35

81D6

NUT Use W/Ref. 31

36

84G3716

SCREW 5 Use W/Ref. 1

37

85D6

NUT, 5 Use W/Ref. 30

38

6632469

ADHESIVE spray can

39

6700691

INSULATION

40

6700692

INSULATION
