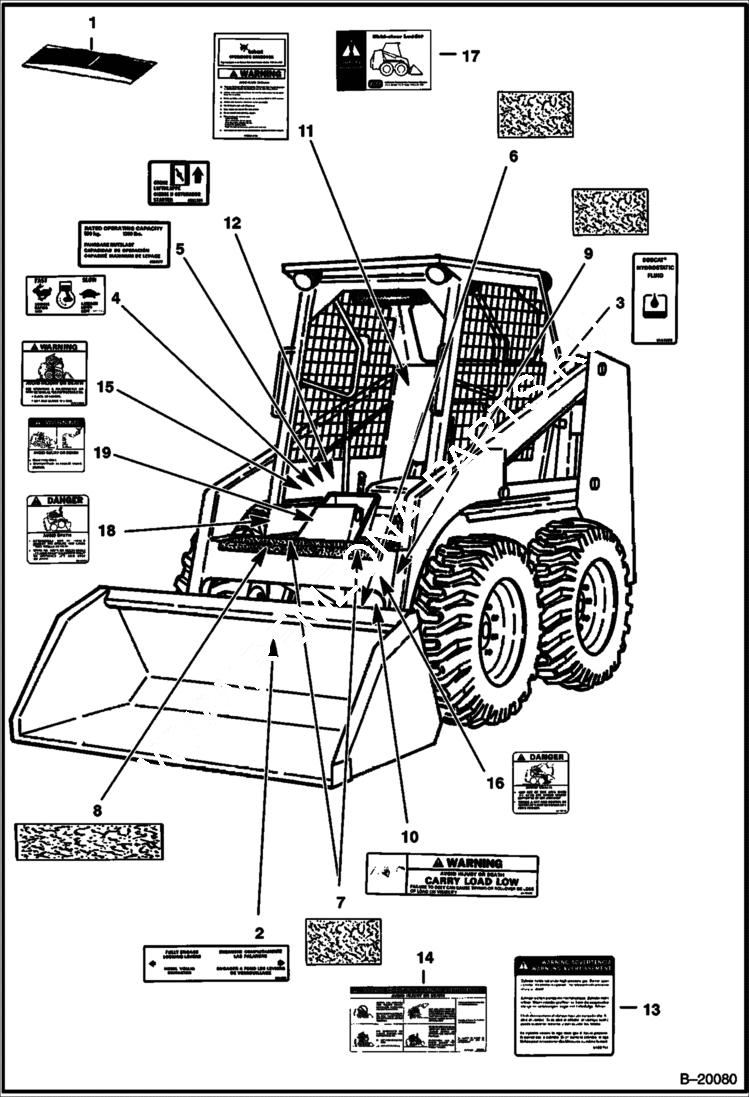

Запчасти Bobcat 700s DECALS ACCESSORIES & OPTIONS

1

6569281

KIT Decal - Ref. 2-11, 15, 16, 18 & 19 & Ref. 2-8, 10, 12 & 14 on Ill. B20081

2

6561383

DECAL, OPERATION 5 Bob-Tach locking levers

3

6565990

DECAL, OIL HYD 5 hydrostatic fluid fill

4

6735140

DECAL, THROTTLE Was 6557565 - A

5

6561377

DECAL capacity

6

6553976

SAFETY TREAD 127 x 203 mm (5 x 8'')

7

6577949

SAFETY TREAD 6.8'' x 8.75''

8

6553978

SAFETY TREAD 35'' x 8''

9

6554100

TREAD 76,2 x 152,4 mm (3 x 6'')

10

6579528

DECAL, WARNING carry load low

11

6567795

HANDBOOK, OPERATOR'S W/WIRE ROPE

11

6558309

WIRE ROPE bulk - sold per foot - Also Order (2) of 6558310 sleeve - Was 6558305 - A

11

6558310

SLEEVE wire rope

12

6561385

DECAL choke - Not in Kit

13

6577826

DECAL cold start instructions - Not in Kit

14

DECAL NLA - warning - Order Ref. 15, 16 & 18 & Ref. 2 on Ill. B20081 - Was 6575855 - A

15

6702255

DECAL warning

16

6579639

DECAL danger

17

6556500

MANUAL EMI SAFETY - LOADER not in kit

18

6579509

DECAL danger

19

6710358

DECAL warning
