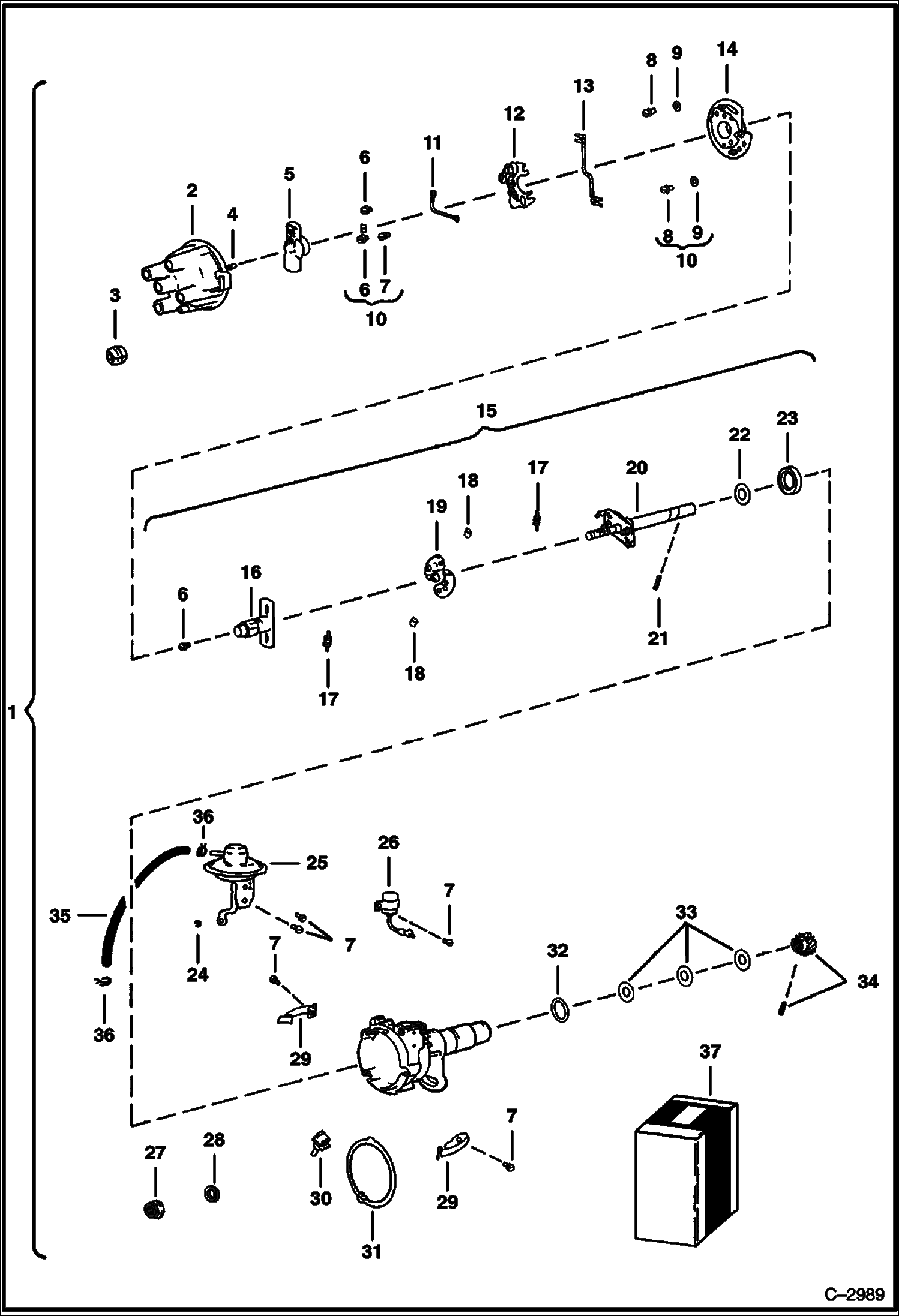

Запчасти Bobcat 700s DISTRIBUTOR POWER UNIT

1

6632618

DISTRIBUTOR

2

6632816

CAP W/Ref. 3 & 4

3

CAP NSS

4

6632794

CARBON ASSY

5

6632795

ROTOR

6

SCREW NSS

7

SCREW NSS

8

SCREW NSS

9

WASHER NSS

10

6632818

SET SCREW kit - W/Ref. 6-9

11

6632810

WIRE

12

6632813

POINTS

13

6632811

WIRE

14

6632820

BREAKER PLATE

15

DISTRIBUTOR NLA - Order Ref. 1 - W/Ref. 6 & 16 -22 - Was 6632819 - A

16

CAM NSS

17

SPRING NSS

18

PLUGS NSS

19

WEIGHTS NSS

20

SHAFT NSS

21

PIN NSS

22

WASHER NSS

23

6632809

SEAL

24

CLIP NSS

25

6632821

VACUM advance - W/Ref. 24

26

6632815

CONDENSER

27

42DM8

NUT

28

6632682

WASHER

29

HOLDER NSS

30

6632814

TERMINAL

31

6632817

GASKET

32

25K30028

O RING 10

33

6632796

WASHER KIT

34

6632812

SPROCKET

35

6632645

HOSE

36

6632844

CLAMP

37

6576315

IGNITION KIT Ref. 5, 12, 26 & 4 Spark Plugs
