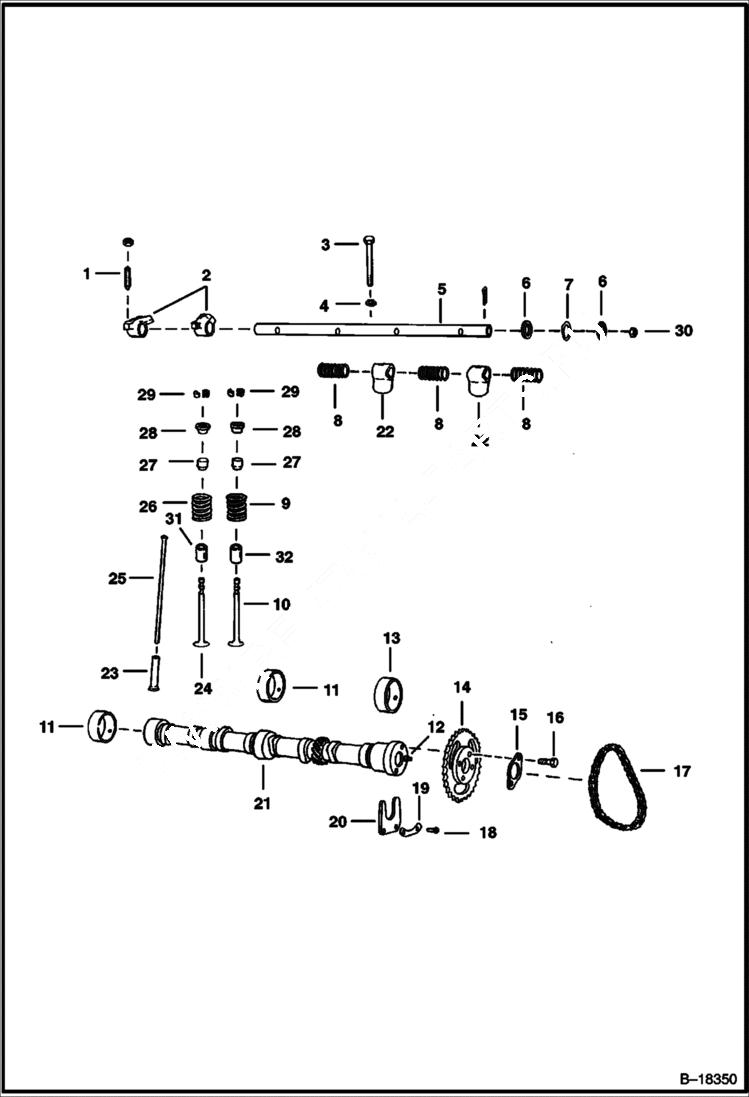

Запчасти Bobcat 700s VALVE TRAIN (Ford Engine) POWER UNIT

1

6512605

SCREW rocker arm adjusting

2

6512471

ROCKER ARM rocker - R.H.

2

ROCKER ARM NLA - rocker - LH - Was 6512472 - A

3

17C636

BOLT Was 17C000634B - B

4

SEAT NLA - Was 6512469 - A

5

SHAFT NLA - Was 6512470 - A

6

WASHER NLA - Was 6512606 - A

7

WASHER NLA - Was 6512529 - A

8

SPRING NLA - Was 6512478 - A

9

SPRING NLA - intake - Was 6598077 - A

10

6513684

VALVE intake - Use 6512468 Key - Was 6630429 - A

11

BEARING NLA - Order 6696958 - camshaft - Center & Rear - Std. I.D. & O.D. - Was 6512431 - A

11

BEARING NLA - cam - Std. I.D. - .020 O.D. - Was 6512433 - A

12

DOWEL NLA - Was 6512530 - A

13

6512430

BEARING cam - Front Std. I.D. & O.D.

13

BEARING NLA - cam - Std. I.D. - .020 O.D. - Was 6512434 - A

14

SPROCKET NLA - camshaft - Was 6512428 - A

15

RETAINER NLA - Was 6512429 - A

16

17C510

BOLT

17

6512436

CHAIN timing

18

17C410

BOLT 10

19

RETAINER NLA - Was 6672534 - A

20

6512437

PLATE

21

NLA - Was 6512427

22

BRACKET NLA - support - Was 6630436 - A

23

6669568

TAPPET Std. - Was 6665230 - A

23

6512455

TAPPET .004 Oversize

24

VALVE exhaust - Stellite NLA - exhaust - Stellite - Was 6630427

25

6512473

PUSH ROD

26

SPRING NLA - exhaust - Stellite - Was 6598076 - A

27

6599544

SEAL Without Spring

27

6512474

SEAL W/Spring

28

ROTATOR NLA - exhaust - Stellite - Was 6598078 - A

28

6512467

RETAINER intake - Was 6598080 - A

29

KEY NLA - Stellite - Was 6513683 - A

29

1 LOCK NLA - Was 6690165 - A

30

PLUG NSS - W/Ref. 5 - Was 6648189 - A

31

6648800

VALVE GUIDE valve, exhaust - Plain Was 6512464 - A

31

GUIDE NLA - valve, exhaust - Shouldered Was 6512465 - A

32

GUIDE NLA - valve, intake - plain - Order Ref. 31 - Was 6512462 - A
