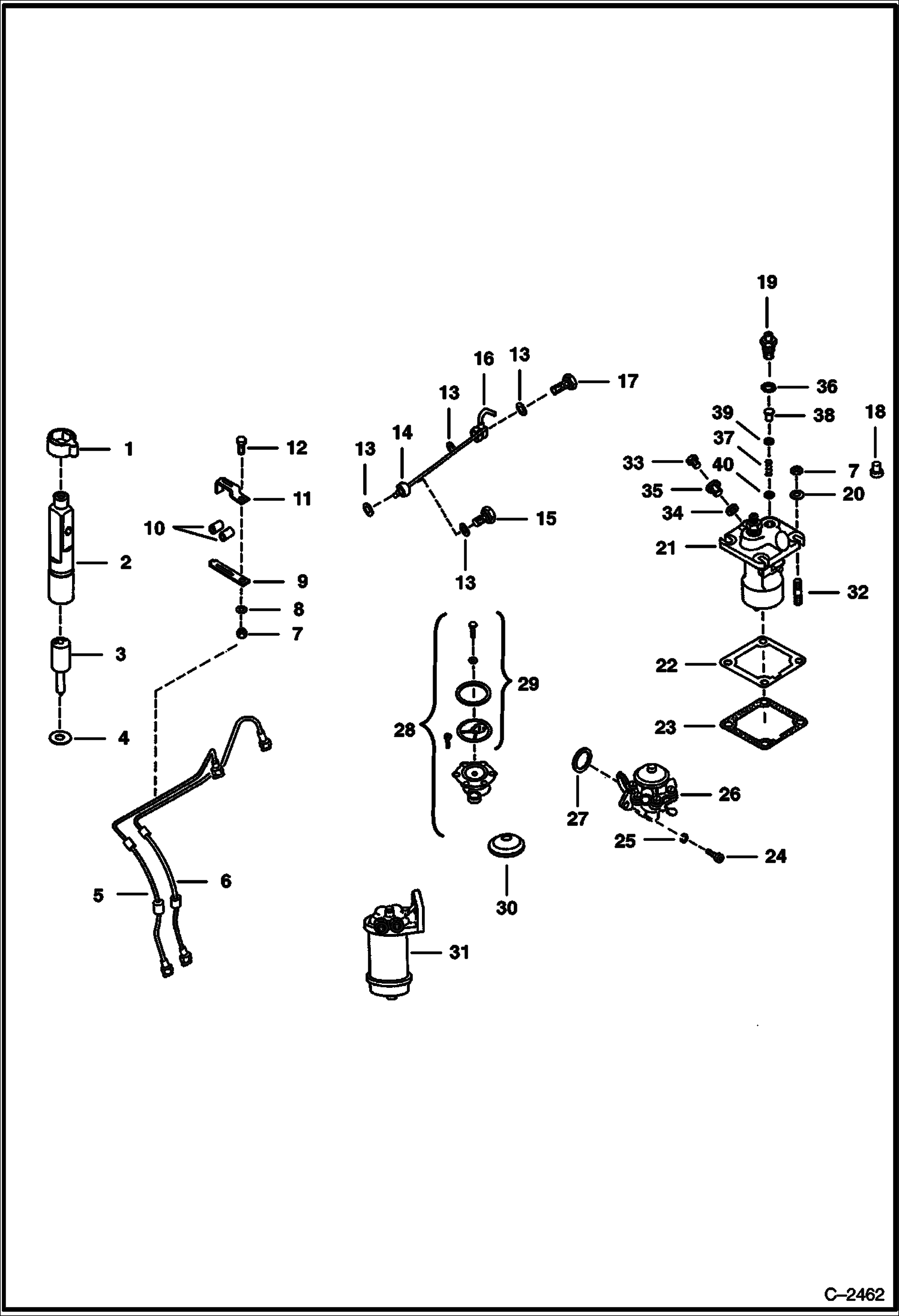

Запчасти Bobcat 700s FUEL SYSTEM POWER UNIT

1

6513802

CAP

2

6513803

INJECTOR W/Ref. 3

3

6513804

NOZZLE

4

6664183

WASHER Was 6511938 - A

5

6513798

TUBE

6

6513796

TUBE

7

1DM8

NUT

8

6513740

WASHER

9

6512630

PLATE

10

6513767

SLEEVE rubber

11

6512629

CLAMP

12

1CM612

BOLT Was 4CM612 - A

13

1FM80115

WASHER

14

6513794

TUBE

15

6555923

BOLT banjo - Was 4152019B - A

16

6630583

TUBE Was 6513795 - A

17

6512631

BOLT banjo

18

6511934

CAP

19

6599477

ADAPTER

20

6513807

WASHER

21

6513805

PUMP injection

22

6513808

SHIM

23

6513806

GASKET

24

1GM616

BOLT

25

6512626

WASHER

26

FUEL PUMP NLA - Pierbury - Order 6658087 - Was 6513747 - A

26

6658087

FUEL PUMP

27

6516118

O-RING for Pierbury Pump

27

6658090

O-RING for IMSA Pump

28

6516117

REPAIR KIT Fuel Pump-for Pierbury Pump

28

6658089

REPAIR KIT for IMSA Pump

29

REPAIR KIT NLA - fuel pump - For Pierburg Pump - Was 6516116 - A

29

6658088

REPAIR KIT for IMSA Pump

30

6516115

COVER top - for Pierbury Pump

31

6560348

FITLER, FUEL ASSY See Illustration FUEL FILTER/ B5653

32

6511936

STUD

33

6599475

PLUG bleeder

34

6599476

WASHER

35

6599474

PLUG

36

6518186

WASHER sealing

37

6669373

SPRING

38

6669387

ADAPTER

39

6669388

WASHER

40

6669389

WASHER
