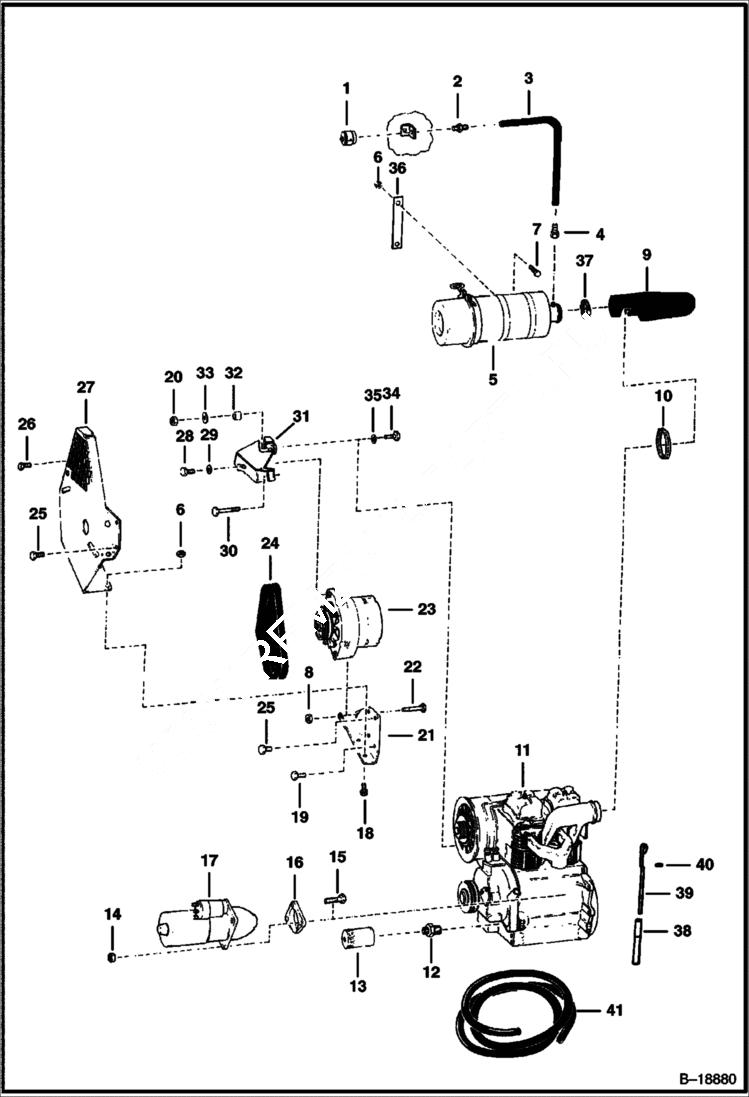

Запчасти Bobcat 700s ENGINE & ATTACHING PARTS POWER UNIT

1

6515007

GAUGE

2

6505813

CONNECTOR

3

HOSE NLA - 24'' (609,6 mm) - Order Ref. 41 - Was 6559797 - A

4

6563452

FITTING

5

AIR CLEANER See Illustration AIR CLEANER/ B18168

6

57D5

NUT

7

31C516

BOLT

8

39DM10

NUT Use W/Delco Alt.

8

85D6

NUT, 5 Use W/Bobcat Alt.

9

6563409

HOSE

10

44H48

CLAMP Was 6515576 - A

11

ENGINE See Illustration ENGINE/ B18186

12

6513892

ADAPTER

13

6511793

ELEMENT engine oil

14

61D6

NUT 5

15

17C636

BOLT

16

6562264

BLOCK

17

STARTER See Illustration STARTER/ C2119 See Illustration STARTER/ D1762

18

35C512

BOLT Was 31C000512B - A

19

1CM670

BOLT

20

85D6

NUT, 5

21

6559844

BRACKET

22

1CM1080

BOLT Use W/Delco Alt.

22

17C648

BOLT 5 Use W/Bobcat Alt.

23

ALTERNATOR See Illustration ALTERNATOR/ B18939 See Illustration ALTERNATOR/ B18156 See Illustration ALTERNATOR/ C3312 See Illustration ALTERNATOR/ B18939A

24

6559848

BELT Set of 2

25

1CM820

BOLT Was 4CM820 - A

26

1CM830

BOLT

27

6565167

SHIELD

28

29CM825

BOLT Use W/Delco Alt.

28

35C516

BOLT 10 Use W/Bobcat Alt.

29

25E16

WSHR

30

1CM860

BOLT

31

6563145

BRACKET

32

6560846

BUSHING

33

619021

WASHER, 5

34

17C628

BOLT

35

25E17

WASHER 5

36

6563705

SHIM

36

6569874

SHIM

37

42HL300

CLAMP Was 6598799 - A

38

6598759

BUSHING dipstick

39

6632216

DIPSTICK oil

40

6515986

O-RING

41

6557720

HOSE bulk - Sold Per Foot
