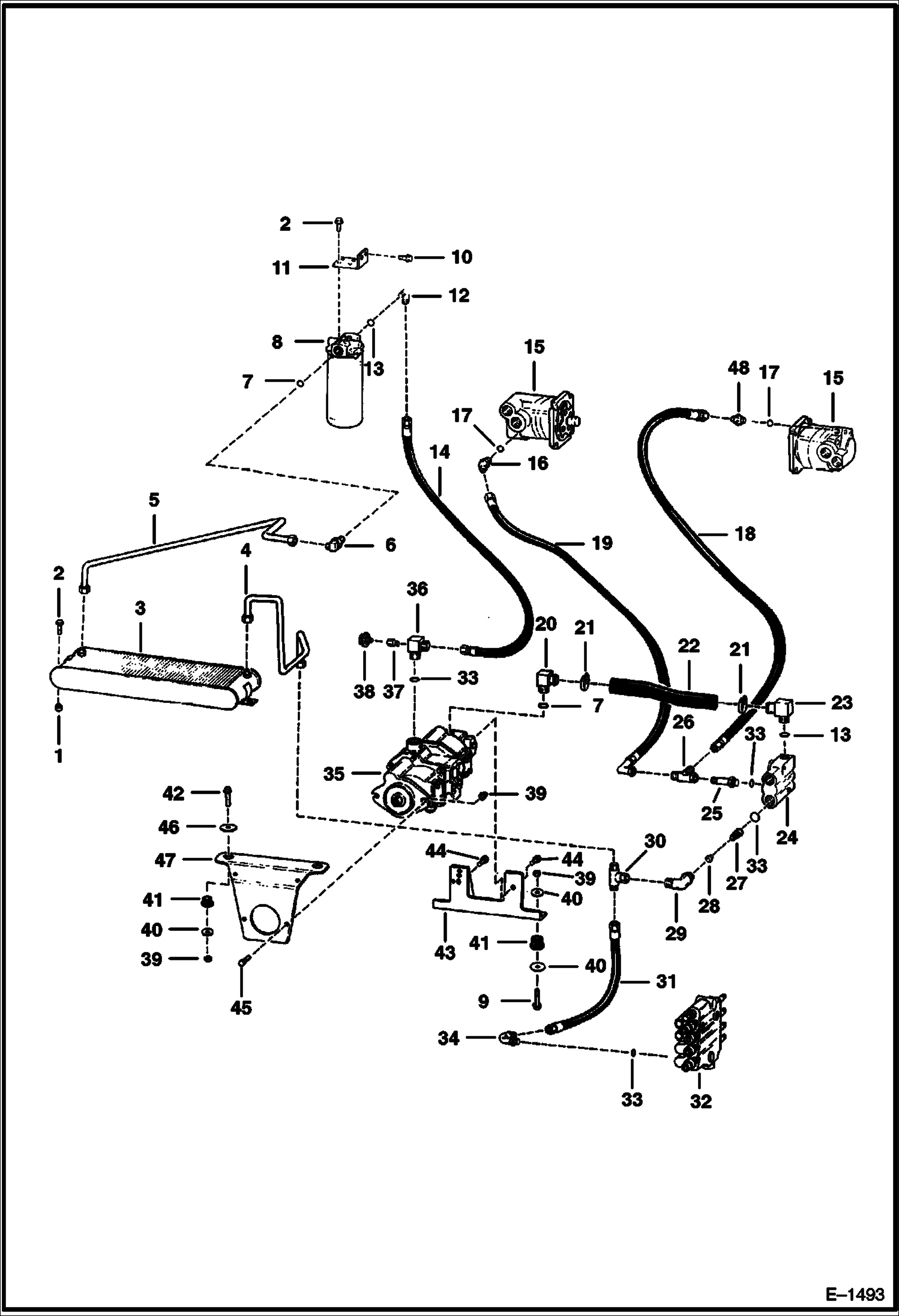

Запчасти Bobcat 700s HYDROSTATIC CIRCUITRY (S/N 15001 & Above) HYDROSTATIC SYSTEM

1

85D6

NUT, 5

2

35C616

BOLT 5

3

6560954

OIL COOLER

4

6565339

TUBE

5

6565342

TUBE

6

17KB1012

FITTING, HYD ELBOW W/Ref. 7 - Was 1302104B - A

7

79K12

O RING 10 Was 79K000016B - D

8

FILTER ASSY. See Illustration HYDROSTATIC OIL FILTER/ C2818

8

6668819

FILTER, OIL HYD Was 6598903 - A

9

17C836

BOLT

10

84G3712

BOLT 5

11

6565336

BRACKET

12

17K8

FITTING W/Ref. 13

13

79K12

O RING 10

14

6702857

HOSE Was 2525543B - A

15

MOTOR See Illustration HYDROSTATIC MOTOR/ D1443

16

18K5

ELBOW W/Ref. 17

17

79K6

O RING 10

18

1518597

HYD HOSE 14'' (355,6 mm)

18

6542521

HOSE 16'' (406,4 mm)

19

6564714

HOSE

20

6567883

ELBOW W/Ref. 7

21

44H20

CLAMP Was 6666864 - A

22

6565344

HOSE

23

1321499

FITTING W/Ref. 13 - Was 6567884 - A

24

6565748

BLOCK

25

731795

CONNECTR W/Ref. 33

26

13K5

TEE

27

6565425

SPRING

28

6515078

POPPET

29

6565701

ELBOW W/Ref. 33

30

14K7

TEE

31

TUBE NLA - Order 6567419 Hose

31

6567419

HOSE

32

VALVE See Illustration HYDRAULIC CONTROL VALVE/ B18925

33

79K10

O RING 10

34

6532179

ELBOW W/Ref. 33 - Was 17K000007B - B

35

PUMP See Illustration HYDROSTATIC PUMP/ D1392

36

6565630

ELBOW W/Ref. 33

37

6563922

SNUBBER W/Filter

37

6563920

FILTER

38

6671062

SWITCH hydro. pressure - Was 6664577 - A

39

85D8

NUT, 5

40

6564692

WASHER

41

6560633

DAMPENER rubber

42

35C840

BOLT

43

6569553

BRACKET

44

17C816

BOLT

45

17C824

BOLT 5

46

6560899

WASHER

47

6562697

MOUNT

48

15K5

FITTING W/Ref. 17
