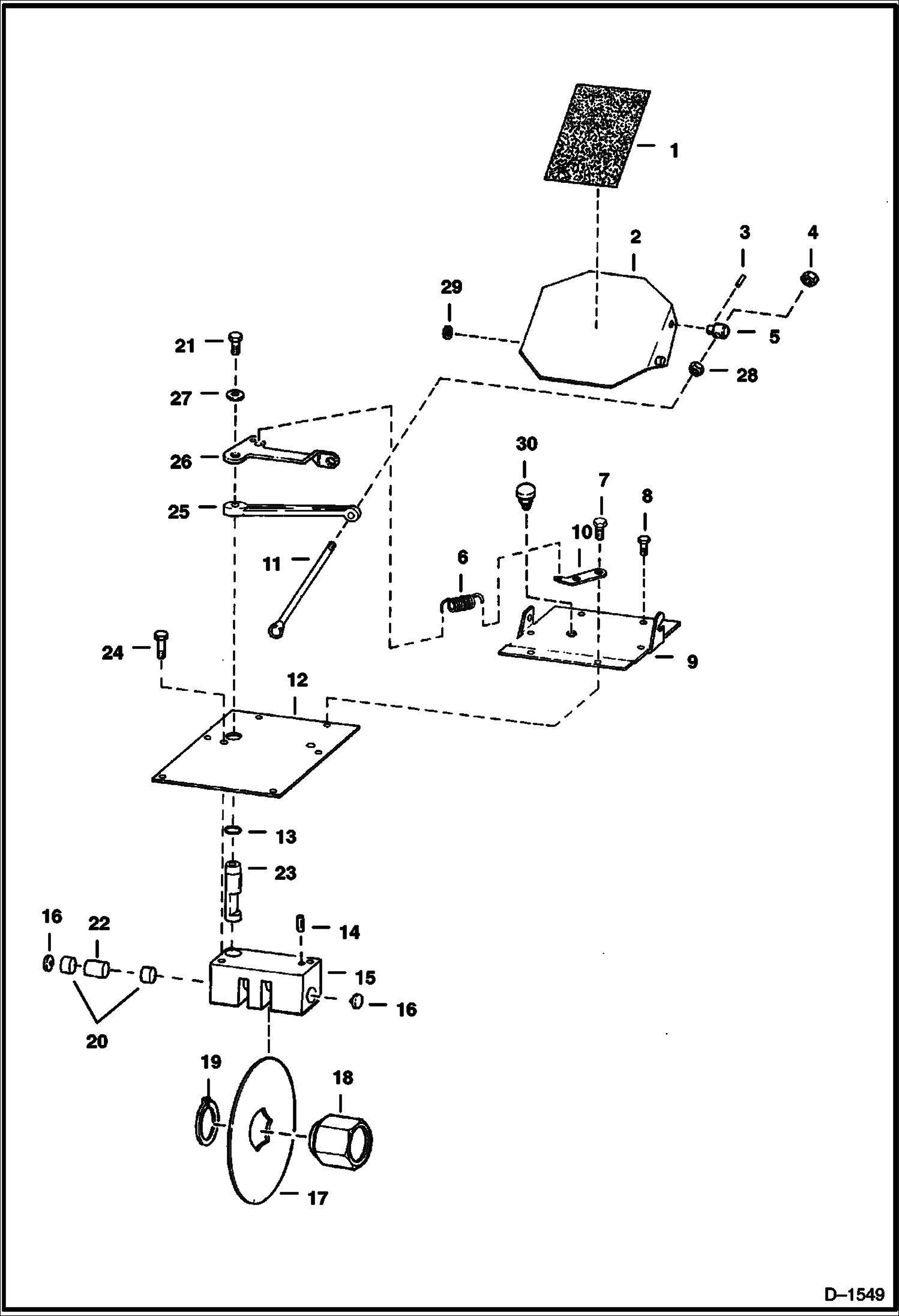

Запчасти Bobcat 700s DISC BRAKE DRIVE TRAIN

1

6553976

SAFETY TREAD 127 x 203 mm (5 x 8'')

2

6563187

PEDAL

3

14J2516

PIN

4

85D8

NUT, 5

5

6563178

PIVOT

6

6584584

SPRING Was 6505076 - A

7

84G3716

SCREW 5

8

84G3712

BOLT 5

9

6575654

COVER Also Order Ref. 30 - Was 6554093 - A

10

6559218

ANGLE

11

6569601

ROD

12

6558467

COVER

13

25K30100

O RING 10

14

784466

DOWEL PIN

15

6562757

BLOCK

16

6562756

WASHER wear

17

6559237

DISC

18

6558208

HUB

19

742666

SNAP RING

20

6558659

PAD

21

17C820

BOLT

22

6558660

PAD

23

6562755

PIN

24

17C812

BOLT

25

6563823

LEVER

26

6577552

BRACKET Was 6563173 - A

27

6506477

WASHER

28

61D8

NUT 5

29

25E21

WASHER 5

30

6632601

BREATHER
