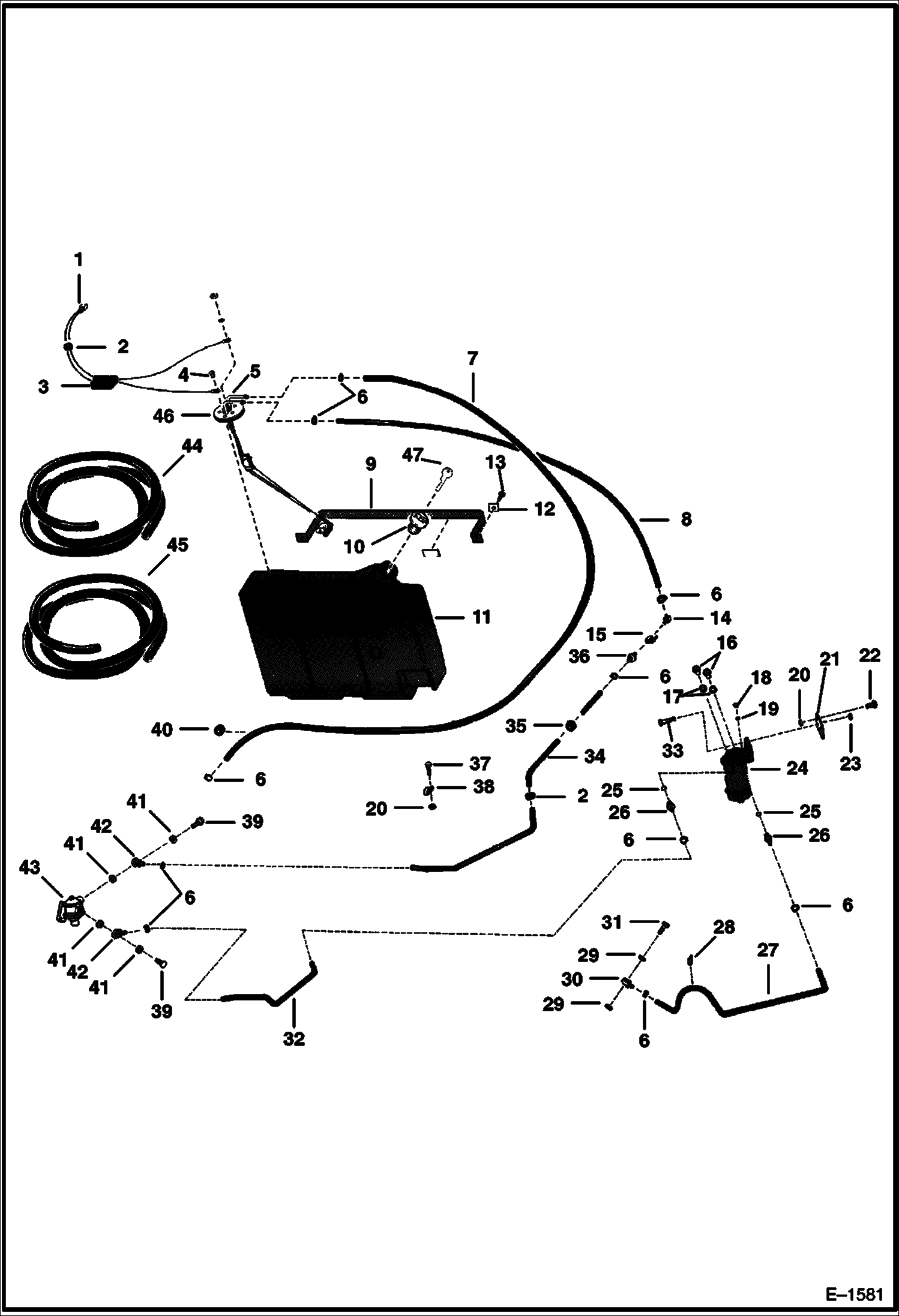

Запчасти Bobcat 700s FUEL SYSTEM (S/N 11633 Thru 15090) MAIN FRAME

1

6560117

WIRE

2

742876

GROMMET

3

6562606

SEAL

4

87G1010

SCREW Was 85G001010B - B

5

6563210

SENDER Fuel - includes gasket

6

42HS04

CLAMP, HOSE Was 6515575 - A

7

HOSE NLA - 84'' (214 cm) - Order Ref. 44

8

HOSE NLA - 35'' (889 mm) - Order Ref. 45

9

6562559

BAND

10

6661114

CAP. DIESEL Green - Was 6632468 - A

10

CAP NLA - locking - W/Ref. 47 - Code 6C020 - Was 6635877 - A

10

6661696

CAP, FUEL LOCKING locking - W/Key Code PK510

11

TANK See BTI216 NLA

12

6559447

WASHER square

13

84G3716

SCREW 5

14

6598753

ELBOW

15

6632593

VALVE shut-off - Was 6512138 - A

16

6515682

PLUG

17

6515466

WASHER

18

6515676

PLUG

19

6515468

WASHER

20

61D5

NUT

21

6562402

BRACKET

22

10C512

BOLT Was 6553808 - A

23

61D6

NUT 5

24

FILTER See Illustration FUEL FILTER/ B5653

25

25K20014

O RING 10

26

6560355

FITTING

27

HOSE NLA - 23'' (584,2 mm) - Order Ref. 44

28

6513471

CLAMP

29

2FM12155

WASHER

30

6511033

CONNECTOR banjo

31

6666396

SCREW hollow - Was 6514745 - A

32

HOSE NLA - 18'' (457,2 mm) - Order Ref. 44

33

17C616

BOLT 5

34

HOSE NLA - 30'' (762 mm) - Order Ref. 44

35

6515603

GROMMET

36

6505813

CONNECTOR Use W/Barbless Fuel Valve

37

17C512

BOLT 5

38

30H30

CLAMP

39

6555921

BOLT hollow

40

1303932

GROMMET Was 1318291 - B

41

6513763

WASHER Was 2FM14180B - A

42

6511899

ADAPTER banjo

43

FUEL PUMP See Illustration FUEL SYSTEM/ C2462

44

6577821

HOSE bulk - sold per foot - Was 672221 - A

45

6577822

HOSE bulk - sold per foot

46

6630972

GASKET

47

6654374

KEY Code GC020

47

6587458

KEY Code PK510
