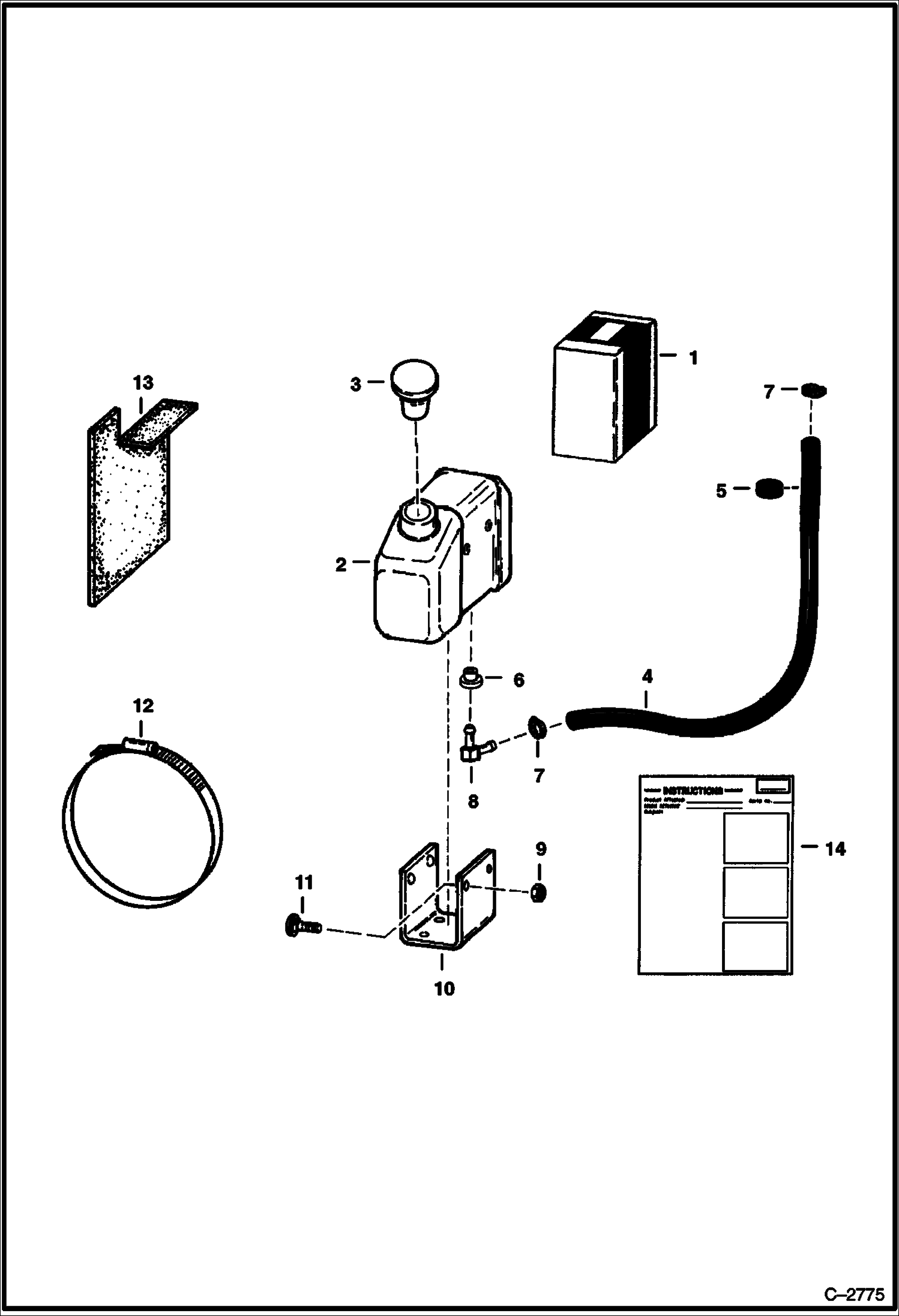

Запчасти Bobcat 700s OVERFLOW TANK ACCESSORIES & OPTIONS

1

6563781

KIT Ref. 2 - 14

2

TANK NLA - W/O Barbed Fitting - Order 6576660 Tank - Was 6562509 - A

2

6576660

TANK, WATER COOLANT W/bottom molded barbed elbow

3

6702797

CAP Was 6558658 - A

4

6563655

HOSE

5

1021036

GROMMET

6

6553411

BUSHING Not Required for 6576660 Tank

7

42HS04

CLAMP, HOSE Was 6515575 - A

8

6598795

ELBOW Not Required for 6576660 Tank

9

57D5

NUT

10

6562599

MOUNT

11

10C512

BOLT Was 6553808 - A

12

6598723

CLAMP

13

NLA - Was 6563656 - A

14

INSTRUCTIONS NLA - Print Instructions from BASS - Was 6566204 - A
