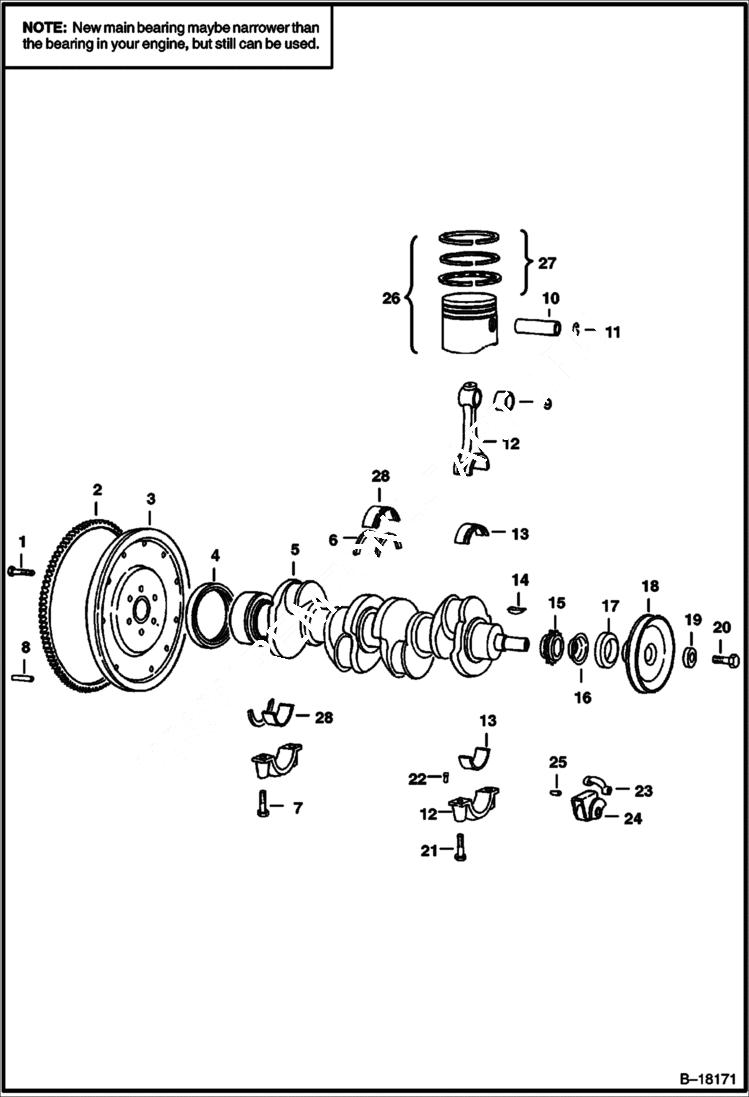

Запчасти Bobcat 700s CRANKSHAFT & PISTON POWER UNIT

1

BOLT NLA - Was 6512607 - A

2

6512453

RING GEAR

3

FLYWHEEL NLA - W/Ref. 2 - Was 6512452 - A

4

7030192

SEAL rear - Was 6512490 - A

5

CRANKSHAFT NLA - Was 6512441 - A

6

WASHER NLA - thrust - std - .091''-.093'' - two halves - A

6

6512609

WASHER thrust (.0025) - Two Halves

6

6512610

WASHER thrust (.005) - Two Halves

6

WASHER NLA - thrust (.0075) - Two Halves - Was 6512611 - A

6

WASHER NLA - thrust (.010) - Two Halves - Was 6512612 - A

7

17C746

BOLT Main

8

6512920

DOWEL

9

6598356

BUSHING One Bushing

10

PIN NLA - piston (Std.) - Complete Set - Was 6512406 - A

11

RETAINER NLA - Was 6512408 - A

12

ROD NLA - Connecting W/Ref. 9 - Was 667022 - A

13

6666615

BEARING rod (Std.) - Complete Set - Was 6512680 - A

13

BEARING NLA - rod (-.002) - One Bearing - Was 6512677 - A

13

6666350

BEARING rod (-.010) - Complete Set - Was 6512678 - A

13

6674885

BEARING rod (-.020) - One Bearing - Was 6669571 - A

13

6666614

BEARING rod (-.030) - Complete Set - Was 6512679 - A

13

BEARING NLA - rod (-.040) - Was 6632632 - A

14

6512641

KEY

15

SPROCKET NLA - Was 6512442 - A

16

SLINGER NLA - oil

17

6648209

SEAL Was 6512489 - A

18

6558802

PULLEY 2 Grooves

19

WASHER NLA - Was 622284B - A

20

18C724

BOLT

21

BOLT NLA - rod - set of 8 - Was 6512604 - A

22

1JM4010

DOWEL

23

6512439

ARM

24

6512438

TENSIONER timing chain

25

6661790

PIN Was 6512440 - A

26

PISTON ASSY. NLA - W/Pin & Rings (Std.) - Was 6512403 - A

26

6658848

PISTON + .020 W/Pins & Rings

26

6665229

PISTON ASSY. W/Pins & Rings (+ .030) - Was 6512405 - A

26

6656408

PISTON + .040 W/Ring - W/Pin

27

6512409

RINGS Std. (Complete Set)

27

6658849

RINGS + .020 (Complete Set)

27

6512411

RINGS + .030 (Complete Set)

27

6656407

RINGS + .040 (Complete Set)

28

6674881

BEARING SET main (Std.) - See Note - One Complete Set - Was 6512445 - A

28

BEARING SET main (-.010) - One Complete Set - Was 6674882 - A

28

6674883

BEARING SET main (-.020) - One Complete Set - Was 6512448 - A

28

6674884

BEARING SET main (-.030) - One Complete Set - Was 6669272 - A

28

BEARING NLA - main +.015 OD - Std. ID - One Bearing - Was 6512600 - A

28

BEARING NLA - main +.015 OD, -.010 ID - One Bearing - Was 6512597 - A

28

BEARING NLA - main +.015 OD, -.020 ID - Was 6512598 - A

28

BEARING NLA - main +.015 OD, -.030 ID
