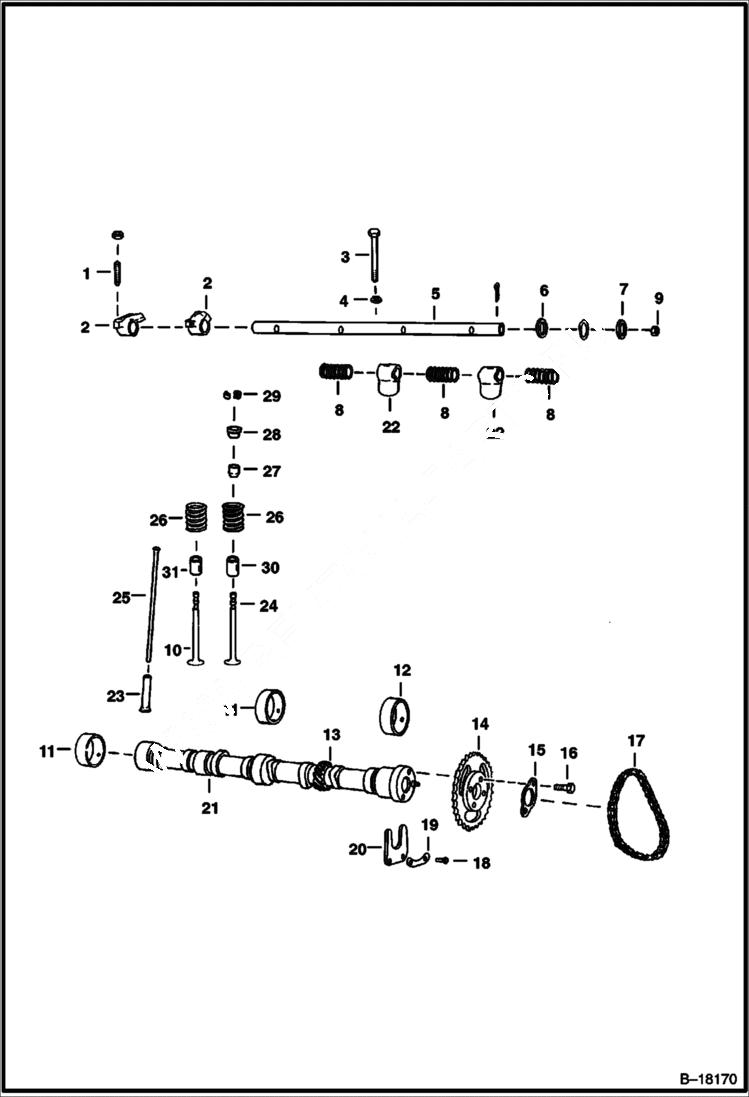

Запчасти Bobcat 700s VALVE TRAIN POWER UNIT

1

6512605

SCREW rocker arm adjusting

2

ROCKER ARM NLA - R.H. - Was 6512471 - A

2

ROCKER ARM NLA - LH - Was 6512472 - A

3

17C636

BOLT Was 17C000634B - A

4

SEAT NLA - Was 6512469 - A

5

SHAFT NLA - Was 6512470 - A

6

WASHER NLA - Was 6512606 - A

7

WASHER NLA - Was 6512529 - A

8

SPRING NLA - Was 6512478 - A

9

PLUG NSS - W/Ref. 5 - Was 6648189 - A

10

VALVE NLA - exhaust - Three Groove - Was 6599695 - A

10

VALVE See BTI194 NLA - exhaust - for Stellite Head - One Grove - Was 6630427 - A

10

VALVE NLA - exhaust (+.015 stem ) - Three Groove - Was 6513144 - A

11

BEARING NLA - Order 6696958 - camshaft - Center & Rear - Std. I.D. & O.D. - Was 6512431 - A

11

BEARING NLA - camshaft - Center & Rear - Std. I.D. - .020 O.D. -Was 6512433 - A

12

6512430

BEARING camshaft - Front -Std. I.D. & O.D.

12

BEARING NLA - camshaft - Front - Std. I.D. - .020 O.D. - Was 6512434 - B

13

DOWEL NLA - Was 6512530 - A

14

SPROCKET NLA - camshaft - Was 6512428 - B

15

RETAINER NLA - Was 6512429 - A

16

17C510

BOLT

17

6512436

CHAIN timing

18

17C410

BOLT 10

19

RETAINER NLA - Was 6672534 - A

20

6512437

PLATE

21

NLA - Was 6512427

22

BRACKET NLA - support - Was 6630436 - A

23

6669568

TAPPET Standard - Was 6665230 - A

23

6512455

TAPPET .004 Oversize

24

VALVE NLA - intake - Three Groove - Order 6513684 Valve & 6513683 Key - Was 6512459 - A

24

6513684

VALVE intake - Use Key 6512468 - Three Groove - Was 6630429 - A

24

VALVE NLA - intake (+.015 stem diameter) - 3 Groove - Was 6513146 - A

25

PUSH ROD NLA - Was 6512473 - A

26

SPRING NLA - intake valve - Was 6598077 - A

26

SPRING NLA - exhaust valve - For Stellite Head - Was 6598076 - A

27

6599544

SEAL Without Spring

27

6512474

SEAL With Spring

28

RETAINER NLA - spring - Was 6512467 - A

28

ROTATOR NLA - exhaust - For Stellite Head - Optional Head - Was 6598078 - A

29

1 LOCK NLA - Was 6690165 - A

29

KEY NLA - for Stellite Head - Optional Head - Was 6513683 - A

30

GUIDE NLA - valve - Intake - Plain - Order Ref. 31 - Was 6512462 - A

31

6648800

VALVE GUIDE valve - Exhaust - Plain - Was 6512464 - A

31

GUIDE NLA - valve - exhaust - Shouldered - Was 6512465 - A
