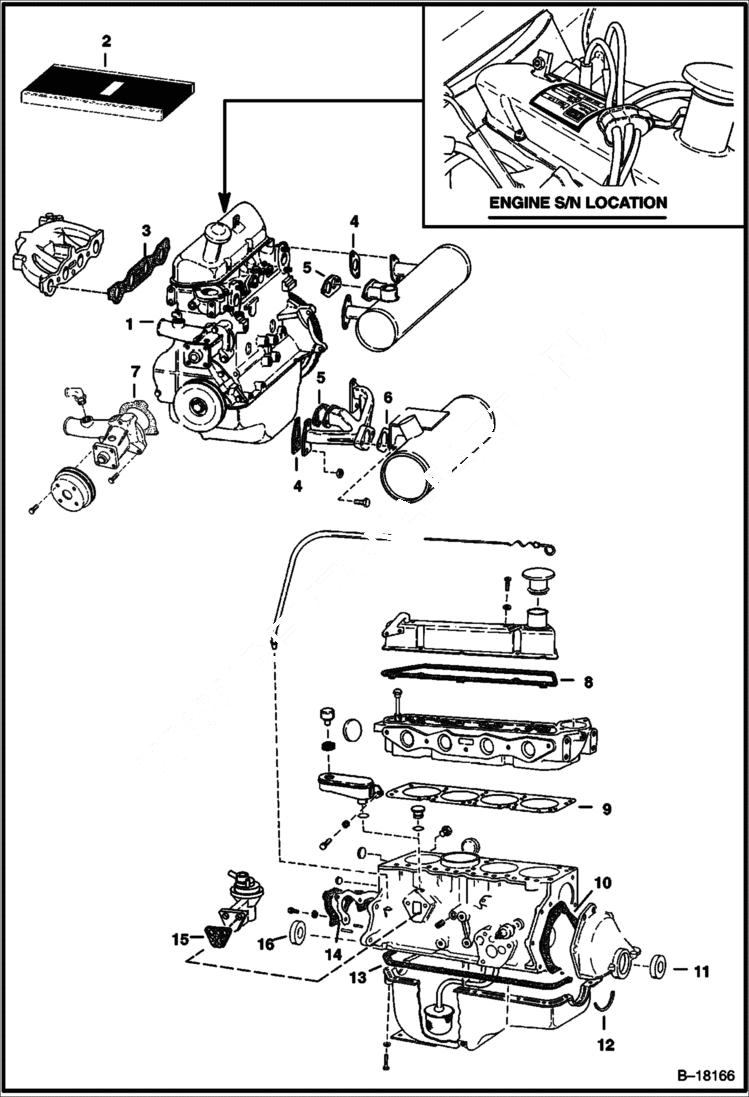

Запчасти Bobcat 700s ENGINE (Ford) POWER UNIT

1

ENGINE See BTI146 NLA - fuel pump, oilfilter & water pump - Does not include starter, alternator, flywheel air cleaner, crankshaft pulley, governor & carburetor - - Order 6565295 REM - Was 6565295 - A

1

6565295REM

ENGINE Remanufactured - fuel pump, oilfilter & water pump - Does not include manifold, starter, alternator, flywheel air cleaner, crankshaft pulley, governor & carburetor

1

SHORT BLOCK NLA - Includes crankshaft, pistons, rings, connecting rods, rod bearings, main bearings, camshaft, valve lifters, timing gears & timing chain - Was 6512397 - A

2

6567250

GASKET KIT Overhaul

2

GASKET KIT NLA - Valve Grind - Was 6564162 - A

3

GASKET See Illustration ENGINE & ATTACHING PARTS/ D1389 NLA - WAS 6512507 - A

4

6512509

GASKET See Illustration ENGINE & ATTACHING PARTS/ D1389

5

GASKET See Illustration ENGINE & ATTACHING PARTS/ D1389 NLA - Was 6512508 - A

6

6559603

GASKET See Illustration ENGINE & ATTACHING PARTS/ D1389

7

6512497

GASKET See Illustration WATER PUMP/ B2361

8

6512477

GASKET See Illustration CYLINDER BLOCK/ B18169 ROCKER ARM COVER

9

6512401

GASKET See Illustration CYLINDER BLOCK/ B18169 CYLINDER HEAD

10

6512399

GASKET See Illustration CYLINDER BLOCK/ B18169 FRONT COVER

11

6648209

SEAL See Illustration CYLINDER BLOCK/ B18169 FRONT COVER - WAS 6512489 - A

12

SEAL See Illustration CYLINDER BLOCK/ B18169 NSS

13

6669570

GASKET SET See Illustration CYLINDER BLOCK/ B18169 OIL PAN - W/Ref. 12 - WAS 6512495 - A

14

GASKET See Illustration CYLINDER BLOCK/ B18169 NLA - REAR OIL SEAL - WAS 6512451 - A

15

6512519

GASKET See Illustration FUEL SYSTEM/ D1481 SPACER

15

6660165

GASKET See Illustration FUEL SYSTEM/ D1481

16

7030192

SEAL rear - Was 6512490 - A
