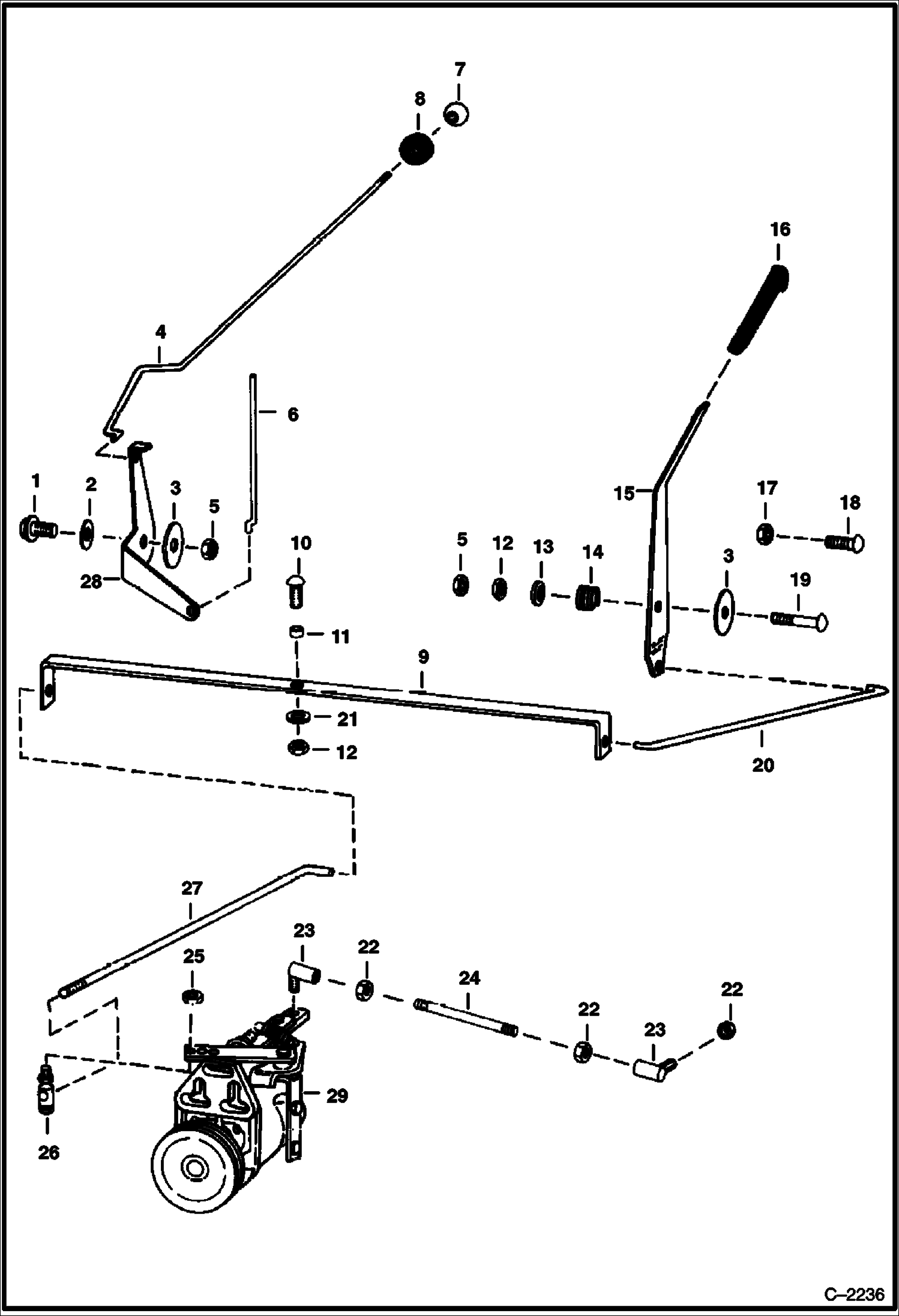

Запчасти Bobcat 700s THROTTLE & CHOKE POWER UNIT

1

6559092

BOLT

2

755589

WASHER

3

6546122

GASKET

3

6562127

WASHER

4

6557193

ROD

5

81D6

NUT

6

6557192

ROD

7

6519552

KNOB

8

6519484

GROMMET

9

6557196

LEVER

10

6557432

BOLT carriage - Was 3327196B - A

11

6544654

BUSHING

12

85D6

NUT, 5

13

6505623

WASHER

13

27E6

WASHER 5

14

6503387

SPRING

14

6562126

SPRING

15

6563940

LEVER

16

6553557

GRIP

17

6512893

NUT

18

37C616

BOLT Was 6514537 - A

19

7C632

BOLT carriage

19

7C640

BOLT

20

6562490

ROD

21

872229

WASHER

22

14D10

NUT

23

6515194

BALL JOINT ball

24

6554836

ROD

25

61D4

NUT 5

26

6557291

BALL JOINT

27

6562995

ROD

28

6557195

LEVER

29

GOVERNOR See Illustration PIERCE GOVERNOR/ D1448
