Запчасти Bobcat 700s ENGINE & ATTACHING PARTS POWER UNIT

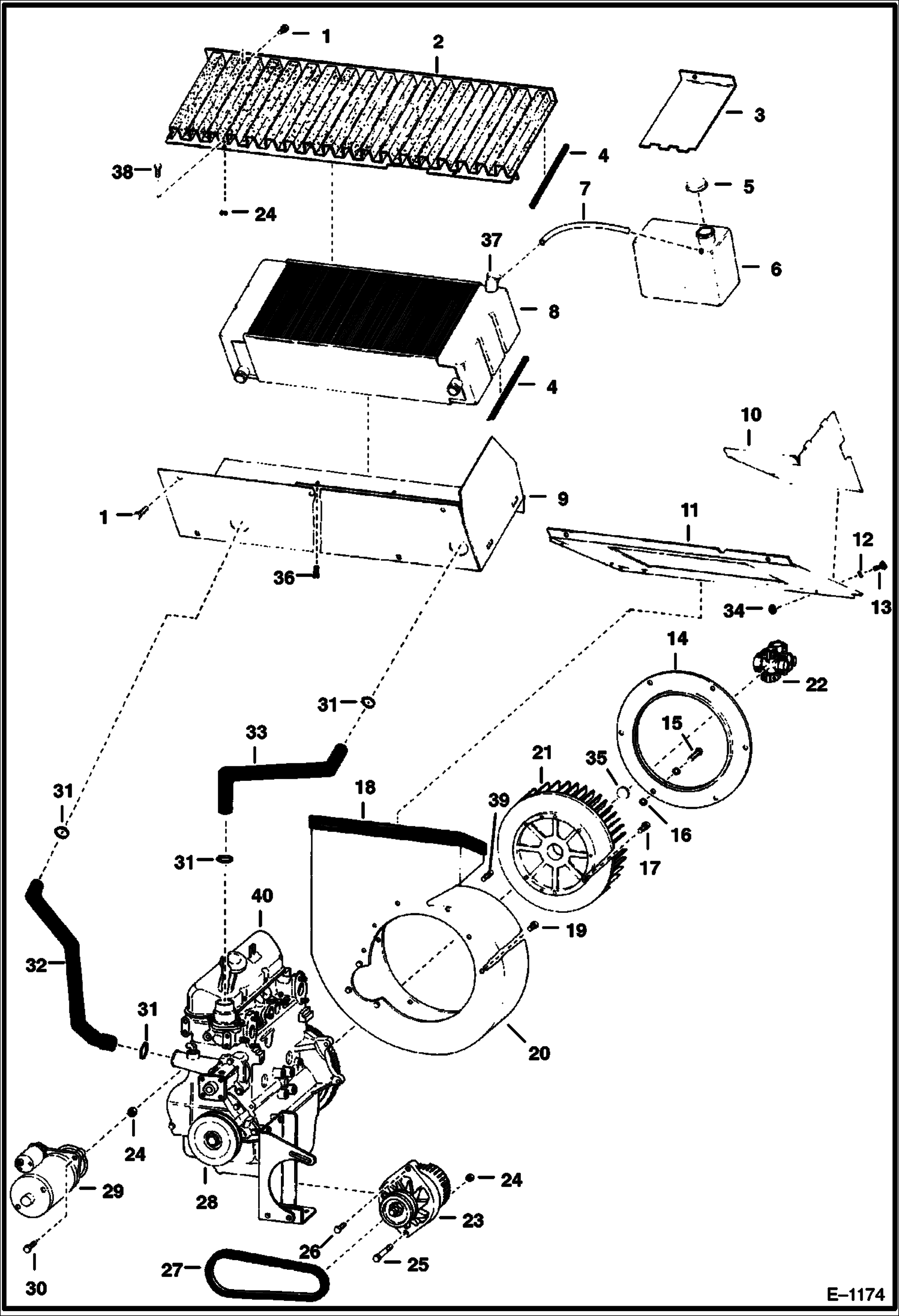

Схема запчастей Bobcat 700s - ENGINE & ATTACHING PARTS POWER UNIT

Артикул

Название

Примечание

Количество

1

84G3712

BOLT 5

2

6557243

GRILL

3

COVER NLA - Was 6557744 - A

4

6557422

MOULDING

5

6702797

CAP Was 6558658 - A

6

6555891

TANK

7

6557751

HOSE

8

6555933

RADIATOR

9

6557741

MOUNT radiator

10

6557242

COVER

11

6557027

SHIELD

12

774220

NUT spring

13

10C512

BOLT carriage - Was 6553808 - A

14

6557237

INLET

15

6557283

BOLT

16

6512960

CLIP

17

17C522

BOLT

18

6512785

MOULDING

19

17C624

BOLT 5

20

SHROUD NLA - fan - Was 6557238 - A

21

FAN NLA - Was 6557142 - A

22

U-JOINT See Illustration UNIVERSAL JOINT/ B17937

23

ALTERNATOR See Illustration ALTERNATOR/ B18159

24

57D6

NUT 5

25

17C644

BOLT

26

35C516

BOLT 10 Was 6554744 - A

26

29CM825

BOLT

27

6557143

BELT alternator

28

6558802

PULLEY

29

STARTER See Illustration STARTER/ C2145

30

17C620

BOLT

31

42H32

HS CLAMP5 Was 6513595 - A

32

6555984

HOSE radiator

33

6555983

HOSE radiator

34

6512894

NUT

35

6558410

PLUG

36

6555533

BOLT

37

6511985

CAP Was 6630156 - A

38

84G3716

SCREW 5

39

6512920

DOWEL

40

ENGINE See Illustration ENGINE/ B18166

Выбрано товаров: 41
