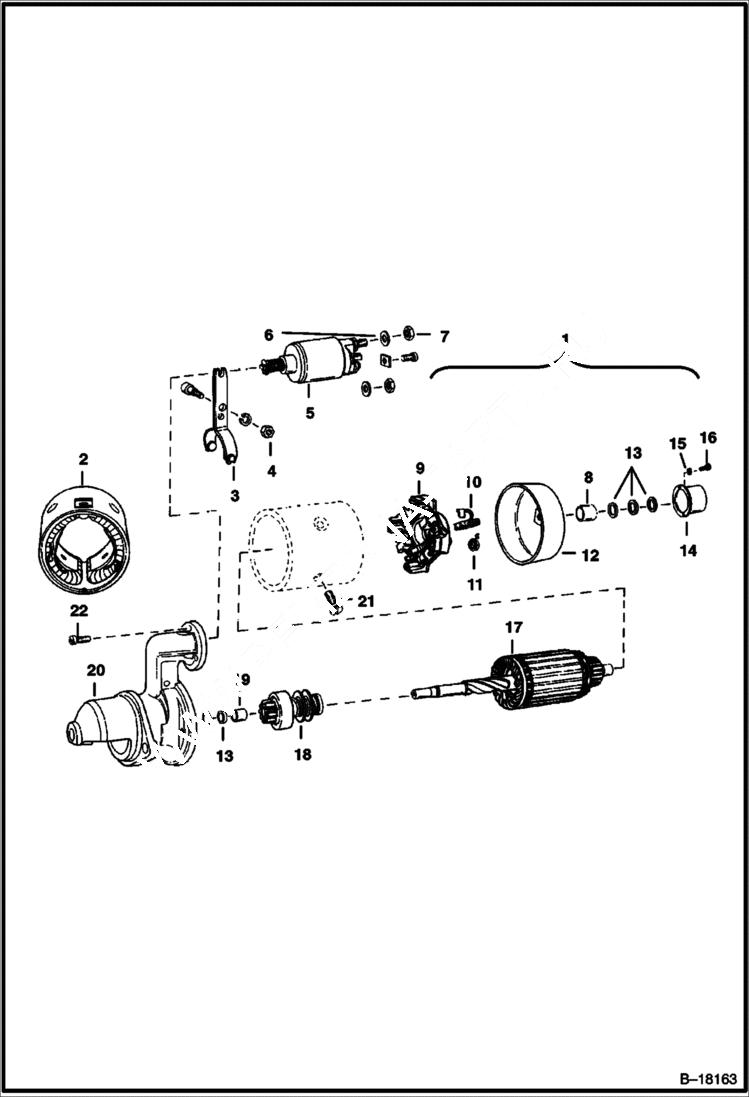

Запчасти Bobcat 700s STARTER (Bosch 0-001-211-206) ELECTRICAL SYSTEM

1

STARTER See Illustration STARTER/ B17983 NLA - ORDER 6514006 STARTER

2

6513289

COIL

3

6513298

LEVER

4

32DM60

NUT

5

6513296

SOLENOID

6

4E5

WASHER

7

6517902

NUT

8

BUSHING NLA - Was 4148008B - A

9

6513300

PLATE brush

10

6513301

BRUSHES See General Service Bulletin G-006

11

4148015

SPRING

12

6513299

COVER W/Ref. 8

13

6598071

KIT armature hardware

14

6513302

COVER

15

WASHER NLA - Was 9EM00040B - A

16

6517905

SCREW

17

6513292

ARMATURE

18

6513293

DRIVE

19

6513294

BUSHING

20

6513290

HOUSING

21

6513297

SCREW

22

6664479

SCREW
