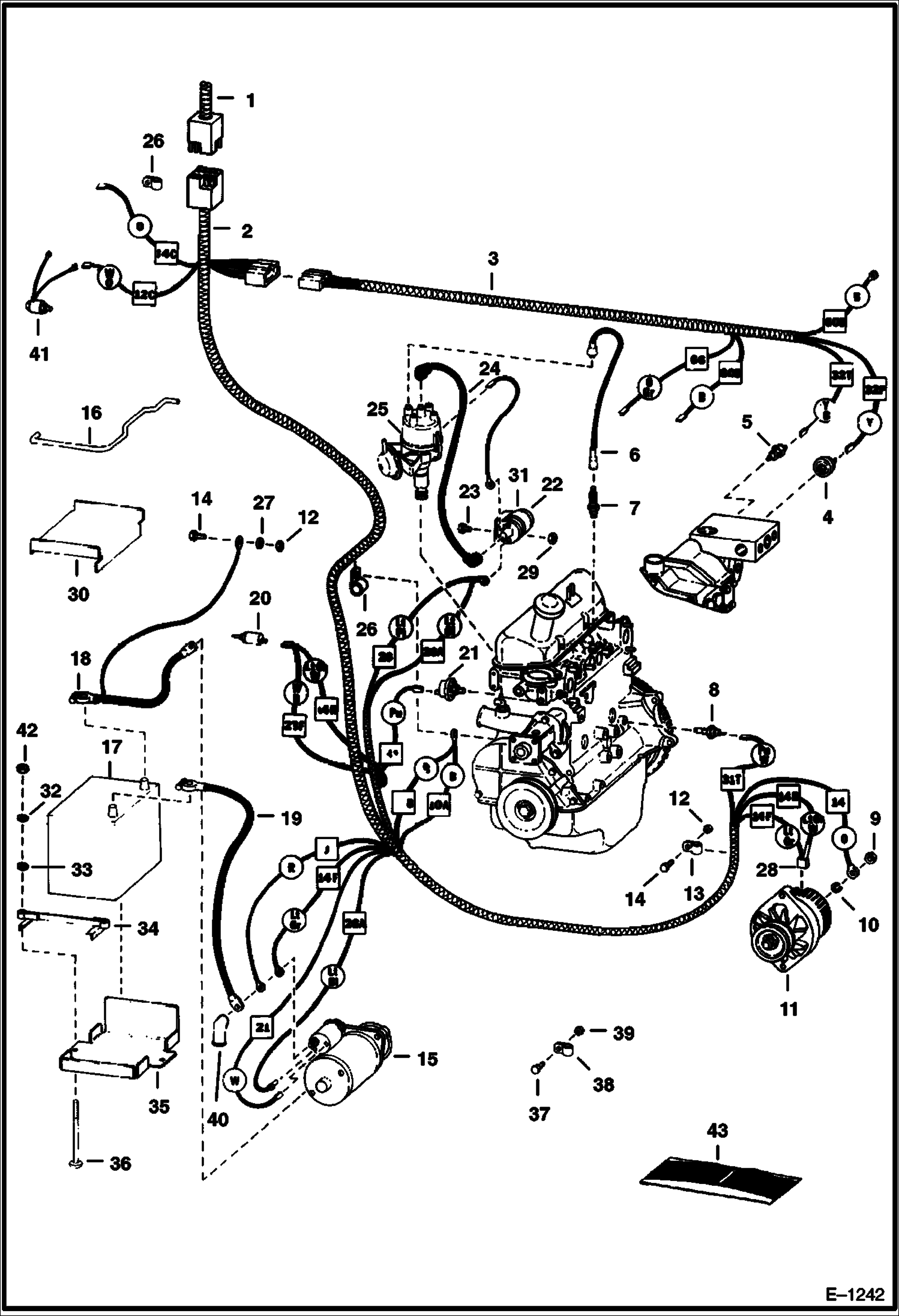

Запчасти Bobcat 700s ENGINE ELECTRICAL ELECTRICAL SYSTEM

1

HARNESS See Illustration CAB ELECTRICAL/ E1188 CAB

2

6558864

HARNESS engine

2

HARNESS engine NLA - engine - Was 6560512 - A

2

6561654

HARNESS engine

3

6557447

HARNESS chassis

4

6557449

SWITCH hydro. pressure

5

6598384

SWITCH hydro. temp.

6

WIRES See Illustration IGNITION SYSTEM/ C2144 NSS - SPARK PLUG

7

6512536

SPARK PLUG

8

6630821

SWITCH engine temperature

9

12D12

NUT

9

1DM6

NUT Was 4DM6 - A

10

12E12

WASHER

11

ALTERNATOR See Illustration ALTERNATOR/ B18159

12

61D5

NUT

13

30H22

CLIP

14

17C512

BOLT 5

15

STARTER See Illustration STARTER/ C2145

16

6553338

BRACKET

17

6674687

BATTERY, DRY 600 AMP Was 6669318 - A

17

6630154

CAP gang - Danger

17

6630155

CAP gang - Poison

17

CAP NLA - tilt-tite - Was 6514898 - A

18

6557451

CABLE ground

19

6557450

CABLE positive

20

6555915

SOLENOID, SHUTOFF FUEL carburetor

21

6631010

SWITCH, PRESS OIL ENG eng. oil pressure

21

19F1

BUSHING

22

881097

COIL ASY

23

10C512

BOLT Was 6553808 - A

24

WIRE See Illustration IGNITION SYSTEM/ C2144 NSS - COIL

25

DISTRIBUTOR See Illustration IGNITION SYSTEM/ C2144

26

30H46

CLIP

27

6E5

WASHER

28

3675725

DIODE

29

6512894

NUT

30

BATTERY NLA - Was 6557794 - A

31

BRACKET NLA - Was 6512914 - A

32

59D5

NUT 5

33

25E15

WASHER

34

7024123

CLAMP Was 6563462 - A

35

6558826

MOUNT

36

6569623

BOLT

37

17C614

BOLT

38

30H24

CLIP

39

61D6

NUT 5

40

6560172

COVER

41

7024822

SOLENOID, FUEL Was 6559117

42

46D5

NUT

43

KIT See Illustration WIRE HARNESS CONNECTOR/ A2765 NLA - connector - Was 6563326 - A
