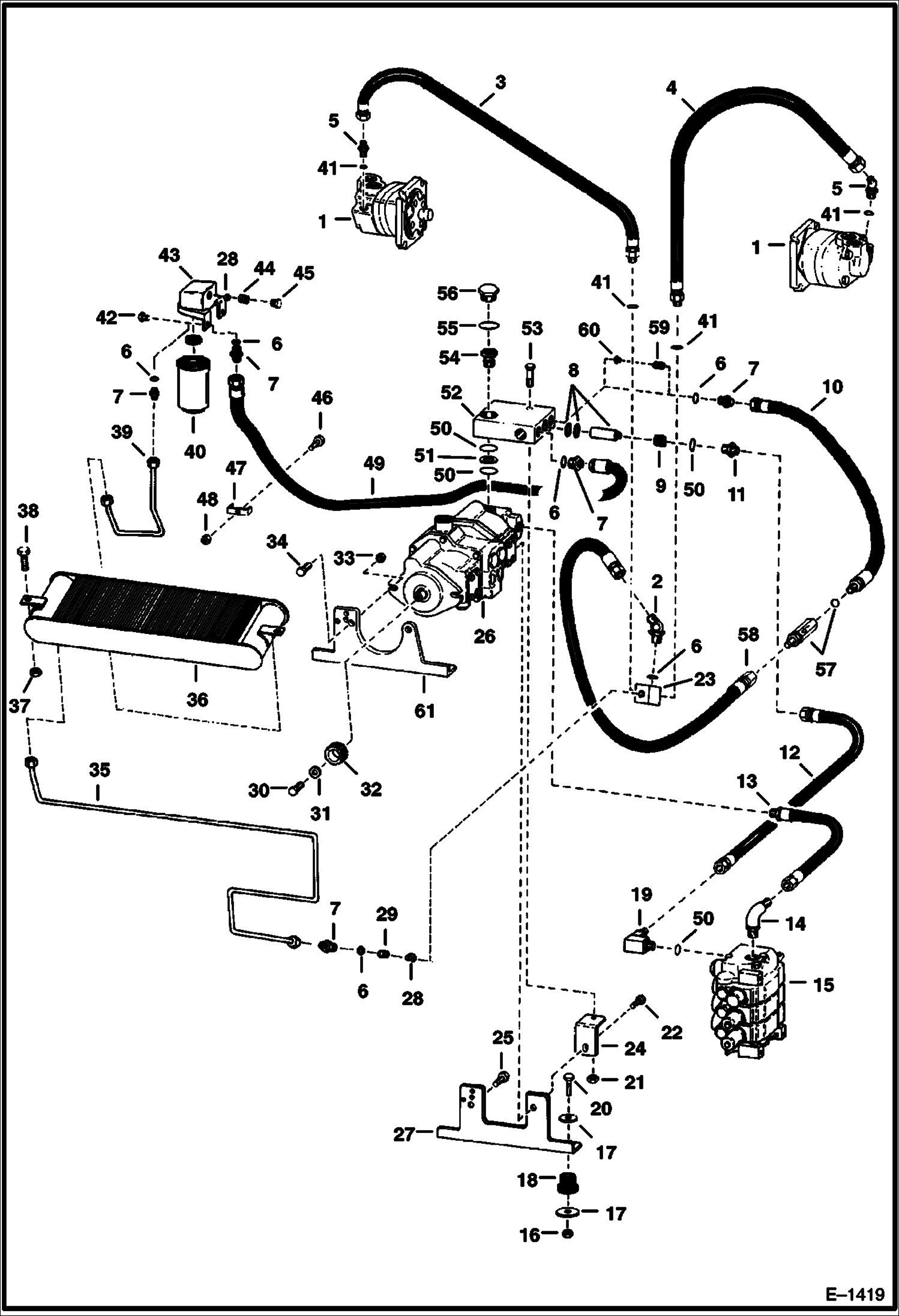

Запчасти Bobcat 700s HYDROSTATIC CIRCUITRY HYDROSTATIC SYSTEM

1

MOTOR See Illustration HYDROSTATIC MOTOR/ D1443

2

18K7

FITTING W/Ref. 6

3

6560935

HOSE

4

HOSE NLA - Was 6560936 - A

5

18K5

ELBOW W/Ref. 41

6

79K10

O RING 10

7

15K7

FITTING W/Ref. 6

8

6558357

FILTER See BTI186 W/Seals

9

617904

SPRING

10

6558857

HOSE

10

6562618

HOSE

11

1303485

CONNECTOR W/Ref. 50

12

1317456

HOSE ASY

13

6559198

HOSE

14

17K7

ELBOW W/Ref. 6

15

VALVE See Illustration HYDRAULIC CONTROL VALVE/ C2421

16

81D8

NUT

17

WASHER NLA - Was 784145B - A

18

6560633

DAMPENER shock

19

ELBOW NLA - W/Ref. 50 - Was 17KB001012B - A

20

17C836

BOLT

21

61D6

NUT 5

22

17C820

BOLT

23

BLOCK NLA - Was 6558769 - A

24

6557724

BRACKET

25

17C816

BOLT

26

PUMP See Illustration HYDROSTATIC PUMP/ D1392 HYDRO.

27

6569553

BRACKET

28

6515078

POPPET

29

SPRING NLA - Was 6559895 - A

30

BOLT NLA - allen head - Order Ref. 30 & 31

30

18C616

BOLT 5 hex. head

31

WASHER NLA - Order Ref. 30 & 31

31

616783

WASHER

32

6540655

ADAPTER

33

6512896

NUT

34

17C824

BOLT 5

35

TUBE NLA - Was 6559003 - A

36

6560954

OIL COOLER

37

57D6

NUT 5

38

84G3716

SCREW 5

39

6557467

TUBE

40

6515541

ELEMENT

41

79K6

O RING 10

42

84G3712

BOLT 5

43

FILTER HEAD NLA - Order 6564877 head and 6661248 filter - Was 6563339 - A

44

6553897

SPRING

45

6561811

PLUG W/Ref. 6

46

17C528

BOLT

47

6502203

CLAMP

48

91D5

NUT 5 Was 81D000005B - A

49

6560213

HOSE

50

79K16

O RING 10

51

6557802

WASHER

52

BLOCK NLA - Was 6558359 - A

53

17C640

BOLT 5

54

6560137

RETAINER

55

79K24

O RING 10

56

6553899

PLUG

57

6562091

VALVE

58

595033

HOSE

59

6559896

SPRING

60

6515078

POPPET

61

6557463

MOUNT
