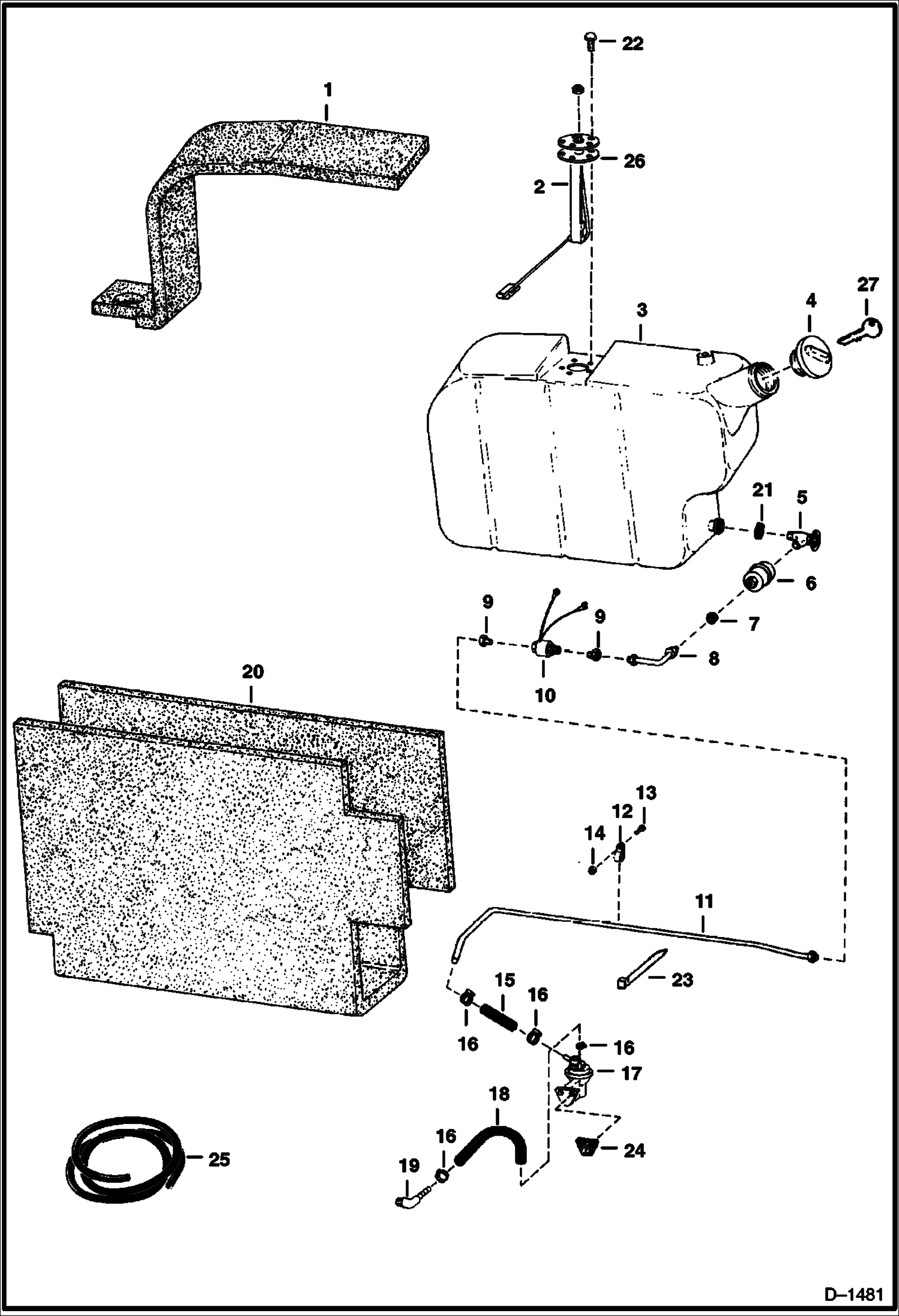

Запчасти Bobcat 700s FUEL SYSTEM MAIN FRAME

1

6555909

INSULATION

2

SENDER NLA - fuel - Was 6560169 - A

3

TANK NLA - Order 6560211 tank - Was 6557743 - A

3

TANK NLA - Was 6560211 - A

4

6632468

CAP Was 6555717 - A

4

CAP NLA - locking - Code GC020 - W/Ref. 27 - Was 6635877 - A

4

6662770

CAP locking - Code PK510 - W/Ref. 27

5

6512138

VALVE

6

6512106

ELEMENT

7

GROMMET Was 565073 - A

8

6559152

TUBE

9

CONNECTOR NLA - Was 59F000004B - A

10

7024822

SOLENOID, FUEL Was 6559117

11

6557246

TUBE

11

TUBE NLA - Was 6559151 - A

12

30H19

CLIP

13

17C512

BOLT 5

14

85D5

NUT 5

15

HOSE NLA - 8'' (203,2 mm) long - Order Ref. 25

16

42HS04

CLAMP, HOSE Was 6515575 - A

17

6512518

PUMP, FUEL

18

HOSE NLA - 6'' (152,4 mm) long - Order Ref. 25

19

6515156

CONNECTOR

20

6555908

INSULATION

21

42HS8

CLAMP Was 6514005 - A

22

85G1008

SCREW

23

6610510

TIE cable - Was 1715312B - A

24

6512519

GASKET

24

6660165

GASKET Spacer

25

6577821

HOSE bulk - sold per foot - Was 672221 - A

26

6630972

GASKET

27

6654374

KEY Code GC020

27

6587458

KEY Code PK510
