Запчасти Bobcat 700s AIR BLOWER (Deutz 511) POWER UNIT

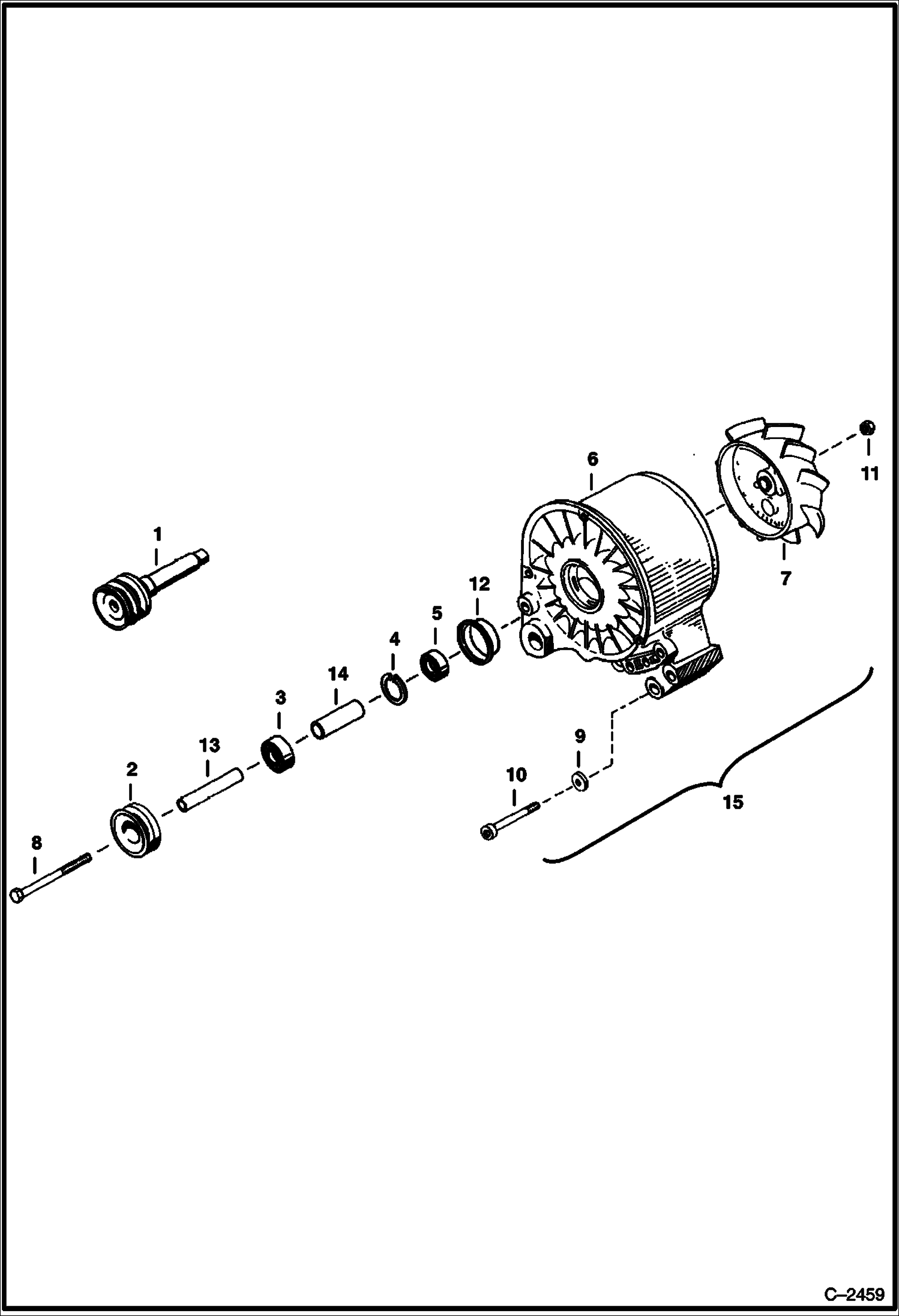

Схема запчастей Bobcat 700s - AIR BLOWER (Deutz 511) POWER UNIT

Артикул

Название

Примечание

Количество

1

PULLEY W/Shaft NLA - Was 6513792 - A

2

6630285

PULLEY

3

6516137

BEARING

3

6516127

BEARING

4

7JM35

SNAP RING

4

RETAINER NLA - Order 7JM-35 - Was 7JM00047B - A

5

6516128

BEARING

5

6516127

BEARING

6

HOUSING NLA - Order 6630283 Blower Assy.

6

6630284

HOUSING

7

6513791

FAN

7

6630281

FAN

8

7CM880

BOLT

8

1CM12135

BOLT

9

6511942

WASHER

10

SCREW NLA - Was 1GM01080B - A

11

1DM8

NUT

11

1DM12

LOCK NUT

12

RING NLA - Was 6598442 - A

13

6630282

BUSHING

14

6630286

SHAFT quill

15

BLOWER ASSY. NLA - Order 6630283 Blower Assy.

15

6630283

BLOWER

Выбрано товаров: 23
