Запчасти Bobcat 700s FRONT COVER (Deutz 511) POWER UNIT

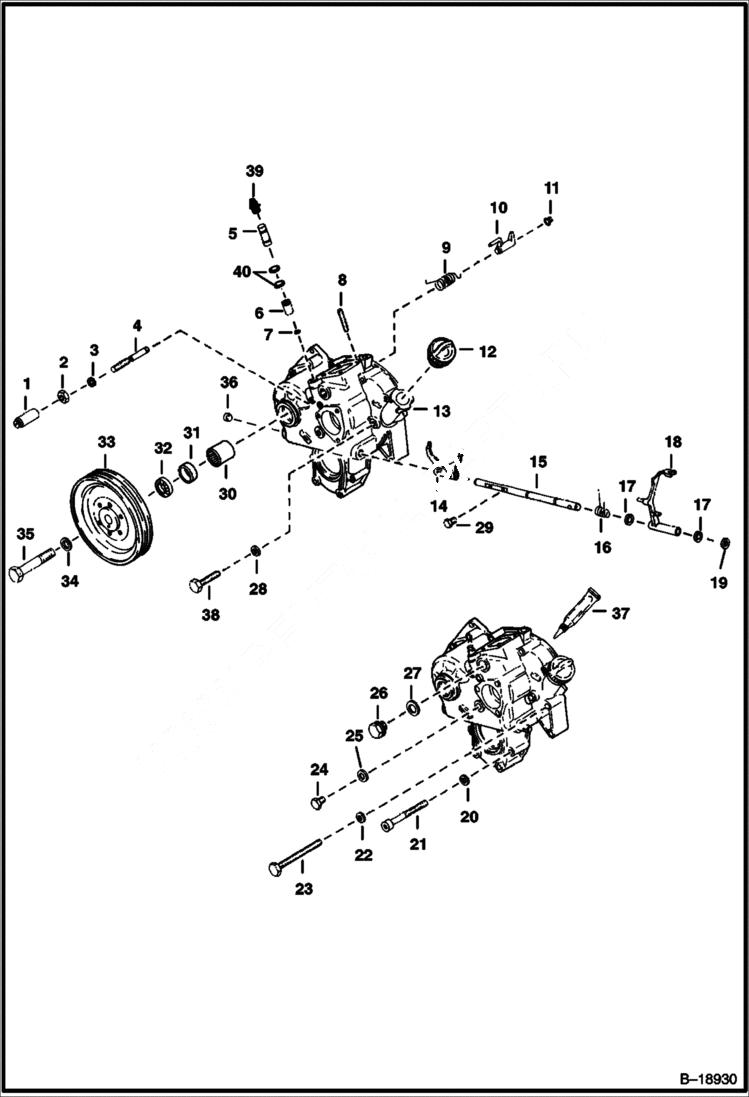

Схема запчастей Bobcat 700s - FRONT COVER (Deutz 511) POWER UNIT

Артикул

Название

Примечание

Количество

1

6511935

CAP rack adjustment

2

32DM80

NUT

3

1FM80115

WASHER

4

6515982

SHAFT

5

PLUNGER See BTI196 NLA - .375''

5

6598488

PLUNGER .25''

6

BUSHING See BTI196 NLA - Use W/.375'' Plunger

6

6598489

BUSHING Use W/.25'' Plunger

7

6515986

O-RING

8

6511936

STUD

9

6515983

SPRING

10

6513894

STOP

11

5JM8

CLIP circlip

12

6513893

OIL CAP oil

13

6598965

COVER front

14

SPRING NLA - governor - Order Ref. 14 & 15

14

6630277

SPRING governor - 4 bolt holes

15

6630280

SHAFT 4 bolt holes

16

6515981

SPRING

17

9JM90

RETAINER

18

6513776

ARM

19

6515988

WASHER

20

6511928

WASHER

21

1GM650

BOLT allen head

22

1FM60100

WASHER

23

1CM670

BOLT

24

1KM16

PLUG

25

6513749

WASHER

26

1KM22

PLUG

27

6515946

WASHER

28

6511942

WASHER

29

6513778

BOLT

30

BEARING NLA - needle - Was 6511606 - A

31

6511607

SEAL shaft

32

6511609

WASHER

33

6513739

PULLEY

34

6516002

WASHER

35

6511608

BOLT

36

3FM00012

PLUG

37

6513891

GASKET tube - Form a Gasket

38

6513780

BOLT

39

6511934

CAP rubber - Was 6562707 - A

40

6598490

SEAL Use W/.25'' Plunger

Выбрано товаров: 43
