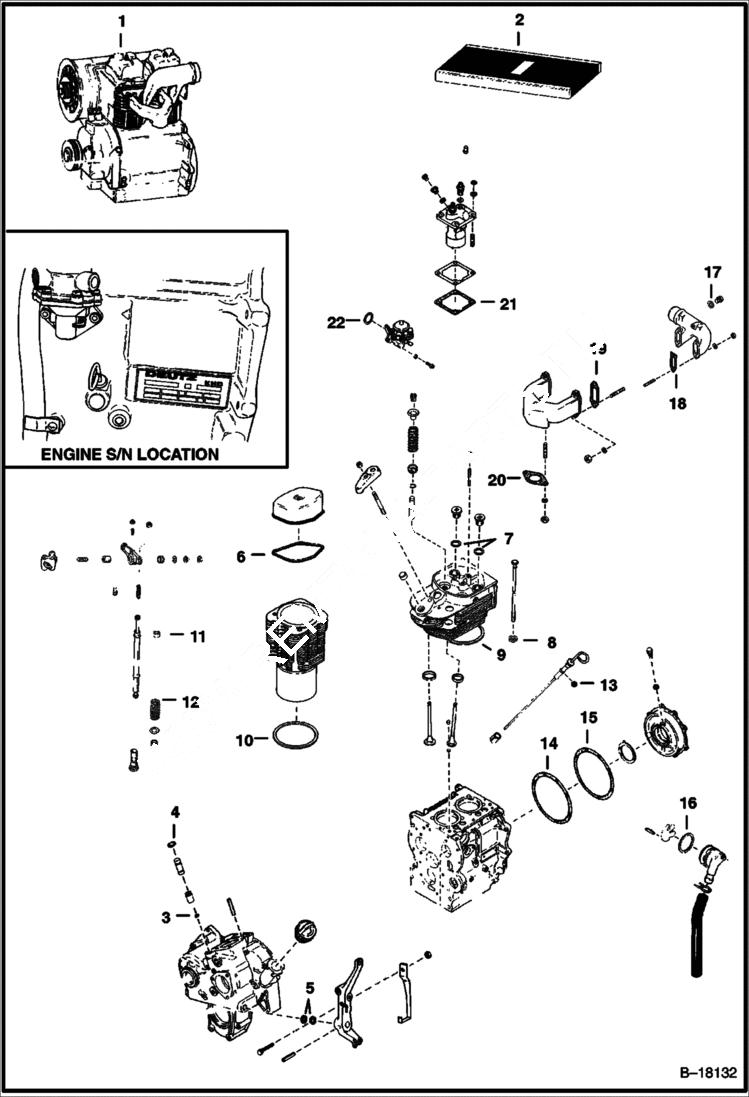

Запчасти Bobcat 700s ENGINE & GASKET KITS (Deutz F2L-511) POWER UNIT

1

ENGINE See BTI168 NLA

1

ENGINE NLA - Includes intake manifold, exhaust manifold, oil filter & fuel lift pump - does not include muffler, air cleaner, fuel filters, alternator, belts, flywheel & starter - Order 6561719 REM

1

6561719REM

ENGINE Includes intake manifold, exhaust manifold, oil filter & fuel lift pump - does not include muffler, air cleaner, fuel filters, alternator, belts, flywheel & starter - Order 6561719 REM

2

6598348

GASKET KIT Complete Overhaul - Ref. 3 - 22

3

6515986

O-RING See Illustration FRONT COVER/ B18930

4

6598490

SEAL See Illustration FRONT COVER/ B18930 WASHER - FOR .25'' (6,4MM) PLUNGER

5

6516185

O-RING See Illustration THROTTLE ARM & GOVERNOR/ D1477

6

3725137

GASKET See Illustration CYLINDER & HEADS/ C2460

7

6513820

WASHER See Illustration CYLINDER & HEADS/ C2460

8

6513818

WASHER See Illustration CYLINDER & HEADS/ C2460

9

6513946

SHIM See Illustration CYLINDER & HEADS/ C2460 HEAD

10

6513844

SHIM See Illustration CYLINDER & HEADS/ C2460

11

6513873

SEAL See Illustration CAMSHAFT, VALVE & LIFTER/ C2464

12

6513872

SEAL See Illustration CAMSHAFT, VALVE & LIFTER/ C2464

13

6515986

O-RING See Illustration CYLINDER BLOCK/ D1478

14

6513845

GASKET See Illustration CYLINDER BLOCK/ D1478

15

6513846

GASKET See Illustration CYLINDER BLOCK/ D1478

16

6512622

O-RING See Illustration CYLINDER BLOCK/ D1478

17

2FM22270

WASHER See Illustration AIR INTAKE MANIFOLD/ A2640

18

6513728

GASKET See Illustration AIR INTAKE MANIFOLD/ A2640

19

4103270

GASKET See Illustration EXHAUST MANIFOLD/ A2639

20

6561143

GASKET See Illustration EXHAUST MANIFOLD/ A2639

21

6513806

GASKET See Illustration ENGINE & ATTACHING PARTS/ B18927

22

6516118

O-RING See Illustration ENGINE & ATTACHING PARTS/ B18927 PIERBURG PUMP

22

6658090

O-RING See Illustration ENGINE & ATTACHING PARTS/ B18927 IMSA PUMP
