Запчасти Bobcat 700s UNIVERSAL JOINT (Deutz 511) POWER UNIT

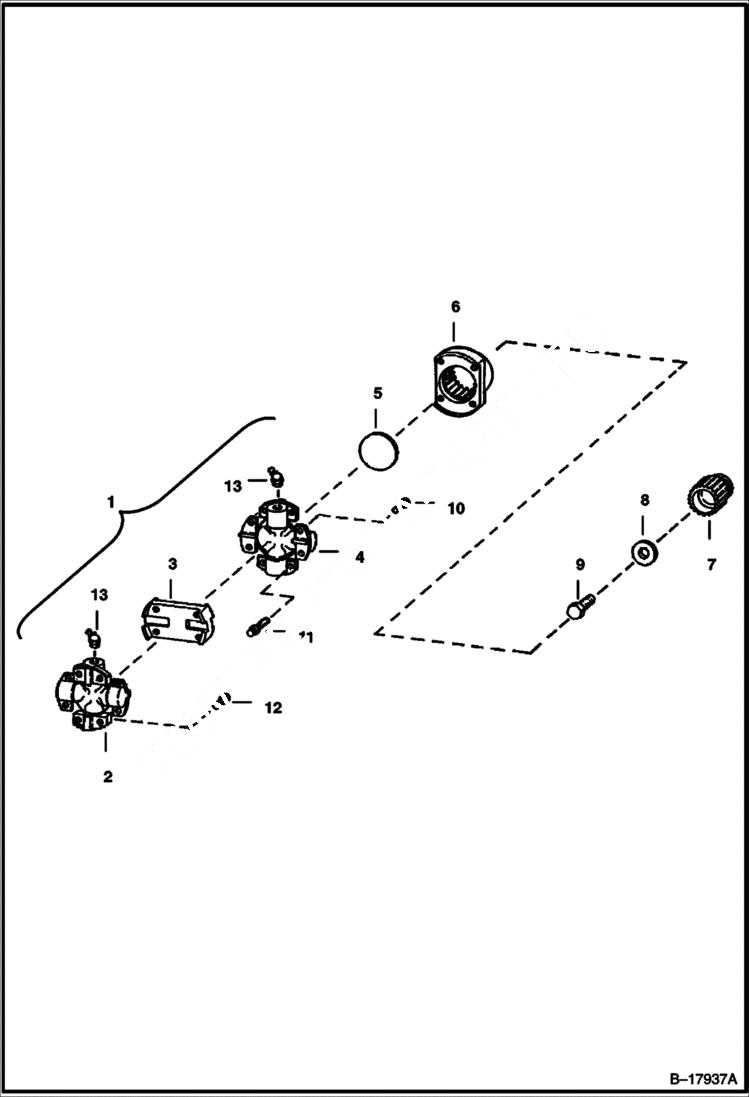

Схема запчастей Bobcat 700s - UNIVERSAL JOINT (Deutz 511) POWER UNIT

Артикул

Название

Примечание

Количество

1

6598347

U-JOINT Ref 2-4, 9 & 12

2

6598303

SPIDER rear

3

5202123

COUPLING

4

6598304

SPIDER front

5

12F114

PLUG

6

6557893

SLIP YOKE slip - 1.875'' (47,6 mm) - W/Ref. 13

6

6562960

YOKE, POWER TRANSFER slip - 2.75'' (69,8 mm) - W/Ref.13

7

6540655

ADAPTER

7

7106572

ADAPTER, SHAFT Was 6558924 - A

8

WASHER NLA - Order 616783 washer & 18C616 bolt

8

616783

WASHER

9

BOLT NLA - allen head - Order 616783B washer & 18C616 bolt

9

18C616

BOLT 5

10

94G524

BOLT 5

11

94G516

BOLT 5

12

94G512

BOLTS 5

13

11H25

FITTING10

Выбрано товаров: 17
