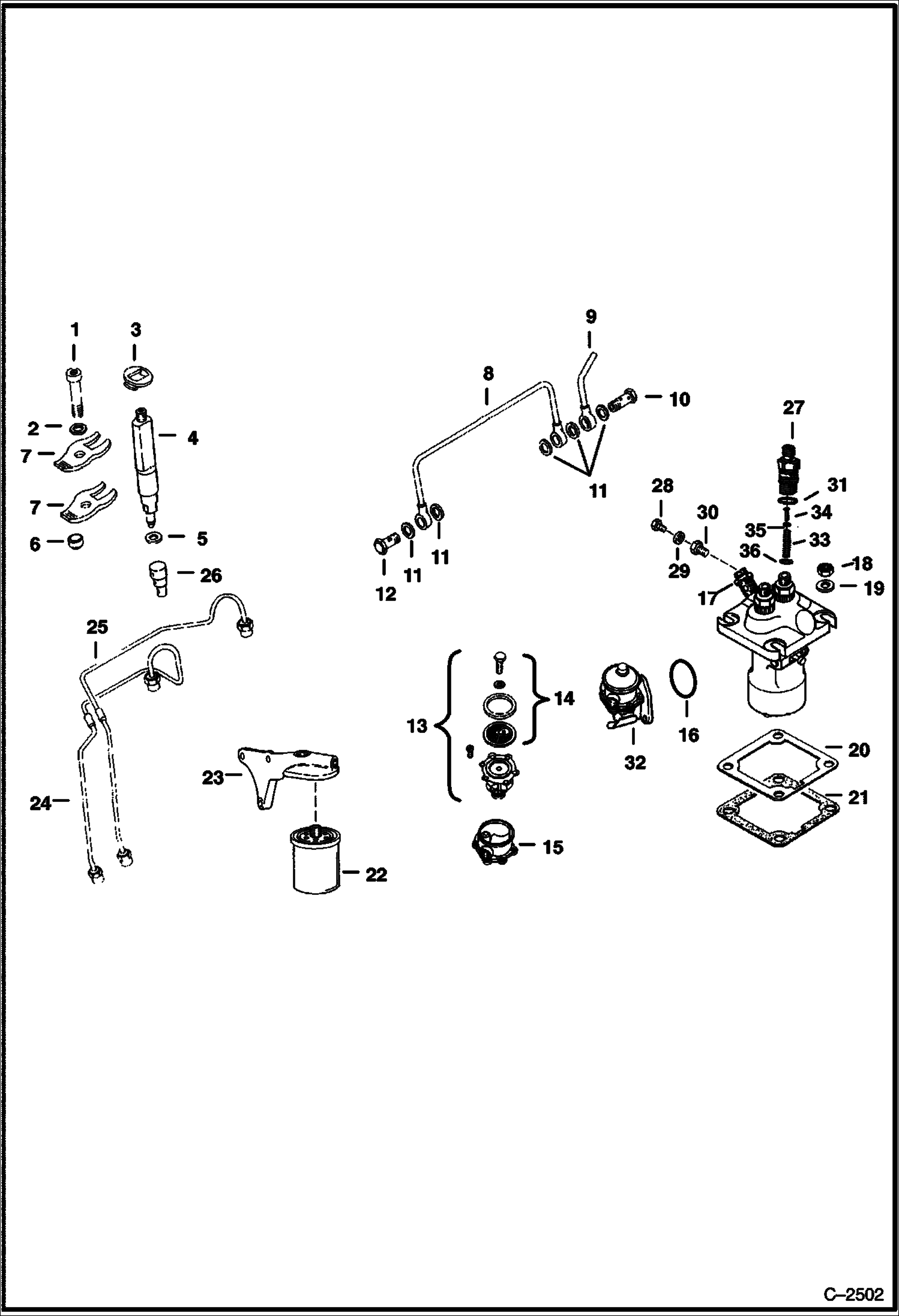

Запчасти Bobcat 700s FUEL SYSTEM (Deutz 411) POWER UNIT

1

3GM1050

SCREW Was 4GM01050B - A

2

6515969

WASHER

3

CAP NLA - Was 6511840 - A

4

INJECTOR NLA - Was 6511839 - A

5

6664183

WASHER Was 6511938 - A

6

6511616

WASHER

7

YOKE NLA - Was 6511363 - A

8

6512616

TUBE

9

6512615

TUBE

10

6512631

BOLT banjo

11

1FM80115

WASHER

12

6555923

BOLT banjo

13

REPAIR KIT NLA - For Pierburg Pump - Was 6516116 - A

13

6658088

REPAIR KIT For Imsa Pump

14

6516117

REPAIR KIT For Pierburg Pump

14

6658089

REPAIR KIT For Imsa Pump

15

6516115

COVER top

16

6516118

O-RING

17

6512628

PUMP injection

18

1DM8

NUT

19

6513807

WASHER Was 6511613 - A

20

6513808

SHIM Was 6511612 - A

21

GASKET NLA - Was 6511355 - A

22

4121609

FILTER

23

HEAD See BTI226 NLA - filter

24

6512614

TUBE

25

6512613

TUBE

26

6512624

NOZZLE

27

6599477

ADAPTER

28

6599475

PLUG bleeder

29

6599474

PLUG

30

6599476

WASHER

31

6518186

WASHER

32

FUEL PUMP NLA - Pierburg Pump - Was 6513747 - A

32

6658087

FUEL PUMP For Imsa Pump

33

6669373

SPRING

34

6669387

ADAPTER

35

6669388

WASHER

36

6669389

WASHER
