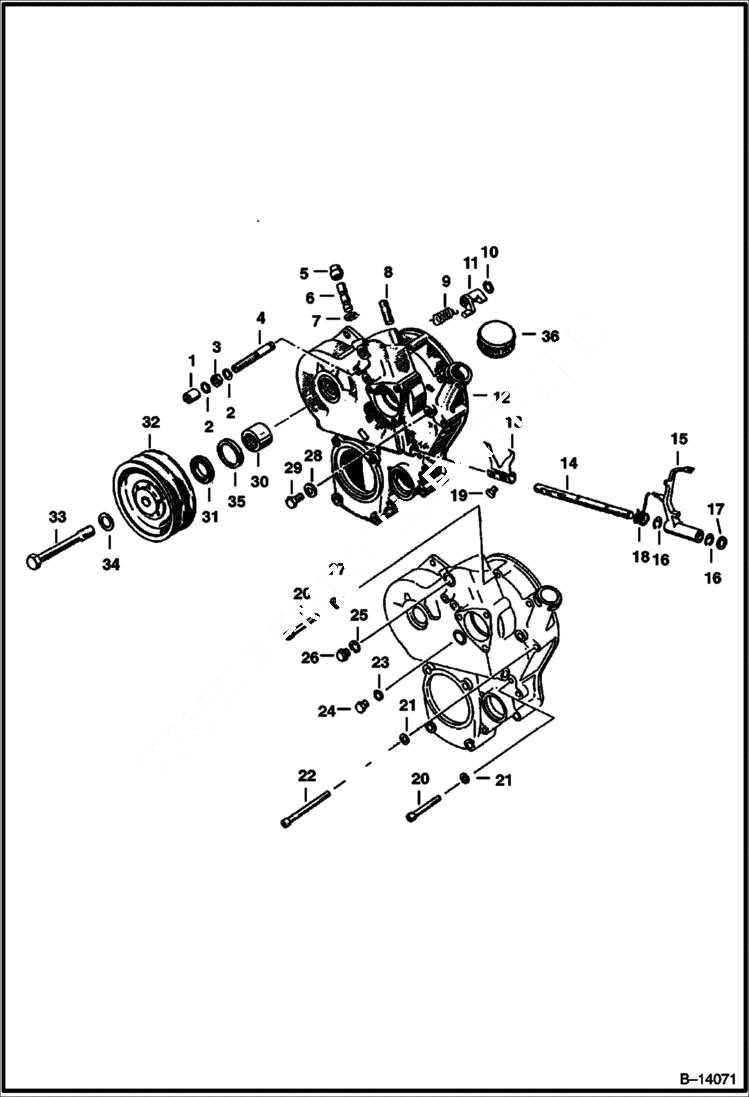

Запчасти Bobcat 700s FRONT COVER (Deutz 411) POWER UNIT

1

6511935

CAP rack adjustment

2

1FM80115

WASHER

3

32DM80

NUT

4

6515982

SHAFT

5

6511934

CAP rubber - Was 6562707 - A

6

PLUNGER See BTI196 NLA - excess fuel

7

6515986

O-RING

8

6511936

STUD

9

6515983

SPRING

10

5JM8

CLIP circlip

11

6513894

STOP spring - Was 6515984 - A

12

COVER NLA - front - Was 6511334 - A

13

6516017

SPRING governor - Was NLA - A

14

6515987

SHAFT Was 6630280 - A

15

6511832

ARM

16

9JM90

RETAINER

17

6515988

WASHER

18

6515981

SPRING

19

1CM610

BOLT Was 4CM610 - A

20

1GM650

BOLT allen head

21

6511928

WASHER

22

6513811

BOLT allen head - Was 1GM00660B - A

23

2FM16220

WASHER

24

1KM16

PLUG

25

6515946

WASHER

26

1KM22

PLUG

27

1FM60100

WASHER

28

6511942

WASHER

29

1CM818

BOLT Was 4CM818 - A

30

BEARING NLA - needle - Was 6511606 - A

31

6511609

WASHER

32

PULLEY NLA - Was 6511336 - A

33

6511608

BOLT

34

6516002

WASHER

35

6511607

SEAL shaft

36

6511335

CAP
