Запчасти Bobcat 700s THROTTLE (Deutz 411) POWER UNIT

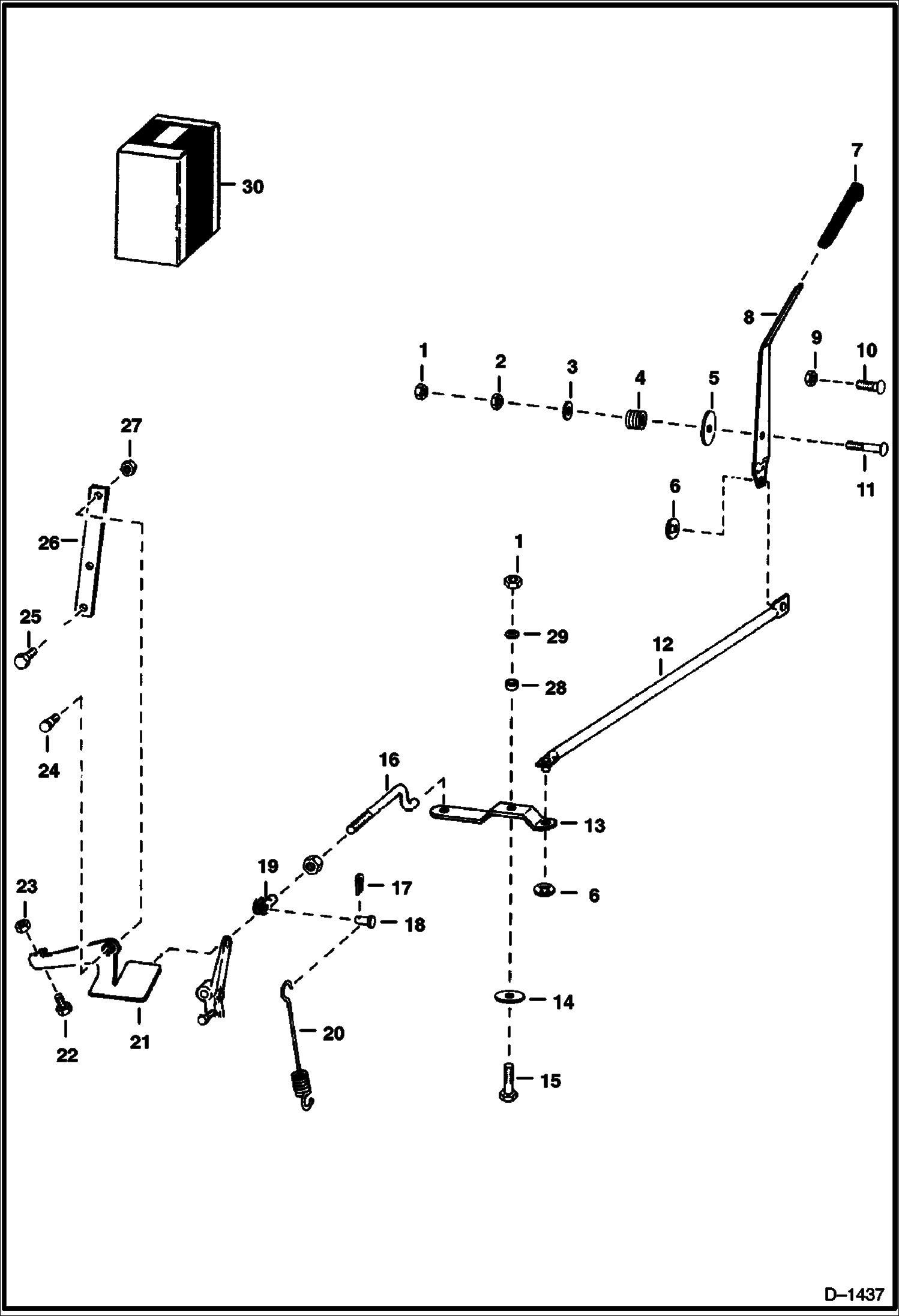

Схема запчастей Bobcat 700s - THROTTLE (Deutz 411) POWER UNIT

Артикул

Название

Примечание

Количество

1

81D6

NUT

2

61D6

NUT 5

3

6505623

WASHER

4

6503387

SPRING

5

6546122

GASKET

6

PUSH NUT NLA - Was 6519255 - A

7

6553557

GRIP

8

6563940

LEVER

9

55D6

NUT Was 6599334 - A

10

37C616

BOLT Was 6514537 - A

11

7C632

BOLT

12

6558314

ROD

13

6560847

LEVER

14

872229

WASHER

15

84G3716

SCREW 5

16

6558203

ROD

17

1F208

PIN

18

1304227

PIN

19

2J4200

CLEVIS

20

SPRING NLA - 11.5'' (292.1mm long) - Was 6558439 - A

20

SPRING NLA - 11.0'' (279,4 mm) long - Order Ref. 30

21

LEVER NLA - Was 6557790 - A

22

17C416

BOLT

23

61D4

NUT 5

24

1312710

SCREW

25

1CM820

BOLT Was 4CM820 - A

26

6547547

BRACKET

27

61D5

NUT

28

6544654

BUSHING

29

6512913

WASHER spring

30

KIT See Illustration THROTTLE/ C2463 NLA - throttle - Was 6562178 - A

Выбрано товаров: 31
