Запчасти Bobcat 700s STARTER (Delco 1998376) ELECTRICAL SYSTEM

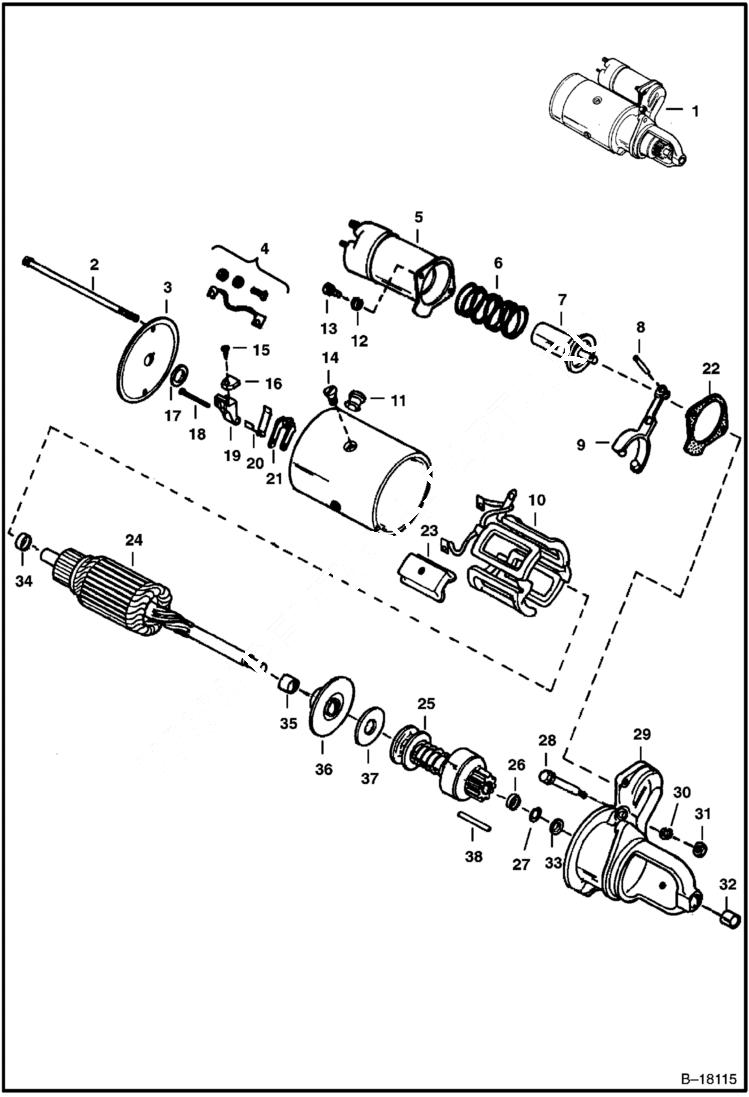

Схема запчастей Bobcat 700s - STARTER (Delco 1998376) ELECTRICAL SYSTEM

Артикул

Название

Примечание

Количество

1

STARTER See Illustration STARTER/ D2119 NLA - ORDER 6651664 STARTER - WAS 6630180 - A

1

6630180REM

STARTER remanufacture

2

6630404

BOLT

3

FRAME NLA - W/Ref. 34 - Was 999460B - A

4

6511627

HOLDER brush support package

5

6599449

SOLENOID

6

888968

SPRING Was 906910B - A

7

6658903

PLUNGER Was 6630417 - A

8

PIN NLA - Was 999472B - A

9

896126

LEVER

10

6630407

COIL field

11

GROMMET NLA - Was 898131B - A

12

WASHER NLA - Was 25E000004B - A

13

SCREW NLA - Was 43G000408B - A

14

859377

SCREW

15

SCREW NLA - ground - Was 65G000810B - A

15

6630415

SCREW insulated

16

6630403

BRUSH

17

WASHER NLA - Was 863995B - A

18

PIN NSS

19

6630402

HOLDER

20

6630406

SPRING brush

21

880603

HOLDER Was 6511626 - A

22

991374

GASKET

23

SHOE POLE NLA - Was 887834B - A

24

6511629

ARMATURE

25

6512872

DRIVE

26

STOP NLA - Was 878608B - A

27

942142

SNAP RING

28

884576

BOLT.

29

6630413

HOUSING W/Ref. 32

30

23E5

L WASHER

31

7D5

NUT

32

860669

BUSHING

33

COLLAR NLA - Was 898127B - A

34

874935

BUSHING

35

BUSHING NLA - Was 907828B - A

36

6630411

PLATE center - W/Ref. 35

37

WASHER NLA - Was 878103B - A

38

6630405

DOWEL PIN

Выбрано товаров: 40
