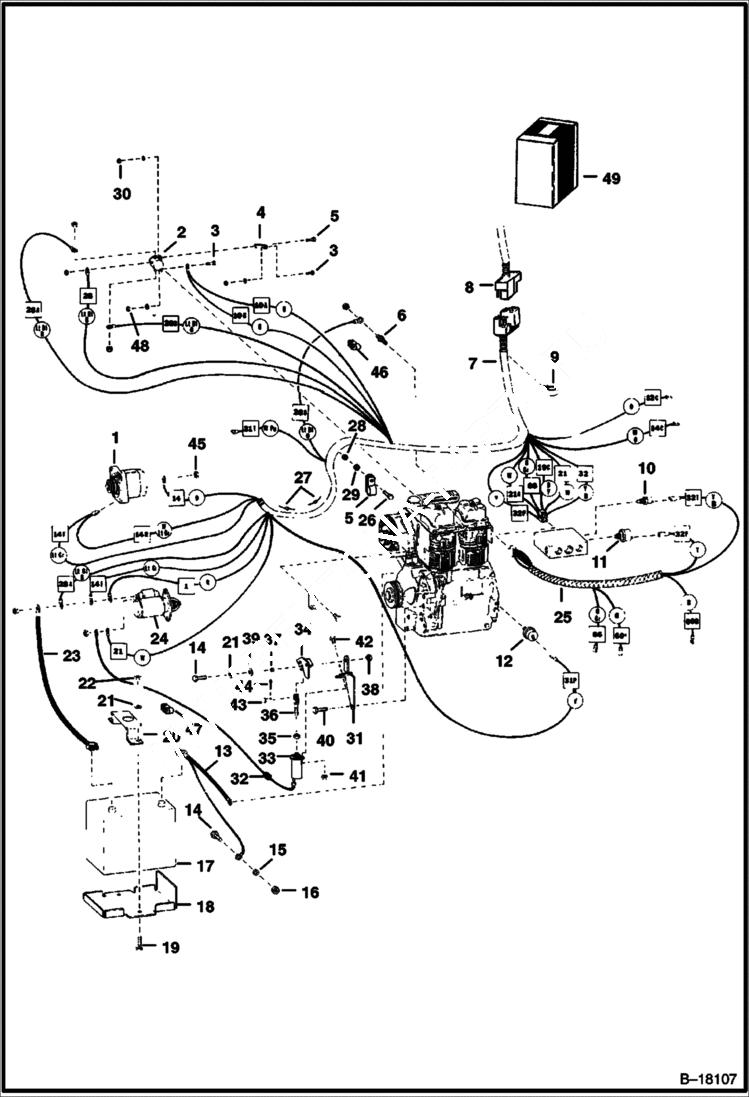

Запчасти Bobcat 700s ENGINE ELECTRICAL (S/N 5006 M 11001 thru 13999) ELECTRICAL SYSTEM

1

ALTERNATOR See Illustration ALTERNATOR/ B18108

2

6659319

SOLENOID pre-heater - Was 6632186 - A

3

17C408

BOLT

4

6558177

BAR

5

30H47

CLIP

6

6511720

PRE-HEATER

7

6559972

HARNESS engine

7

HARNESS NLA - engine - Was 6561651 - A

8

HARNESS See Illustration CAB ELECTRICAL/ B18059 CAB

9

30H46

CLIP

10

6598384

SWITCH hydro. temp. - Was 6511856 - A

11

6557449

SWITCH hydro. pressure

12

6513890

SWITCH engine oil pressure

13

6557451

CABLE ground

14

17C512

BOLT 5

15

WASHER NLA - Was 12E000005B - A

16

61D5

NUT

17

6674687

BATTERY, DRY 600 AMP See BTI165 Was 6669318 - A

17

6630154

CAP gang - Danger

17

6630155

CAP gang - Poison

17

CAP NLA - tilt type - Was 6514898 - A

17

6665031

BATTERY Was 6568707 - A

17

6630153

BATTERY CAP battery

18

6558826

MOUNT battery

18

6561733

MOUNT battery

19

6569623

BOLT

19

BOLT NLA - Order 6569203, clamp & 6569623, bolt - Was 6562473 - A

20

BRACKET NLA - battery - Order 6563462 Clamp - Was 6558850 - A

20

BRACKET NLA - Order 6563462 Clamp & (2) of 6569623 Bolt, Ref. 19 - Was 6561734 - A

21

25E15

WASHER

22

59D5

NUT 5 Was 17D000002B - A

23

6557450

CABLE positive

24

6513391

STARTER See Illustration STARTER/ C2378

25

6557447

HARNESS chassis

26

17C624

BOLT 5

27

3675725

DIODE

28

61D6

NUT 5

29

6E6

WASHER

30

61D4

NUT 5

31

6561055

MOUNT

32

6519484

GROMMET

33

6599638

SOLENOID

34

6561078

LEVER

35

62D4

NUT

36

631551

YOKE

37

6559845

BUSHING

38

85D5

NUT 5

39

6512913

WASHER

40

1CM820

BOLT Was 4CM820 - A

41

85D4

NUT 5

42

93G410

BOLT

43

4F4051

PIN

44

1F212

PIN

45

12D12

NUT

45

1DM6

NUT Was 4DM6 - A

46

30H7

CLAMP

47

30H18

CLAMP

48

83D4

NUT 10

49

KIT See Illustration WIRE HARNESS CONNECTOR/ A2765 NLA - connector - Was 6563326 - A
